3. on selector [S1]: switch on the receiver (1 = ON; 2 = ON),
LED "L1" (red) will start flashing. If it doesn't, press the
"Learned end positions reset" button for at least 3 sec-
onds until "L1" (red) starts flashing
on the remote transmitter: press the [CLOSE
4.
to fully close the patio; the unit will switch off automatically
on the remote transmitter: using buttons [OPEN
5.
] make the patio perform three complete move-
[CLOSE
q
ments to end of travel (e.g.: full opening, full closure and
full opening again).
If all values have been memorised correctly, LED "L1" (red) will
go out and LED "L2" (green) will light.
From now on, the intermediate positions of 33° and 66° in the
opening angle will be available. If the speed setting on the card
is changed or the mechanical length of the travel is changed,
the intermediate positions will no longer correspond. In this
case, the end position should be deleted (press the "Learned
end positions reset" button [S3] for at least 3 seconds) and
repeat Learning of start and end positions.
14 – ENGLISH
CURRENT AND MOTOR FORCE
No. of positions
] button
q
1
] and
2
p
3
4
5
6
7
8
9

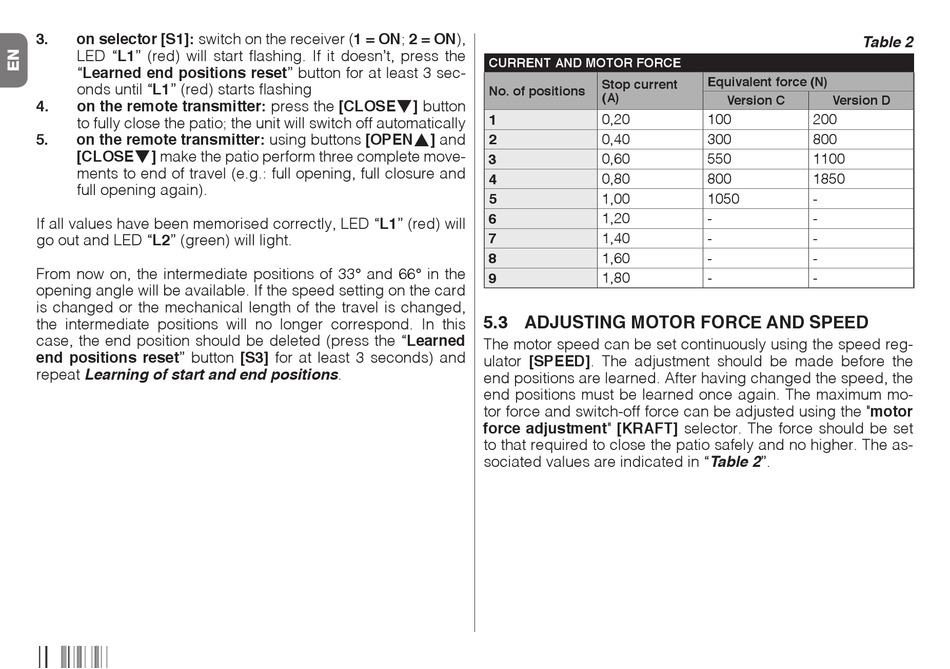

5.3 ADJUSTING MOTOR FORCE AND SPEED

The motor speed can be set continuously using the speed reg-
ulator [SPEED]. The adjustment should be made before the
end positions are learned. After having changed the speed, the
end positions must be learned once again. The maximum mo-
tor force and switch-off force can be adjusted using the "motor
force adjustment" [KRAFT] selector. The force should be set
to that required to close the patio safely and no higher. The as-
sociated values are indicated in "Table 2".
Equivalent force (N)
Stop current
(A)
Version C
0,20 100
0,40 300
0,60 550
0,80 800
1,00 1050
1,20 -
1,40 -
1,60 -
1,80 -
Table 2
Version D
200
800
1100
1850
-
-
-
-
-
