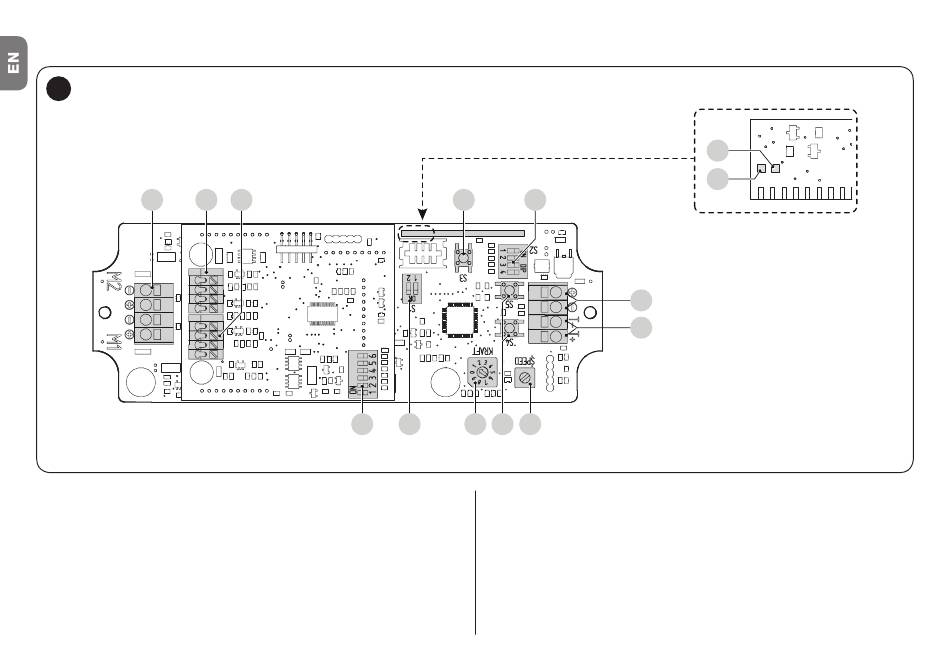

2.1.1 List of parts present on the motor and LED control board

2
A B
A Connections for motors M1 and M2
B 24V output connections
C LED connections
D GREEN LED programming status
E RED LED programming status
F Learned end positions reset button
G Selectors for accessory functions
6 – ENGLISH
C
N M
F G
H
L K J
H 24V power supply input connections
I Connections for external sensors
J Speed limit adjustment
K Manual command buttons
L Motor force adjustment
M Motor and LED control board power supply selectors
N LED/TEST channels selector
