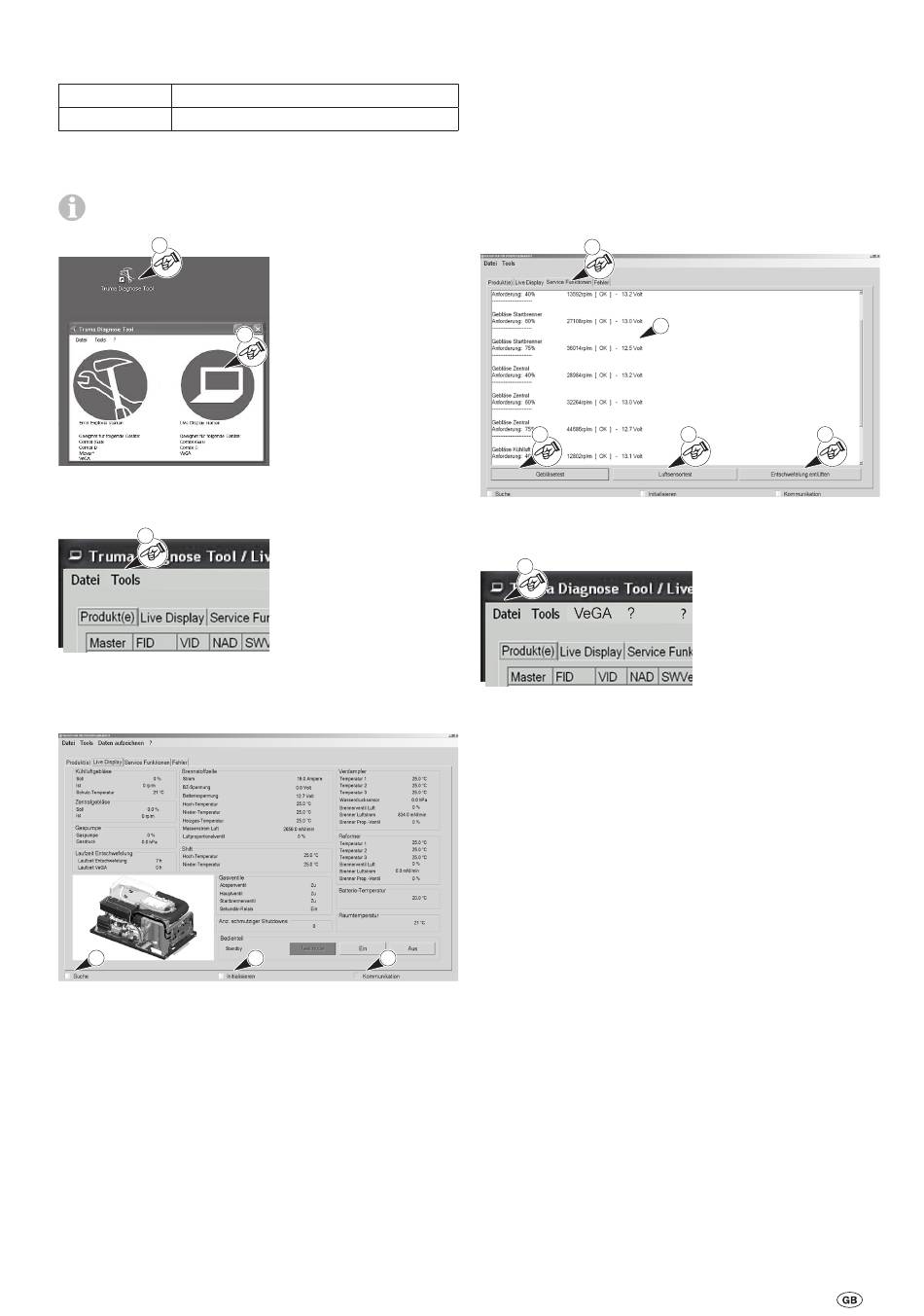

"Live Display" program – VeGA
Prerequisites for operation:
Device
Version of the software in the device
VeGA
all
Start program
The "Error Explorer" program must not be active, it must
be closed first if required.
1
Search for device
1
After a successful search, the operating parameters are
shown in a window.
1
Display the current action
1 Device search.
2 Initialisation of the hardware and software.
3 Communication between the PC and the device.
– Field flashes green – error-free communication.
– Field lit red – interruption.
1 Start the program by
double-clicking the icon
"Truma Diagnose Tool"
on the desktop.
2 Start "Live Display" in
2
the selection window.
1 Open the "Tools" menu
and click "Start" to start
the search.
2
3
Service functions
1 Enable these functions by clicking the "Service functions"
tab.
2 Start the fan test by clicking "Fan test".
3 Start the air sensor test by clicking "Air sensor test".
4 Bleed the sulphur-removal unit by clicking "Bleed the
sulphur-removal unit".
5 Display the results.
1
VeGA ?
2
End program
1
5
3
4
1 Open the "File" menu
and leave the program
by selecting "Exit".
– Disconnect the diagno-
sis cable from the VeGA.
– The VeGA will switch off
automatically.
– Reconnect the control
panel.
