4.15
GB

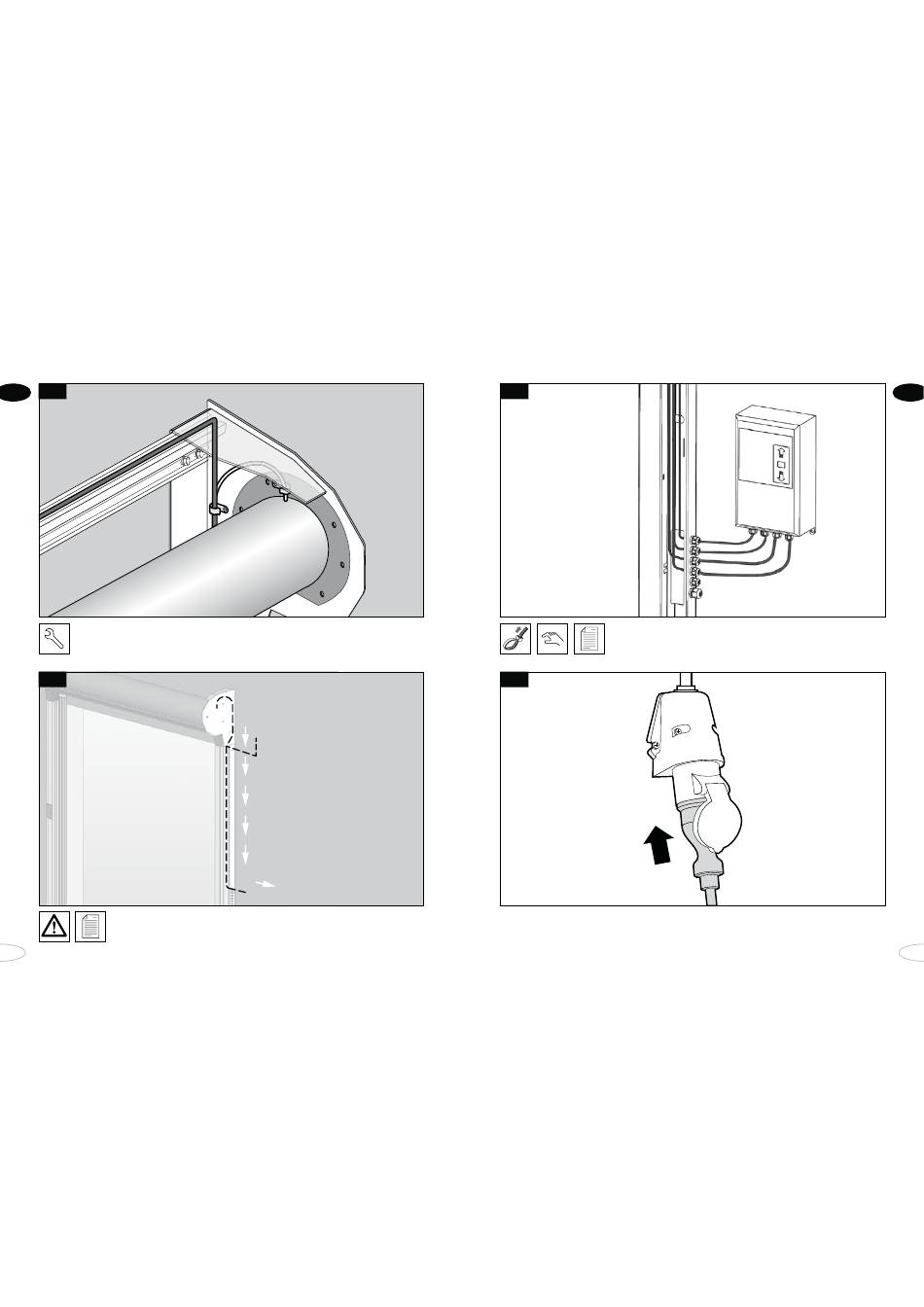

Feed the photocell wiring in the driven column upwards and along the lintel to the drive
side. Feed the cable downwards through the mounting brackets and through the spring
chamber of the column. Make sure that the door panel cannot chafe the cables.
4.16
You can feed the photocell cables and the plug-in drive (1.) via the mounting
bracket through the spring chamber. You can pass the plug-on cable (2.) under
the console into the spring chamber.
16
1.
2.
4.17
Feed the cables through the spring chamber to the recess and to the
swivels and the control box. Connect the cables as indicated in the
supplied Control Manual. Install the control box and the selected
control components the customer wants.
4.18
Connect the power supply and switch on the control.
