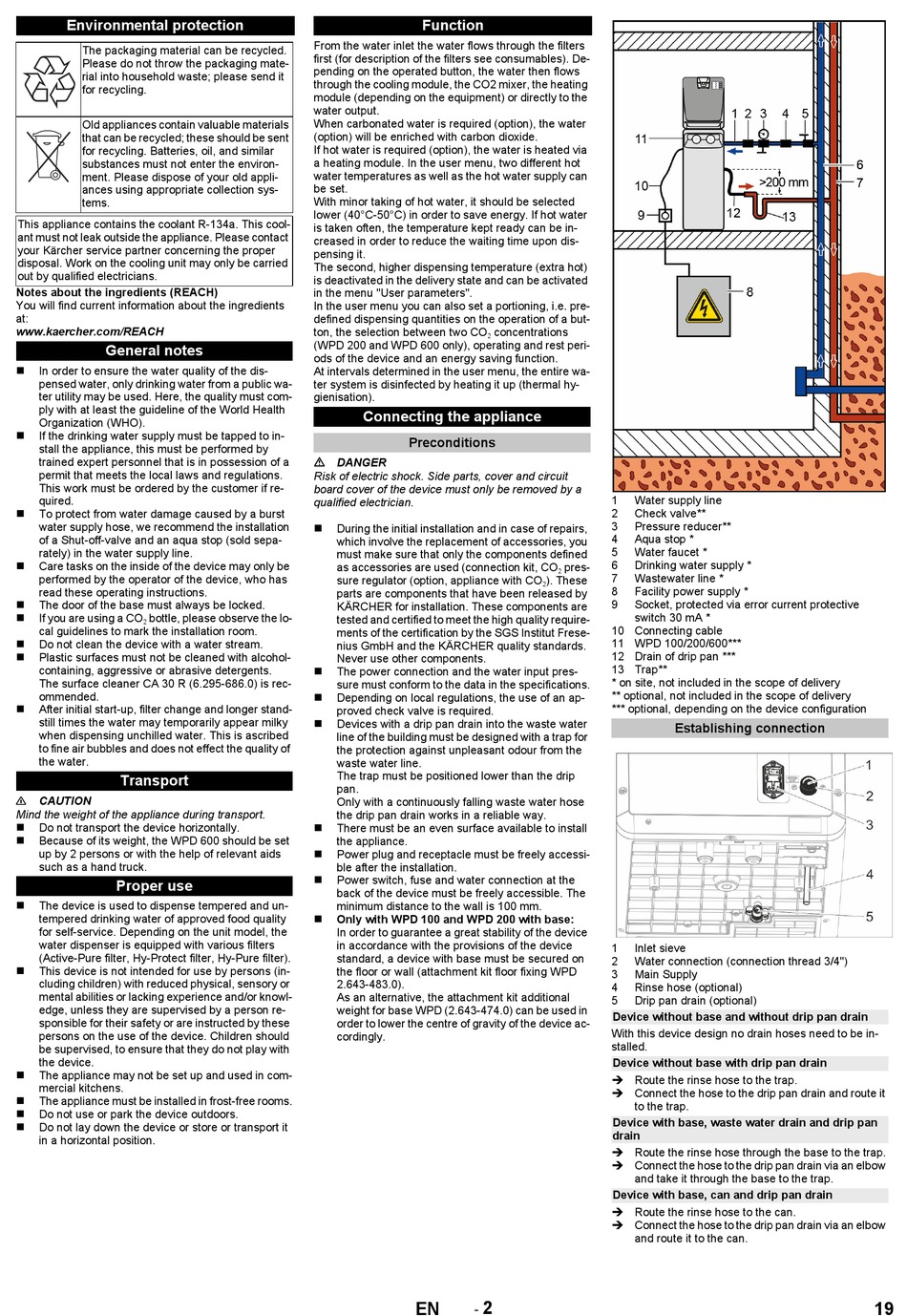

Environmental Protection - Kärcher WPD 100 Advanced Originalbetriebsanleitung

Environmental protection

The packaging material can be recycled.
Please do not throw the packaging mate-
rial into household waste; please send it
for recycling.
Old appliances contain valuable materials
that can be recycled; these should be sent
for recycling. Batteries, oil, and similar
substances must not enter the environ-
ment. Please dispose of your old appli-
ances using appropriate collection sys-
tems.
This appliance contains the coolant R-134a. This cool-
ant must not leak outside the appliance. Please contact
your Kärcher service partner concerning the proper
disposal. Work on the cooling unit may only be carried
out by qualified electricians.
Notes about the ingredients (REACH)
You will find current information about the ingredients
at:
www.kaercher.com/REACH
General notes
 In order to ensure the water quality of the dis-
pensed water, only drinking water from a public wa-
ter utility may be used. Here, the quality must com-
ply with at least the guideline of the World Health
Organization (WHO).
 If the drinking water supply must be tapped to in-
stall the appliance, this must be performed by
trained expert personnel that is in possession of a
permit that meets the local laws and regulations.
This work must be ordered by the customer if re-
quired.
 To protect from water damage caused by a burst
water supply hose, we recommend the installation
of a Shut-off-valve and an aqua stop (sold sepa-
rately) in the water supply line.
 Care tasks on the inside of the device may only be
performed by the operator of the device, who has
read these operating instructions.
The door of the base must always be locked.

 If you are using a CO bottle, please observe the lo-
2
cal guidelines to mark the installation room.
 Do not clean the device with a water stream.
 Plastic surfaces must not be cleaned with alcohol-
containing, aggressive or abrasive detergents.
The surface cleaner CA 30 R (6.295-686.0) is rec-
ommended.
 After initial start-up, filter change and longer stand-
still times the water may temporarily appear milky
when dispensing unchilled water. This is ascribed
to fine air bubbles and does not effect the quality of
the water.
Transport
CAUTION
Mind the weight of the appliance during transport.
 Do not transport the device horizontally.
 Because of its weight, the WPD 600 should be set
up by 2 persons or with the help of relevant aids
such as a hand truck.
Proper use
 The device is used to dispense tempered and un-
tempered drinking water of approved food quality
for self-service. Depending on the unit model, the
water dispenser is equipped with various filters
(Active-Pure filter, Hy-Protect filter, Hy-Pure filter).
 This device is not intended for use by persons (in-
cluding children) with reduced physical, sensory or
mental abilities or lacking experience and/or knowl-
edge, unless they are supervised by a person re-
sponsible for their safety or are instructed by these
persons on the use of the device. Children should
be supervised, to ensure that they do not play with
the device.
 The appliance may not be set up and used in com-
mercial kitchens.
The appliance must be installed in frost-free rooms.

 Do not use or park the device outdoors.
 Do not lay down the device or store or transport it
in a horizontal position.
Function
From the water inlet the water flows through the filters
first (for description of the filters see consumables). De-
pending on the operated button, the water then flows
through the cooling module, the CO2 mixer, the heating
module (depending on the equipment) or directly to the
water output.
When carbonated water is required (option), the water
(option) will be enriched with carbon dioxide.
If hot water is required (option), the water is heated via
a heating module. In the user menu, two different hot
water temperatures as well as the hot water supply can
be set.
With minor taking of hot water, it should be selected
lower (40°C-50°C) in order to save energy. If hot water
is taken often, the temperature kept ready can be in-
creased in order to reduce the waiting time upon dis-
pensing it.
The second, higher dispensing temperature (extra hot)
is deactivated in the delivery state and can be activated
in the menu "User parameters".
In the user menu you can also set a portioning, i.e. pre-
defined dispensing quantities on the operation of a but-
ton, the selection between two CO
(WPD 200 and WPD 600 only), operating and rest peri-
ods of the device and an energy saving function.
At intervals determined in the user menu, the entire wa-
ter system is disinfected by heating it up (thermal hy-
gienisation).
Connecting the appliance
Preconditions
DANGER
Risk of electric shock. Side parts, cover and circuit
board cover of the device must only be removed by a
qualified electrician.
 During the initial installation and in case of repairs,
which involve the replacement of accessories, you
must make sure that only the components defined
as accessories are used (connection kit, CO
sure regulator (option, appliance with CO
parts are components that have been released by
KÄRCHER for installation. These components are
tested and certified to meet the high quality require-
ments of the certification by the SGS Institut Frese-
nius GmbH and the KÄRCHER quality standards.
Never use other components.
 The power connection and the water input pres-
sure must conform to the data in the specifications.
 Depending on local regulations, the use of an ap-
proved check valve is required.
 Devices with a drip pan drain into the waste water
line of the building must be designed with a trap for
the protection against unpleasant odour from the
waste water line.
The trap must be positioned lower than the drip
pan.
Only with a continuously falling waste water hose
the drip pan drain works in a reliable way.
 There must be an even surface available to install
the appliance.
 Power plug and receptacle must be freely accessi-
ble after the installation.
 Power switch, fuse and water connection at the
back of the device must be freely accessible. The
minimum distance to the wall is 100 mm.
 Only with WPD 100 and WPD 200 with base:
In order to guarantee a great stability of the device
in accordance with the provisions of the device
standard, a device with base must be secured on
the floor or wall (attachment kit floor fixing WPD
2.643-483.0).
As an alternative, the attachment kit additional
weight for base WPD (2.643-474.0) can be used in
order to lower the centre of gravity of the device ac-
cordingly.
2
-
EN
concentrations
2
1 Water supply line
2 Check valve**
3 Pressure reducer**
4 Aqua stop *
5 Water faucet *
6 Drinking water supply *
pres-
2
7 Wastewater line *
). These
2
8 Facility power supply *
9 Socket, protected via error current protective
switch 30 mA *
10 Connecting cable
11 WPD 100/200/600***
12 Drain of drip pan ***
13 Trap**
* on site, not included in the scope of delivery
** optional, not included in the scope of delivery
*** optional, depending on the device configuration
1 Inlet sieve
2 Water connection (connection thread 3/4")
3 Main Supply
4 Rinse hose (optional)
5 Drip pan drain (optional)
Device without base and without drip pan drain
With this device design no drain hoses need to be in-
stalled.
Device without base with drip pan drain
 Route the rinse hose to the trap.
 Connect the hose to the drip pan drain and route it
to the trap.
Device with base, waste water drain and drip pan
drain
 Route the rinse hose through the base to the trap.
 Connect the hose to the drip pan drain via an elbow
and take it through the base to the trap.
Device with base, can and drip pan drain
 Route the rinse hose to the can.
 Connect the hose to the drip pan drain via an elbow
and route it to the can.
Establishing connection
19
