4.3 Chimneys and fl ue pipes
• The fireplace can be connected to a chimney and flue
pipe approved for solid fuel fi red appliances with fl ue gas
temperatures specifi ed in «2.0 Technical data".
• The chimney's cross-section must be at least as big as the
fl ue pipe's cross-section. See «2.0 Technical data» when
calculating the correct chimney cross-section.
• Several solid fuel fi red appliances can be connected to the
same chimney if the chimney's cross-section is suffi cient.
• Connection to the chimney must be carried out in
accordance with the installation instructions from the
supplier of the chimney.
• Before making a hole in the chimney the fi replace should
be test-mounted in order to correctly mark the position
of the fi replace and the hole in the chimney. See fi g. 1 for
minimum dimensions.
• Ensure that the fl ue pipe is inclined all the way up to the
chimney.
• Use a fl ue pipe bend with a sweeping hatch that allows it
to be swept.
Be aware of the fact that it is particularly important that
connections have a certain flexibility in order to prevent
movement in the installation leading to cracks.
Chimney draught; See «2.0 Technical data». If the draught is
too strong you can install and operate a fl ue damper to control
the draught.

4.4 Assembly prior to installation

• The product comes ready assembled in two packages:
• Remove the product from the packaging and check for visible
damage and that the control handles work. Lift the ash lip
and service box out of the burn chamber.
• IMPORTANT!: A sheet of foam plastic is placed between
the baffl e and the exhaust defl ector for protection during
transport. Be sure to remove this before using the fi replace
for the fi rst time.
34
4.5 Fitting the soapstone panels

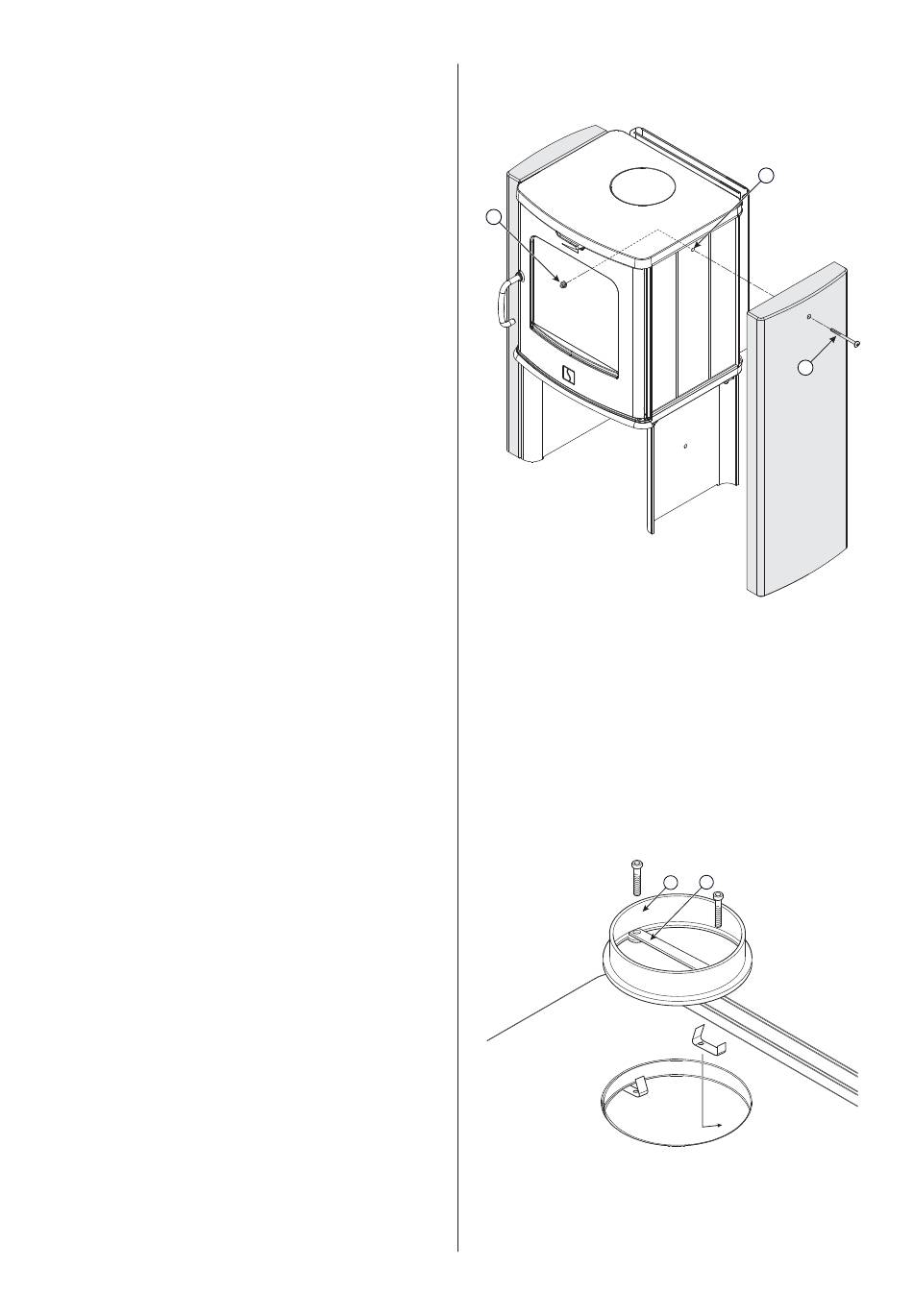

Fig. 2
2
1. Secure the soapstone panels using nuts (Fig. 2-1) and bolts
(Fig. 2-1).
4.6 Smoke outlet
The product has been prepared for a top outlet by the
manufacturer.
Fitting a smoke outlet with a top outlet
Fig. 3
1. Attach the loose smoke outlet (Fig. 3-1) which is inside the
ash pan to the outlet using the retaining clips and screws
from the service package.
2. Screw the safety fi tting (Fig. 3-2) crosswise in the outlet collar
to prevent damage to the baffl e and exhaust defl ector when
sweeping the chimney.
1
2
1 2
