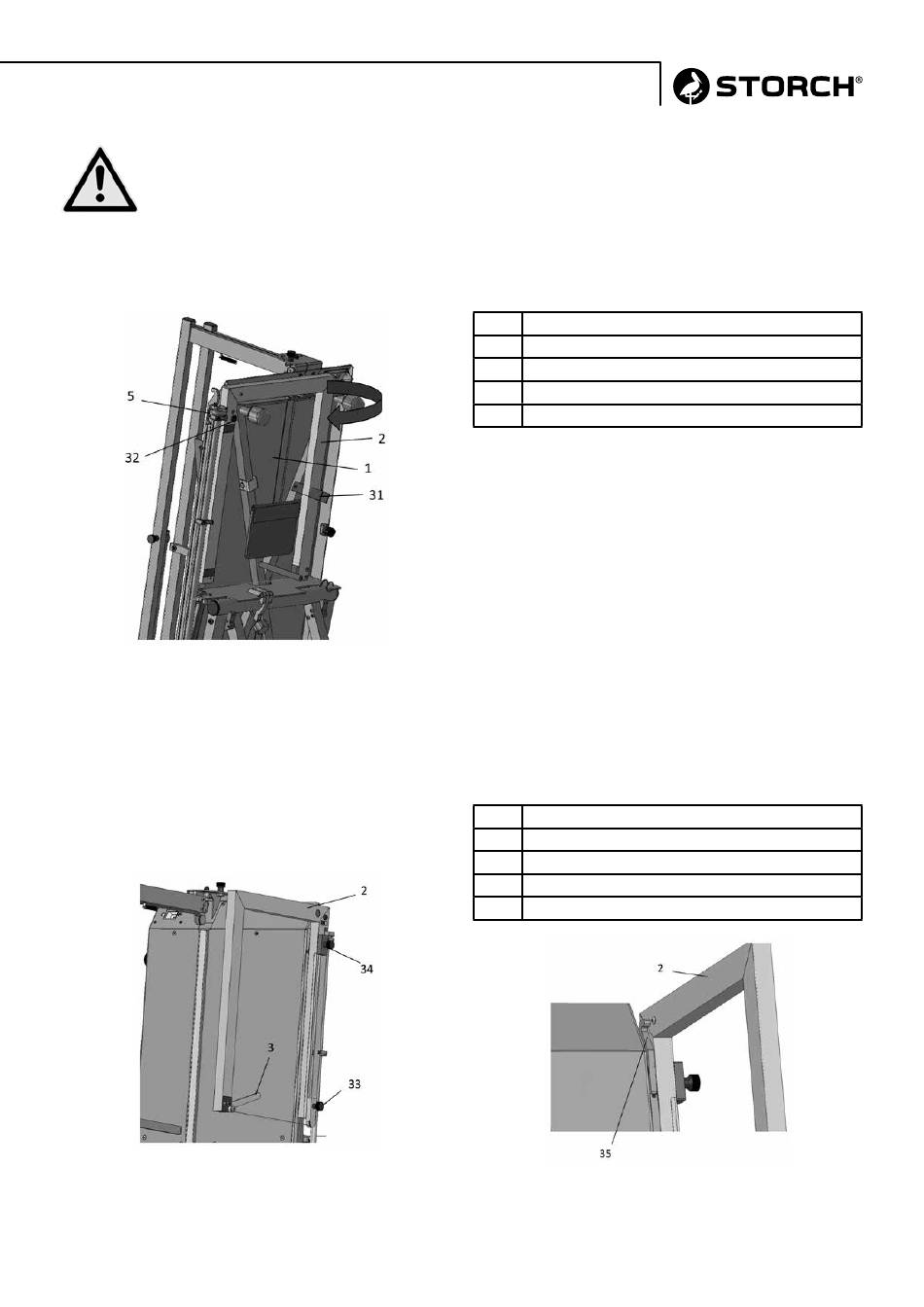

Caution: Make sure that the guide slide on the corner cutter (Pos. 32, Fig. 7) is inserted into the opening provided for it
on the guide rail (Pos. 5, Fig. 7)!
Then pull the corner cutter down slightly until it latches. The corner is now ready for use.
Fig. 7
Commissioning and function corner cutter: working position
The corner cutter is switched on at the on/off switch (Pos. 12, Fig. 1) (rocker to the right). The corner cutter is used to make
L-shaped cuts on openings in the facade (e.g., windows/doors), rafter cut-outs with mitres and cut-outs for polystyrene
anchors. To allow this to happen, the cutting wire on the corner cutter is pushed into the desired position.
Fig. 8
1 Base plate
2 Corner cutter
5 Guide rail corner cutter
31 Fixing strap for corner cutter (transport position)
32 Guide slide corner cutter
2 Corner cutter
3 Mitre tool, corner cutter
33 Corner slider
34 Wire tension slider
35 Trigger for corner cutter
Fig. 9
