Connecting with Digital Interface Equipment

Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual
Interface) standard.

Connect the LCD Monitor to a Computer with a Digital Output

• The RGB 1 IN connector also accepts a DVI-D cable.
• Input TMDS signals conforming to DVI standards.
• To maintain display quality, use a cable with a quality prescribed by DVI standards.
• The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.
• Mode selection, see "DVI MODE" of page 23.

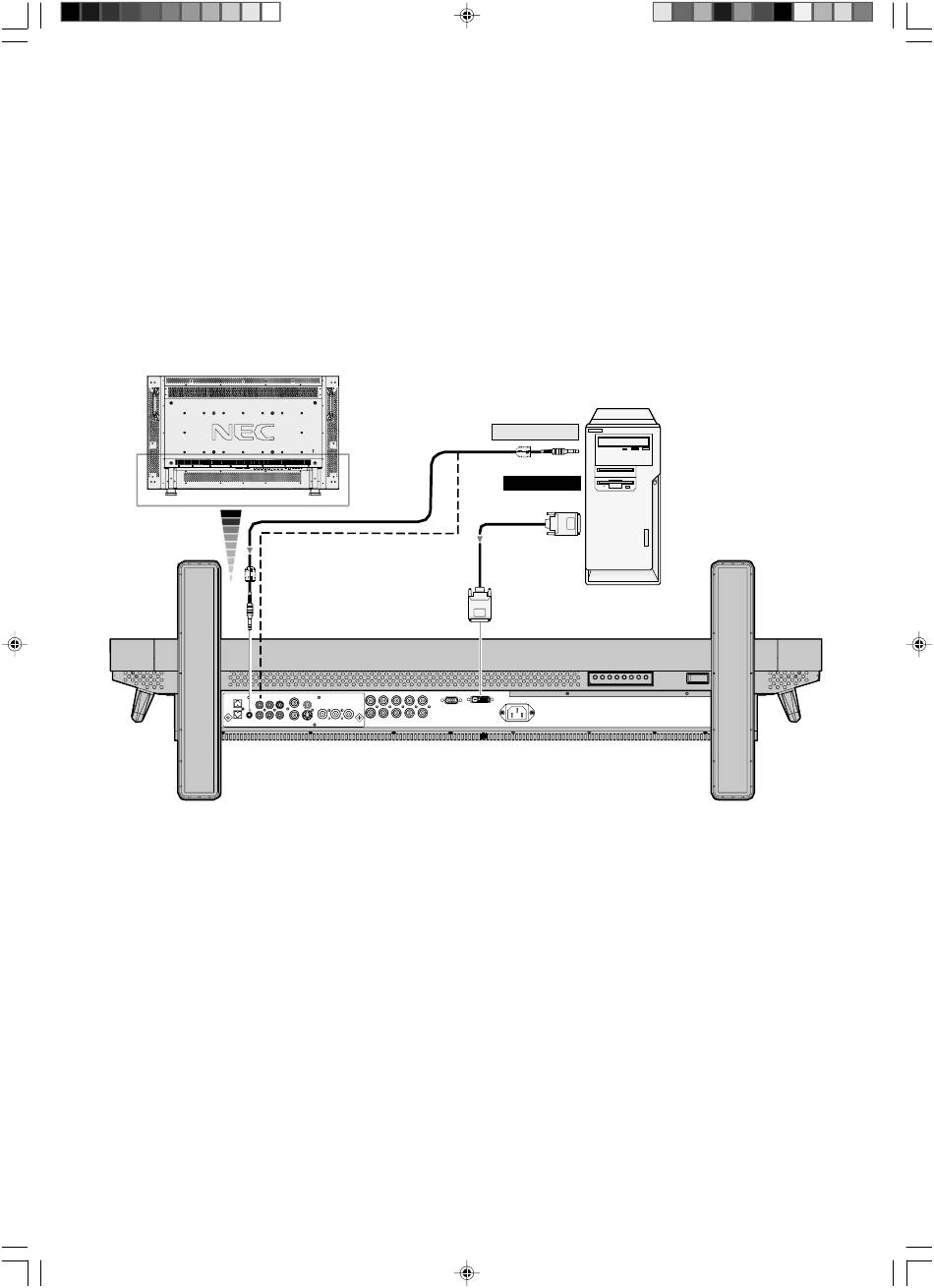

LCD monitor
01_English 14
To audio output
To DVI output
DVI-D connector
DVI-D connector
English-14
08/09/2005, 16:26
Equipment with a
digital interface such
as a personal
computer with RGB
output (TMDS)
