Overview of the Printing System

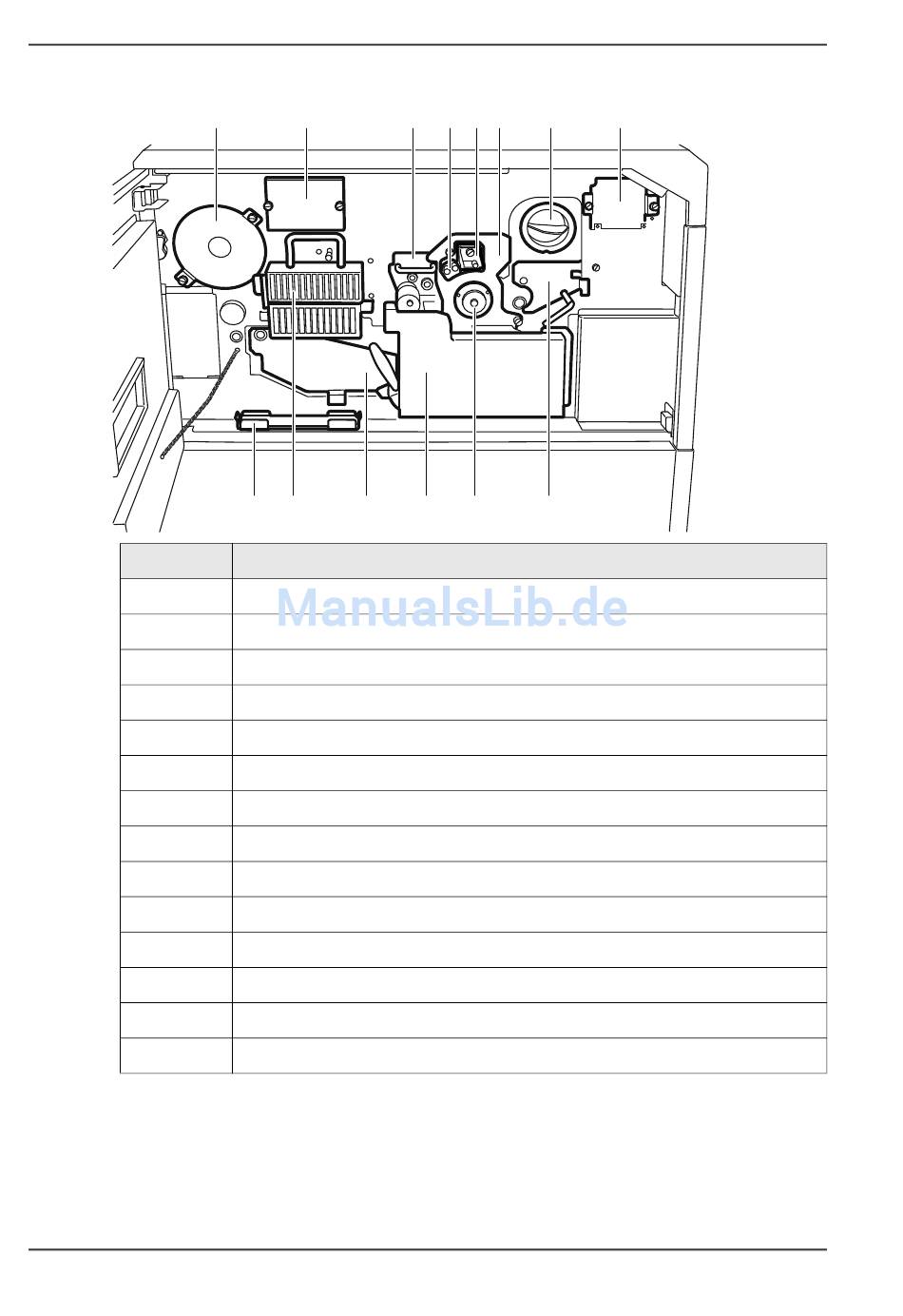

Internal View of Front Side
[2]
[2]
Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14 Chapter 1 Safety Information (US)
1 2
14 13 12
Description
Air filter
Carbon filter
Cleaning unit
Discharge lamp
Charge corotron
Photoconductor drum cover
Toner cartridge
Dust filter
Developer station
Photoconductor drum
Waste toner bottle
Paper transport
Fuser station
Rod for photoconductor drum
3 4 5 6 7
11 10 9
8
