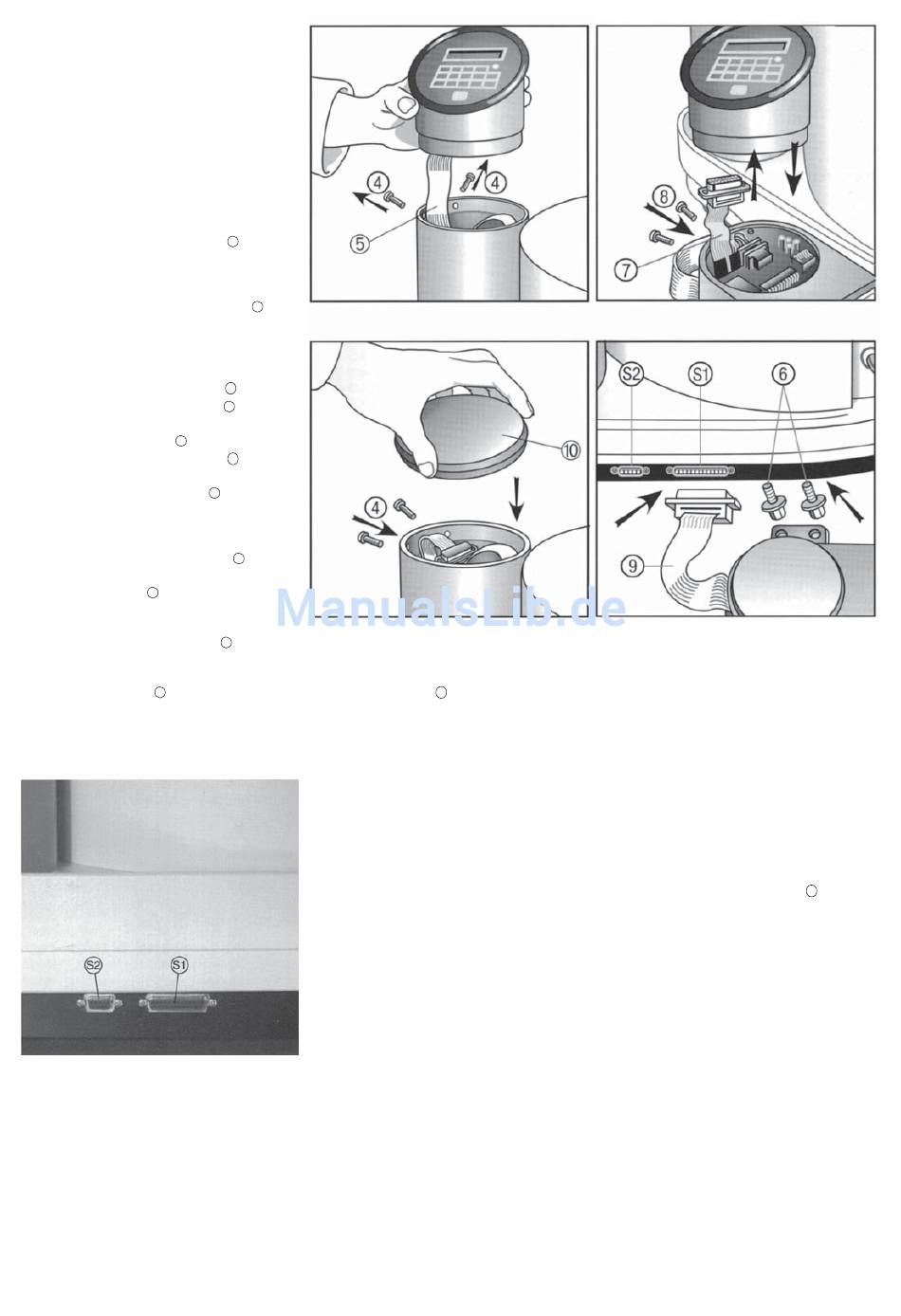

Moving the control element

With the „conversion kit for the control element"
that is available separately the control element
can be moved from the control pillar at the back
to the left side of the unit.
The conversion allows you to use the Multicast
compact even under a low rack system.
Switch off and unplug your Multicast compact
before moving the control element.
1.) Loosen the two fixation screws
control element as shown in figure 3 and
carefully remove the control element from
the control pillar by pulling it upward. Pull
off the plug of the connecting cable
the control element and put the cable into
the control pillar.
2.) Close the control pillar with a cover that is
contained in the conversion kit
sure that the connecting cable
wedged in when fastening the cover.
Screw the two screws 4 into the
respective borings of the cover
3.) Remove the fixation screws
cover plate at the bottom of the unit and
replace the cover plate with the control
element socket or the Multicast Printer.
Reinsert the two fixation screws
tighten them. Connect the plug of the
connecting cable to the control
7
element and insert the control element
into the control element holding device.
Screw the two fixation screws
respective borings of the control element.
4.) Connect the cable of the control element holding device with the
9
2.9

Use of the Multicast Printer

Figure 7: Printer ports
Connection of an external printer to the Multicast compact unit
It is possible to connect an external printer to the Multicast compact unit. A printer with serial interface, e.g. HP DeskjetTM, is required. The interface
of the printer must be set - in accordance with the description in the printer manual - to the following transmission mode:
Serial, 9600 baud, 8 bit, not parity bit („none"), 1 stop bit, handshake via DTR, no Xon/ Xoff.
of the
4
5 at
Figure 3
.Make
10
5 is not
.
10
6 of the
6 and
8 in the
Figure 4
With the Multicast Printer that is available as an accessory you can document the most important
casting parameters for quality assurance if the centrifuge arm for electric melting is used.
The casting protocols that are printed out contain the parameters of alloy, alloy quantity, batch,
furnace temperature and casting speed. Additionally, the laboratory name, date and time are
automatically entered into the casting protocol.
The Multicast Printer is connected with the Multicast compact via a special interface
screwed firmly to the housing. Please observe the separate instructions for assembly. It is
prepared to receive the control element (figure 5). It is also possible to connect commercially
available, ASCII-compatible printers with a serial port to the Multicast compact via the integrated
serial interface.
Prior to connecting the printer, switch off the Multicast compact and connect the printer to the
casting unit. First switch on the printer and then the Multicast compact and select the external
casting protocol as described in chapter 3.7.
Figure 5
Figure 6
interface of the Multicast compact.
