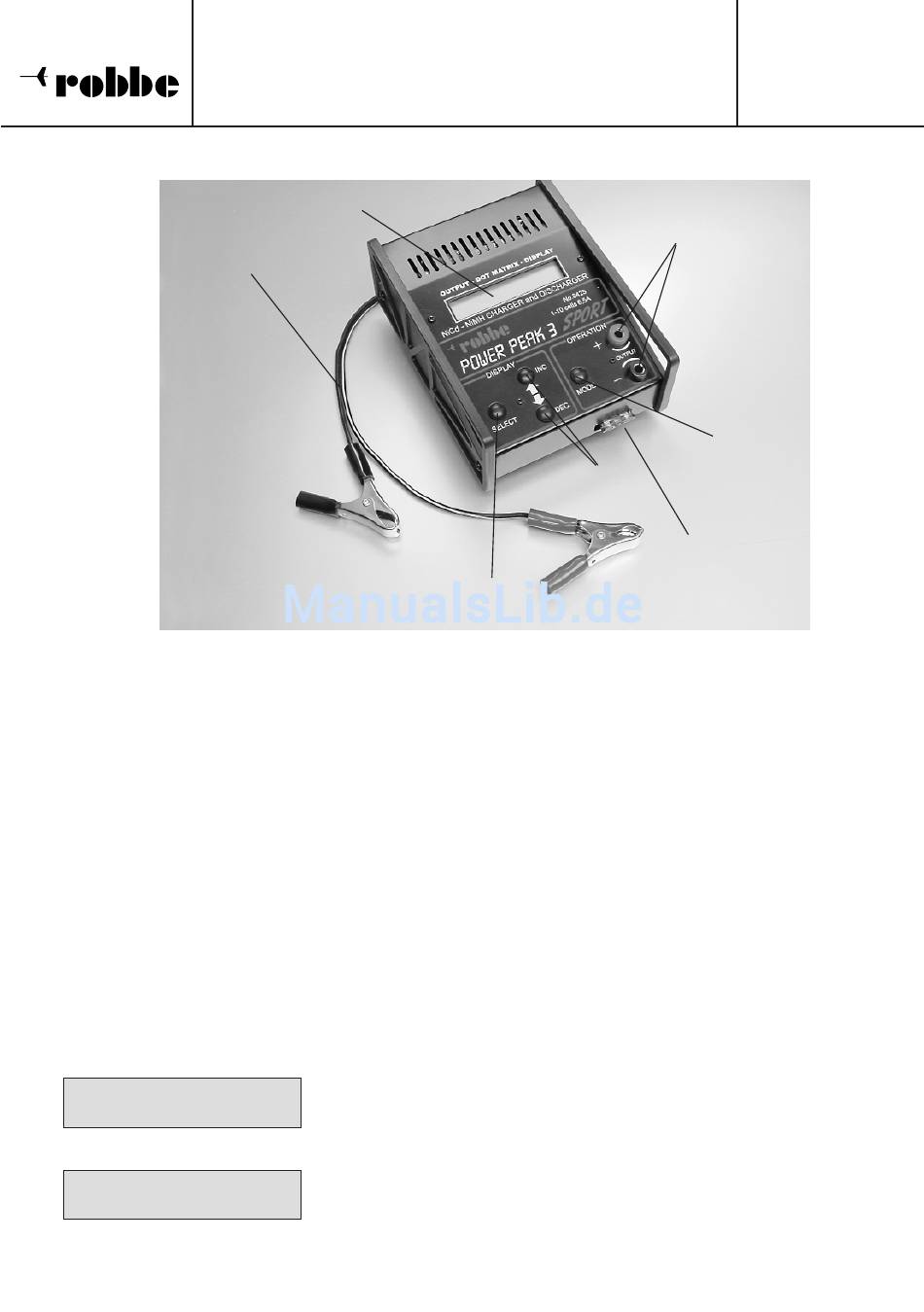

Charger controls
Power supply
Using the charger
- Connect the crocodile clips to a 12 V lead-acid battery or a suitable mains PSU; take
great care over correct polarity (red = positive / black = negative); see also section ent-
itled "Mains PSU".
- The LCD screen will show "ROBBE PP 3 SPORT".
- Connect the battery charge leads to the OUTPUT sockets (red = positive / black = nega-
tive).
- Connect the battery pack to the charge leads with correct polarity. The screen will show
the message READY (ready for use).
- The charger is now ready for use and defaults to trickle charge mode, i.e. the battery is
charged at around 80 mA.
Before you can start the actual charge or discharge process, you have to set the battery
type (NICD or NIMH), the charge current and the discharge current.
The setup menu for this appears when you connect the battery pack.
SET CHA. 4.00 A
SET DIS. 3.00 A
Operating instructions
POWER PEAK 3 Sport
LCD screen
SELECT button
Setting the charge current: leaf through the menu using the
R
SELECT button until the menu point SET CHA. appears. Set
the charge rate using the INC / DEC buttons.
Setting the discharge current: select the menu point SET DIS.
R
using the SELECT button. Set the discharge current using the
INC / DEC buttons.
Output for battery
pack connection
SET buttons
9
Order No.
8425
MODE button
Fuse
