Flush-Mount Set; Wiring Scheme - Wimtec Inside Montage- Und Bedienungsanleitung

EN
INSIDE

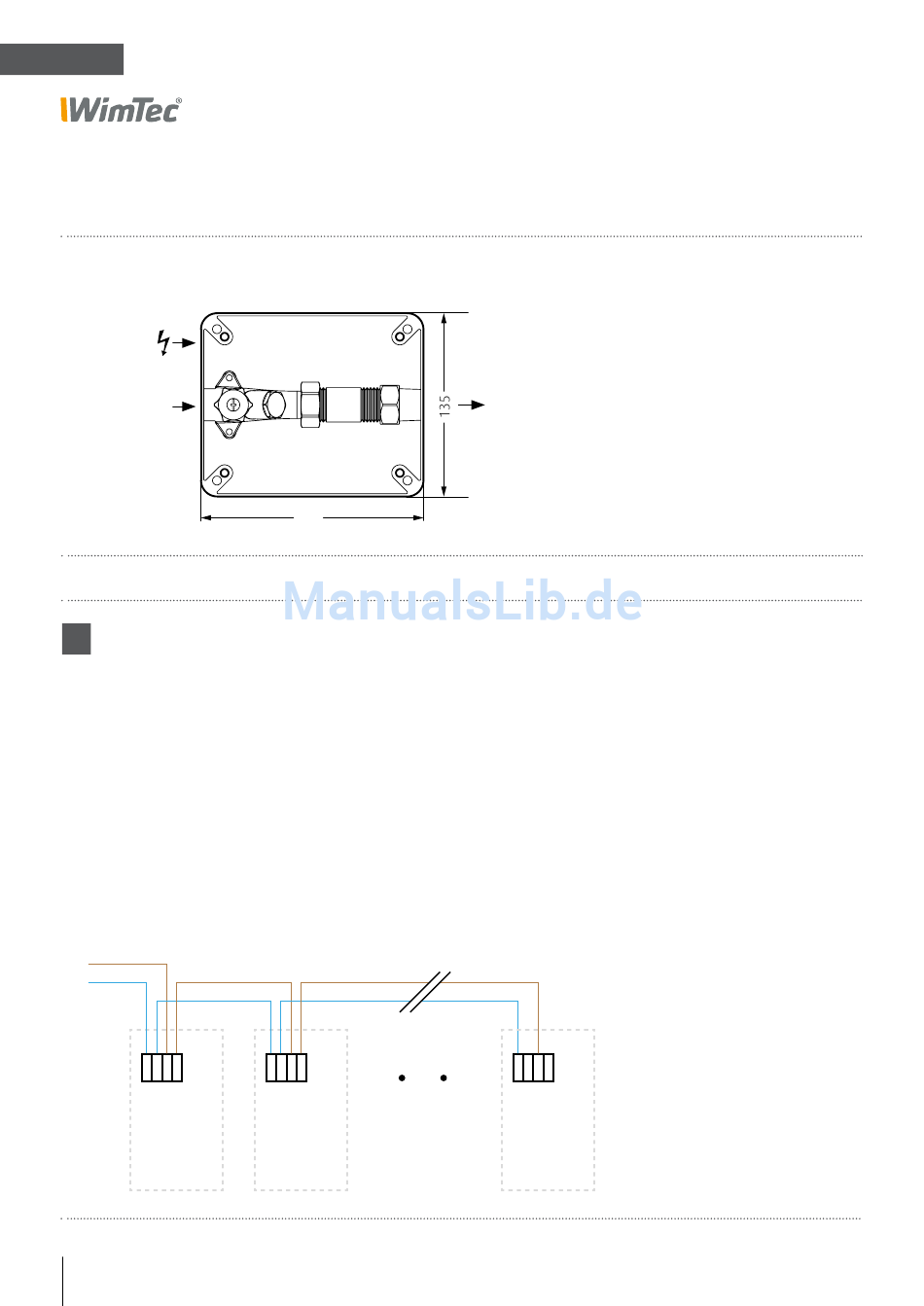

Flush-mount set

Dimensions in mm
Inlet
R ½" IT

Wiring scheme:

!
ATTENTION!
Mounting and installation may only be performed by a
qualified service provider in accordance with DIN 1988,
ÖVE/ÖNORM E 8001 and VDE 0100 Part 701.
Power supply to be established by a 2-pin main switch
with minimum 3 mm connection opening and protect
with maximum 6 A!
Power supply:
230 V~, cable: 2 x 1,5 mm²
L
N
N N L L
1 2 3 4
Module 1
24 Urinal control WimTec INSIDE
165
N N L L
1 2 3 4
Module 2
Outlet
R ½" OT
N N L L
1 2 3 4
Module X
77
