2.8 How to adjust the Gain

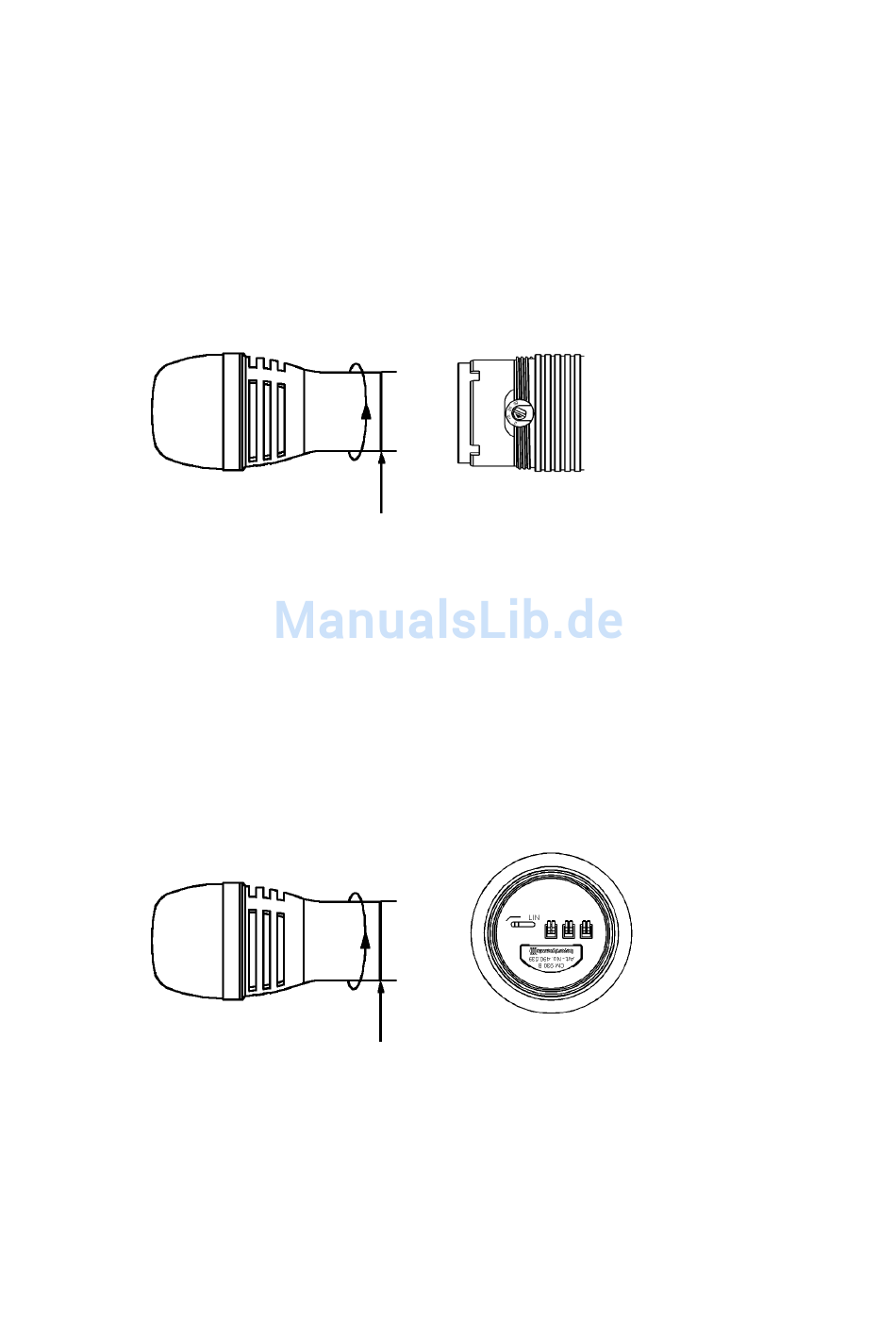

• To adjust the gain unscrew the complete microphone head with the upper shaft as
indicated by the arrows.
• Use a screwdriver to select the gain (0 dB, -10 dB, -20 dB, -30 dB).
• Standard setting: high gain (0 dB).
Unscrew microphone head
2.9 How to set the Low-cut Filter
• The CM 930 and EM 981 microphone capsules feature a low-cut filter to compensate the
close-miking effect which ususally occurs with directional microphones. To set the low-cut
filter unscrew the complete microphone head with the upper shaft as indicated by the
arrows.
• At the bottom of the microphone head you can set the low-cut filter.
• Standard setting: linear (position Lin)
Unscrew microphone head
58
Select gain
Set low-cut filter
