16

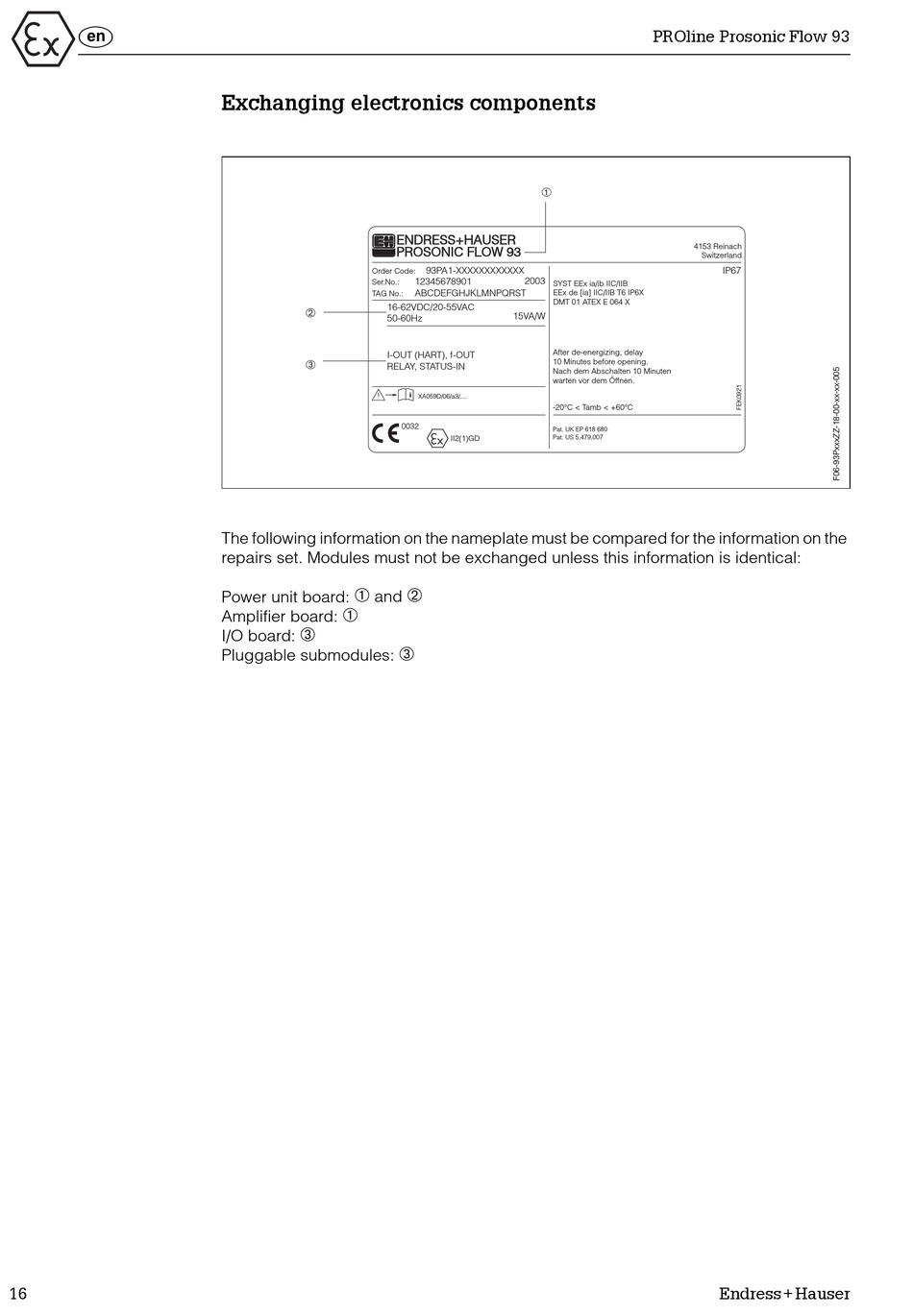

Exchanging electronics components
Order Code:
Ser.No.:
TAG No.:
16-62VDC/20-55VAC
➁
50-60Hz
I-OUT (HART), f-OUT
➂
RELAY, STATUS-IN
The following information on the nameplate must be compared for the information on the
repairs set. Modules must not be exchanged unless this information is identical:
➀
Power unit board: and
➀
Amplifier board:
➂
I/O board:
Pluggable submodules:
➀
ENDRESS+HAUSER
PROSONIC FLOW 93
93PA1-XXXXXXXXXXXX
12345678901 2003
SYST EEx ia/ib IIC/IIB
ABCDEFGHJKLMNPQRST EEx de [ia] IIC/IIB T6 IP6X
DMT 01 ATEX E 064 X
15VA/W
After de-energizing, delay
10 Minutes before opening.
Nach dem Abschalten 10 Minuten
warten vor dem Öffnen.
i
XA059D/06/a3/....
-20°C < Tamb < +60°C
0032
Pat. UK EP 618 680
II2(1)GD Pat. US 5,479,007
➁
➂
PROline Prosonic Flow 93
4153 Reinach
Switzerland
IP67
Endress+Hauser
