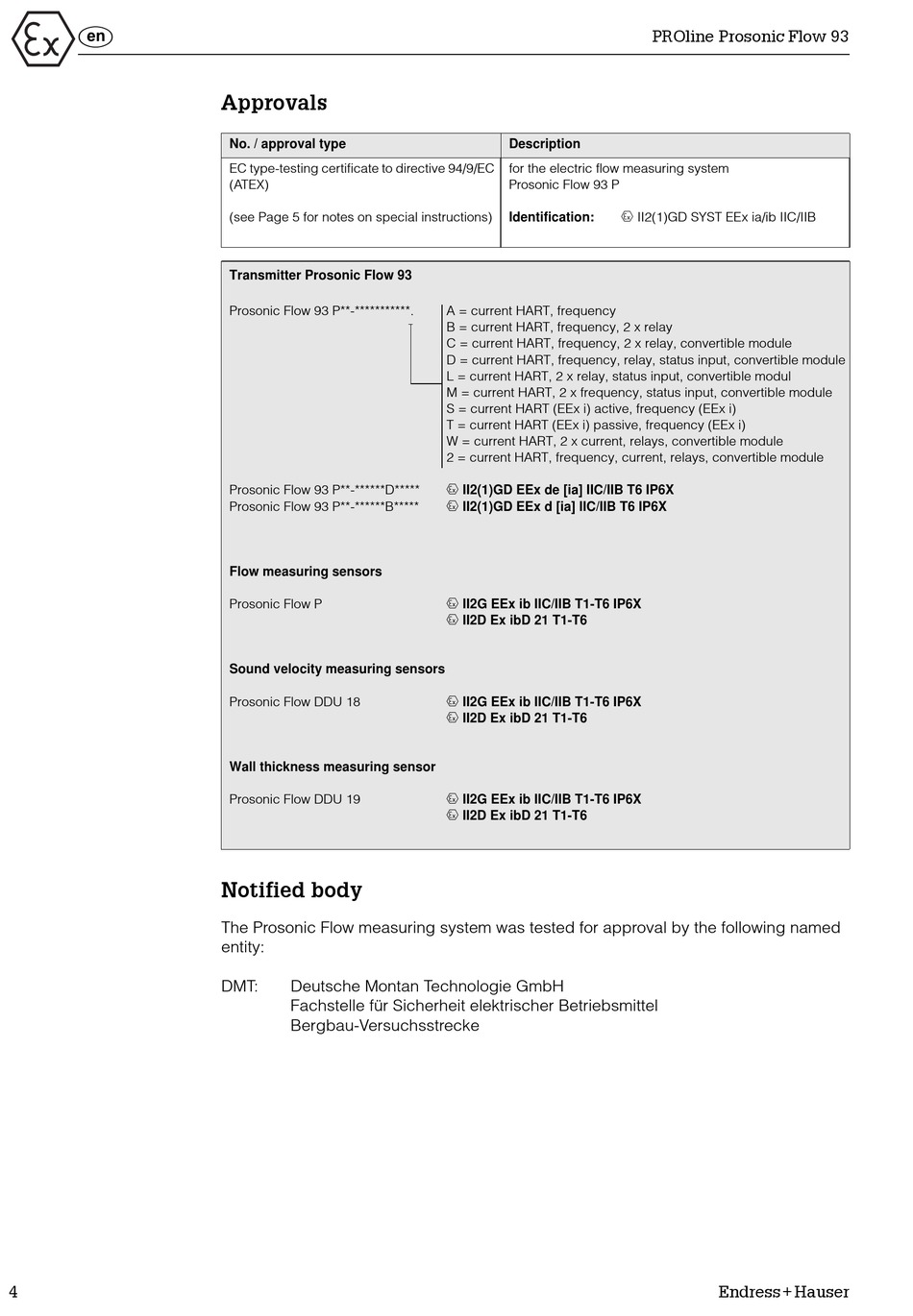

Approvals
No. / approval type
EC type-testing certificate to directive 94/9/EC
(ATEX)
(see Page 5 for notes on special instructions)
Transmitter Prosonic Flow 93
Prosonic Flow 93 P**-***********.
Prosonic Flow 93 P**-******D*****
Prosonic Flow 93 P**-******B*****
Flow measuring sensors
Prosonic Flow P
Sound velocity measuring sensors
Prosonic Flow DDU 18
Wall thickness measuring sensor
Prosonic Flow DDU 19
Notified body
The Prosonic Flow measuring system was tested for approval by the following named
entity:
DMT: Deutsche Montan Technologie GmbH
Fachstelle für Sicherheit elektrischer Betriebsmittel
Bergbau-Versuchsstrecke
Description
for the electric flow measuring system
Prosonic Flow 93 P
Identification:
A = current HART, frequency
B = current HART, frequency, 2 x relay
C = current HART, frequency, 2 x relay, convertible module
D = current HART, frequency, relay, status input, convertible module
L = current HART, 2 x relay, status input, convertible modul
M = current HART, 2 x frequency, status input, convertible module
S = current HART (EEx i) active, frequency (EEx i)
T = current HART (EEx i) passive, frequency (EEx i)
W = current HART, 2 x current, relays, convertible module
2 = current HART, frequency, current, relays, convertible module
0 II2(1)GD EEx de [ia] IIC/IIB T6 IP6X
0 II2(1)GD EEx d [ia] IIC/IIB T6 IP6X
0 II2G EEx ib IIC/IIB T1-T6 IP6X
0 II2D Ex ibD 21 T1-T6
0 II2G EEx ib IIC/IIB T1-T6 IP6X
0 II2D Ex ibD 21 T1-T6
0 II2G EEx ib IIC/IIB T1-T6 IP6X
0 II2D Ex ibD 21 T1-T6
PROline Prosonic Flow 93
0 II2(1)GD SYST EEx ia/ib IIC/IIB
