Operating Parameters Configuration
The configuration allows you easily to adapt the controller to your application. Your system
builder will have preconfigured the TC20xx accordingly so normally it is not necessary to enter
the configuration.
Entering Configuration

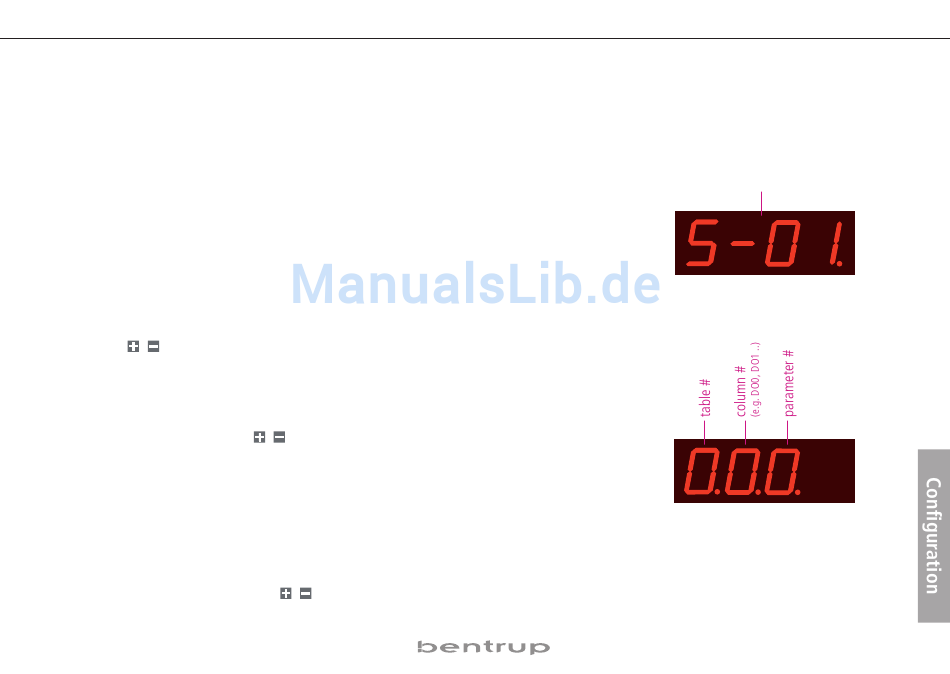

simple config parameter #
Press and hold key
P
(resp.
X
on TC2010) to enter configuration. After 3 seconds controllers
display reads 1st parameter. Depending on current configuration mode display reads either "S-
01" on simple configuration resp. "0.0.0" on complex configuration.
Simple configuration mode provides sufficient flexibility for most applications. Set type of
simple configuration display
thermocouple, maximum operating temperature, PID control parameters and control output
characteristics and your TC20xx is ready to work. Use arrow keys to select parameter number
(S-xx) and
/
to change if required. Refer to the list of parameters on pages 26 and 27.
Complex configuration mode allows to configure all analog and digital inputs and outputs
in detail. Control loops and programme tables can be fine tuned individually. Use the cursor
cross to navigate through the parameter tables shown on page 28 et seqq. To change the se-
lected parameter press
P
and use
/
keys. After pressing
P
again you are back in parameter
navigation. For most easy configuration we recommend using free of charge Windows Utility
'WinConfig' available on www.bentrup.com to configure the TC20xx.
Changing Configuration Mode
complex configuration display
Unlock the controller as described on page 24. While in configuration mode press and hold
key
start stop
for 3 seconds until current configuration mode is displayed:
CFg. CPL
(com-
plex) or
CFg. SIM
(simplex). Use keys
/
to change and then press and hold key start stop
for 3 seconds to save and initialize new mode. NOTE: All configuration is lost.
25
operating instructions bentrup TC20xx V1.9
