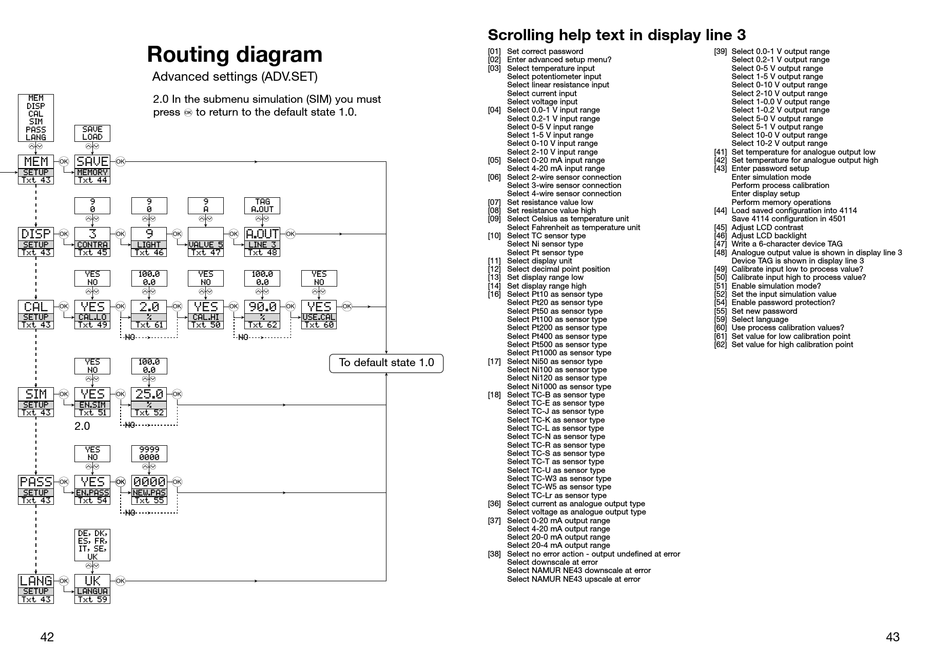

Routing diagram
Advanced settings (ADV.SET)
,$,

2.0 In the submenu simulation (SIM) you must

"(2/
press to return to the default state 1.0.
#!+
2(,
/!22 2!5$
+!-& +.!"
,$, 2!5$
2$34/ ,$,.18
3UQ  3UQ


"(2/
2$34/ #.-31! +(&'3 5!+5$
3UQ  3UQ  3UQ  3UQ
8$2  8$2
-.
#!+ 8$2  8$2
2$34/ #!++. #!+'(
3UQ  3UQ  3UQ  3UQ
-.
8$2
-.
2(, 8$2
2$34/ $-2(,
3UQ  3UQ  3UQ
-.
2.0
8$2
-.
/!22 8$2
2$34/ $-/!22 -$6/!2
3UQ  3UQ  3UQ
-.
"$ "*
$2 %1
(3 2$
4*
+!-& 4*
2$34/ +!-&4!
3UQ  3UQ
42
 3!&
! !.43
!.43
+(-$
3UQ
 8$2
-.  -.
 8$2
42$#!+
3UQ  3UQ
-.
To default state 1.0

Scrolling help text in display line 3

[01] Set correct password
[02] Enter advanced setup menu?
[03] Select temperature input
Select potentiometer input
Select linear resistance input
Select current input
Select voltage input
[04] Select 0.0-1 V input range
Select 0.2-1 V input range
Select 0-5 V input range
Select 1-5 V input range
Select 0-10 V input range
Select 2-10 V input range
[05] Select 0-20 mA input range
Select 4-20 mA input range
[06] Select 2-wire sensor connection
Select 3-wire sensor connection
Select 4-wire sensor connection
[07] Set resistance value low
[08] Set resistance value high
[09] Select Celsius as temperature unit
Select Fahrenheit as temperature unit
[10] Select TC sensor type
Select Ni sensor type
Select Pt sensor type
[11] Select display unit
[12] Select decimal point position
[13] Set display range low
[14] Set display range high
[16] Select Pt10 as sensor type
Select Pt20 as sensor type
Select Pt50 as sensor type
Select Pt100 as sensor type
Select Pt200 as sensor type
Select Pt400 as sensor type
Select Pt500 as sensor type
Select Pt1000 as sensor type
[17] Select Ni50 as sensor type
Select Ni100 as sensor type
Select Ni120 as sensor type
Select Ni1000 as sensor type
[18] Select TC-B as sensor type
Select TC-E as sensor type
Select TC-J as sensor type
Select TC-K as sensor type
Select TC-L as sensor type
Select TC-N as sensor type
Select TC-R as sensor type
Select TC-S as sensor type
Select TC-T as sensor type
Select TC-U as sensor type
Select TC-W3 as sensor type
Select TC-W5 as sensor type
Select TC-Lr as sensor type
[36] Select current as analogue output type
Select voltage as analogue output type
[37] Select 0-20 mA output range
Select 4-20 mA output range
Select 20-0 mA output range
Select 20-4 mA output range
[38] Select no error action - output undefined at error
Select downscale at error
Select NAMUR NE43 downscale at error
Select NAMUR NE43 upscale at error
[39] Select 0.0-1 V output range
Select 0.2-1 V output range
Select 0-5 V output range
Select 1-5 V output range
Select 0-10 V output range
Select 2-10 V output range
Select 1-0.0 V output range
Select 1-0.2 V output range
Select 5-0 V output range
Select 5-1 V output range
Select 10-0 V output range
Select 10-2 V output range
[41] Set temperature for analogue output low
[42] Set temperature for analogue output high
[43] Enter password setup
Enter simulation mode
Perform process calibration
Enter display setup
Perform memory operations
[44] Load saved configuration into 4114
Save 4114 configuration in 4501
[45] Adjust LCD contrast
[46] Adjust LCD backlight
[47] Write a 6-character device TAG
[48] Analogue output value is shown in display line 3
Device TAG is shown in display line 3
[49] Calibrate input low to process value?
[50] Calibrate input high to process value?
[51] Enable simulation mode?
[52] Set the input simulation value
[54] Enable password protection?
[55] Set new password
[59] Select language
[60] Use process calibration values?
[61] Set value for low calibration point
[62] Set value for high calibration point
