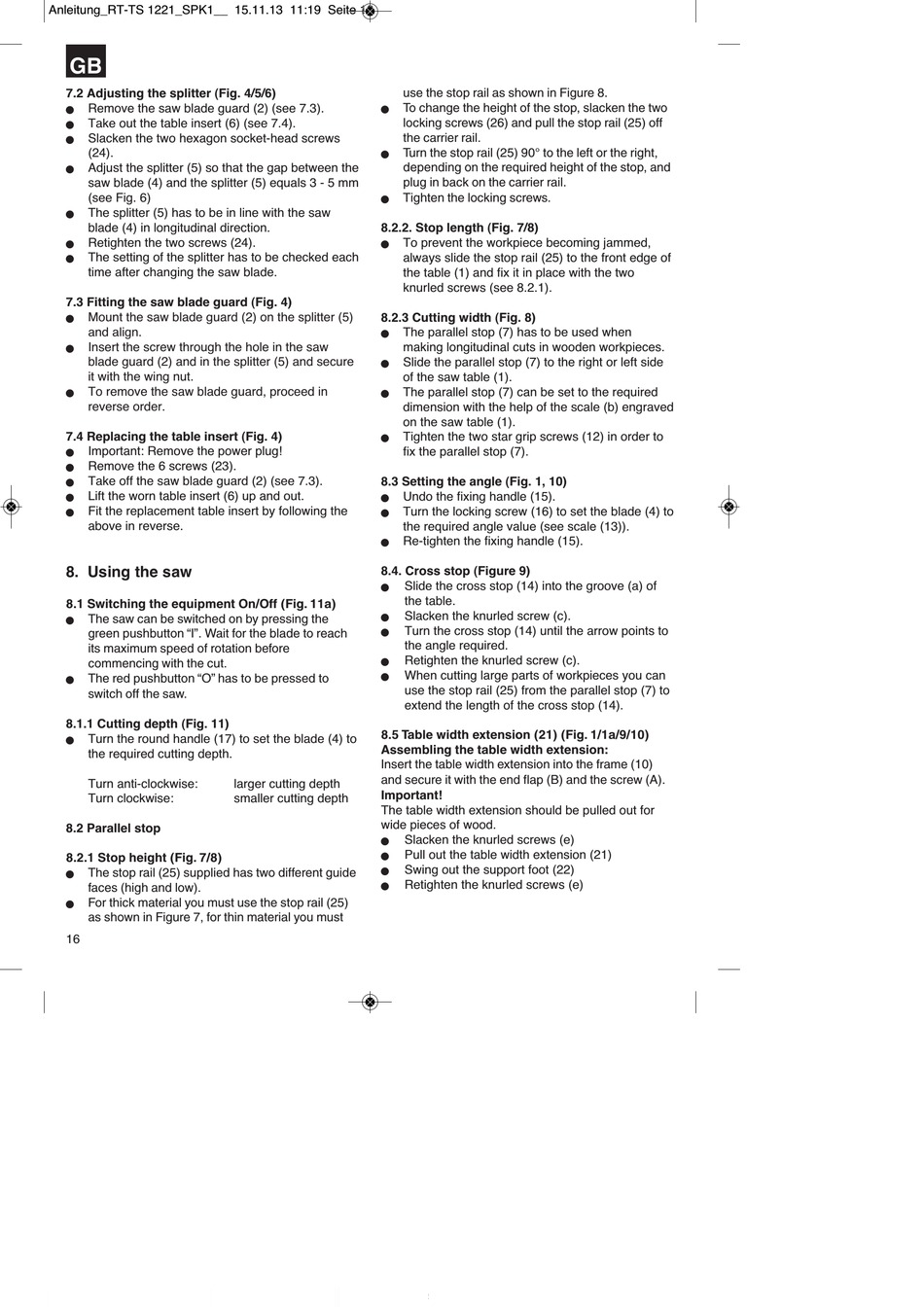

7.2 Adjusting the splitter (Fig. 4/5/6)
Remove the saw blade guard (2) (see 7.3).
n
Take out the table insert (6) (see 7.4).
n
Slacken the two hexagon socket-head screws
n
(24).
Adjust the splitter (5) so that the gap between the
n
saw blade (4) and the splitter (5) equals 3 - 5 mm
(see Fig. 6)
The splitter (5) has to be in line with the saw
n
blade (4) in longitudinal direction.
Retighten the two screws (24).
n
The setting of the splitter has to be checked each
n
time after changing the saw blade.
7.3 Fitting the saw blade guard (Fig. 4)
Mount the saw blade guard (2) on the splitter (5)
n
and align.
Insert the screw through the hole in the saw
n
blade guard (2) and in the splitter (5) and secure
it with the wing nut.
To remove the saw blade guard, proceed in
n
reverse order.
7.4 Replacing the table insert (Fig. 4)
Important: Remove the power plug!
n
Remove the 6 screws (23).
n
Take off the saw blade guard (2) (see 7.3).
n
Lift the worn table insert (6) up and out.
n
Fit the replacement table insert by following the
n
above in reverse.

8. Using the saw

8.1 Switching the equipment On/Off (Fig. 11a)
The saw can be switched on by pressing the
n
green pushbutton "I". Wait for the blade to reach
its maximum speed of rotation before
commencing with the cut.
The red pushbutton "O" has to be pressed to
n
switch off the saw.
8.1.1 Cutting depth (Fig. 11)
Turn the round handle (17) to set the blade (4) to
n
the required cutting depth.
Turn anti-clockwise:
Turn clockwise:
8.2 Parallel stop
8.2.1 Stop height (Fig. 7/8)
The stop rail (25) supplied has two different guide
n
faces (high and low).
For thick material you must use the stop rail (25)
n
as shown in Figure 7, for thin material you must
16
use the stop rail as shown in Figure 8.
To change the height of the stop, slacken the two
n
locking screws (26) and pull the stop rail (25) off
the carrier rail.
Turn the stop rail (25) 90° to the left or the right,
n
depending on the required height of the stop, and
plug in back on the carrier rail.
Tighten the locking screws.
n
8.2.2. Stop length (Fig. 7/8)
To prevent the workpiece becoming jammed,
n
always slide the stop rail (25) to the front edge of
the table (1) and fix it in place with the two
knurled screws (see 8.2.1).
8.2.3 Cutting width (Fig. 8)
The parallel stop (7) has to be used when
n
making longitudinal cuts in wooden workpieces.
Slide the parallel stop (7) to the right or left side
n
of the saw table (1).
The parallel stop (7) can be set to the required
n
dimension with the help of the scale (b) engraved
on the saw table (1).
Tighten the two star grip screws (12) in order to
n
fix the parallel stop (7).
8.3 Setting the angle (Fig. 1, 10)
Undo the fixing handle (15).
n
Turn the locking screw (16) to set the blade (4) to
n
the required angle value (see scale (13)).
Re-tighten the fixing handle (15).
n
8.4. Cross stop (Figure 9)
Slide the cross stop (14) into the groove (a) of
n
the table.
Slacken the knurled screw (c).
n
Turn the cross stop (14) until the arrow points to
n
the angle required.
Retighten the knurled screw (c).
n
When cutting large parts of workpieces you can
n
use the stop rail (25) from the parallel stop (7) to
extend the length of the cross stop (14).
8.5 Table width extension (21) (Fig. 1/1a/9/10)
Assembling the table width extension:
Insert the table width extension into the frame (10)
and secure it with the end flap (B) and the screw (A).
larger cutting depth
Important!
smaller cutting depth
The table width extension should be pulled out for
wide pieces of wood.
Slacken the knurled screws (e)
n
Pull out the table width extension (21)
n
Swing out the support foot (22)
n
Retighten the knurled screws (e)
