Remote control features

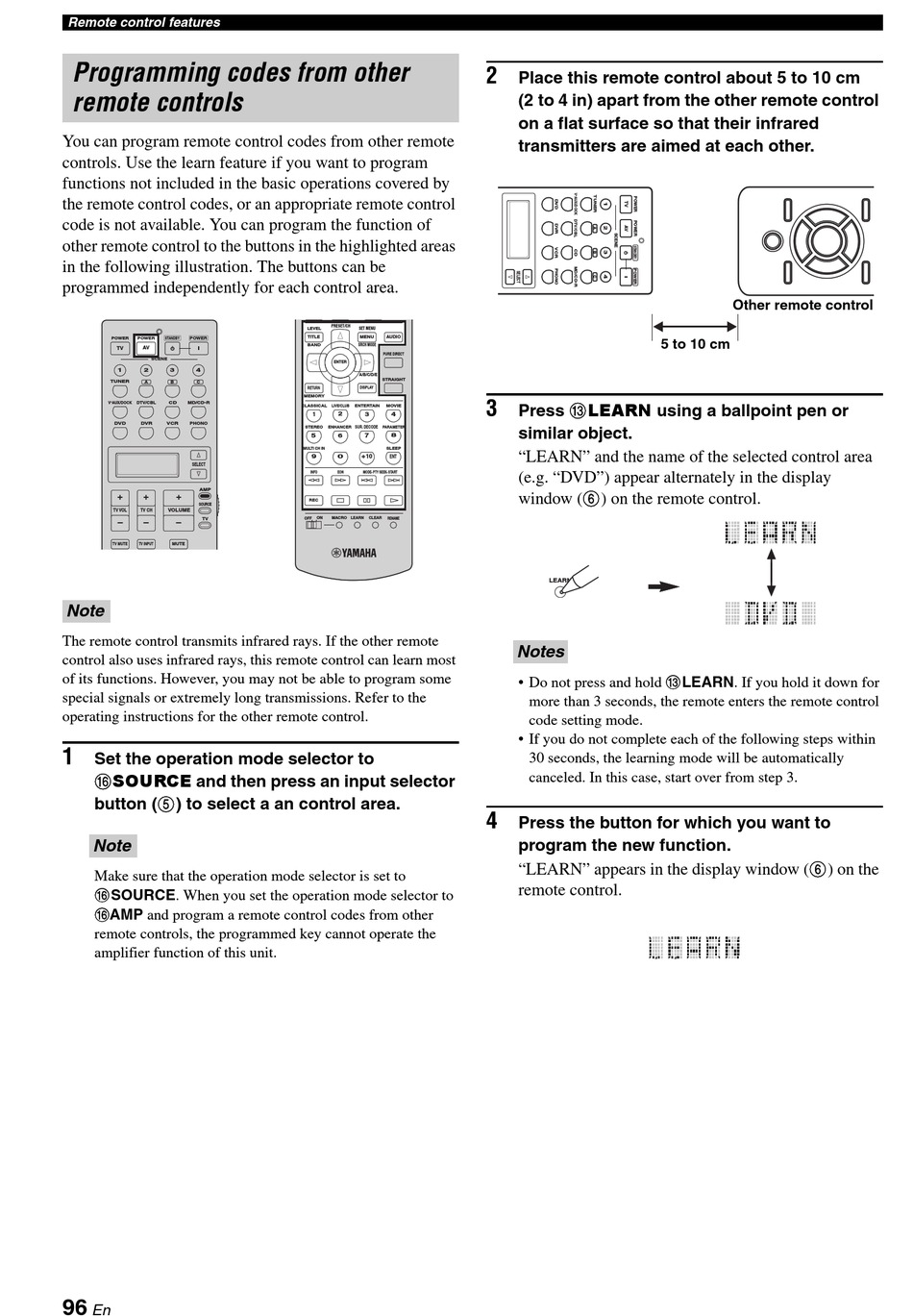

Programming codes from other
remote controls
You can program remote control codes from other remote
controls. Use the learn feature if you want to program
functions not included in the basic operations covered by
the remote control codes, or an appropriate remote control
code is not available. You can program the function of
other remote control to the buttons in the highlighted areas
in the following illustration. The buttons can be
programmed independently for each control area.
POWER POWER STANDBY POWER
TV AV
SCENE
1 2 3 4
TUNER
A B C
V-AUX/DOCK DTV/CBL CD MD/CD-R
DVD DVR VCR PHONO
SELECT
AMP
+ + +
SOURCE
TV VOL TV CH VOLUME
TV
– –
–
TV MUTE TV INPUT MUTE
Note
The remote control transmits infrared rays. If the other remote
control also uses infrared rays, this remote control can learn most
of its functions. However, you may not be able to program some
special signals or extremely long transmissions. Refer to the
operating instructions for the other remote control.
1
Set the operation mode selector to

F SOURCE and then press an input selector

button ( 5 ) to select a an control area.
Note
Make sure that the operation mode selector is set to
F SOURCE. When you set the operation mode selector to
F AMP and program a remote control codes from other
remote controls, the programmed key cannot operate the
amplifier function of this unit.
96
En
PRESET/CH
SET MENU
LEVEL
TITLE MENU AUDIO
SRCH MODE
BAND
PURE DIRECT
ENTER
A/B/C/D/E
STRAIGHT
RETURN DISPLAY
MEMORY
CLASSICAL LIVE/CLUB ENTERTAIN MOVIE
1 2 3 4
STEREO ENHANCER SUR. DECODE PARAMETER
5 6 7 8
MULTI CH IN SLEEP
+ 10
9 0 ENT
INFO EON MODE- PTY SEEK- START
REC
OFF ON MACRO LEARN CLEAR RENAME
2
Place this remote control about 5 to 10 cm
(2 to 4 in) apart from the other remote control
on a flat surface so that their infrared
transmitters are aimed at each other.
Press C LEARN using a ballpoint pen or
3
similar object.
"LEARN" and the name of the selected control area
(e.g. "DVD") appear alternately in the display
window ( 6 ) on the remote control.
LEARN
Notes
• Do not press and hold C LEARN. If you hold it down for
more than 3 seconds, the remote enters the remote control
code setting mode.
• If you do not complete each of the following steps within
30 seconds, the learning mode will be automatically
canceled. In this case, start over from step 3.
4
Press the button for which you want to
program the new function.
"LEARN" appears in the display window ( 6 ) on the
remote control.
Other remote control
5 to 10 cm
