IMPAC-Pyrometer IN 5-DC-PL2
2

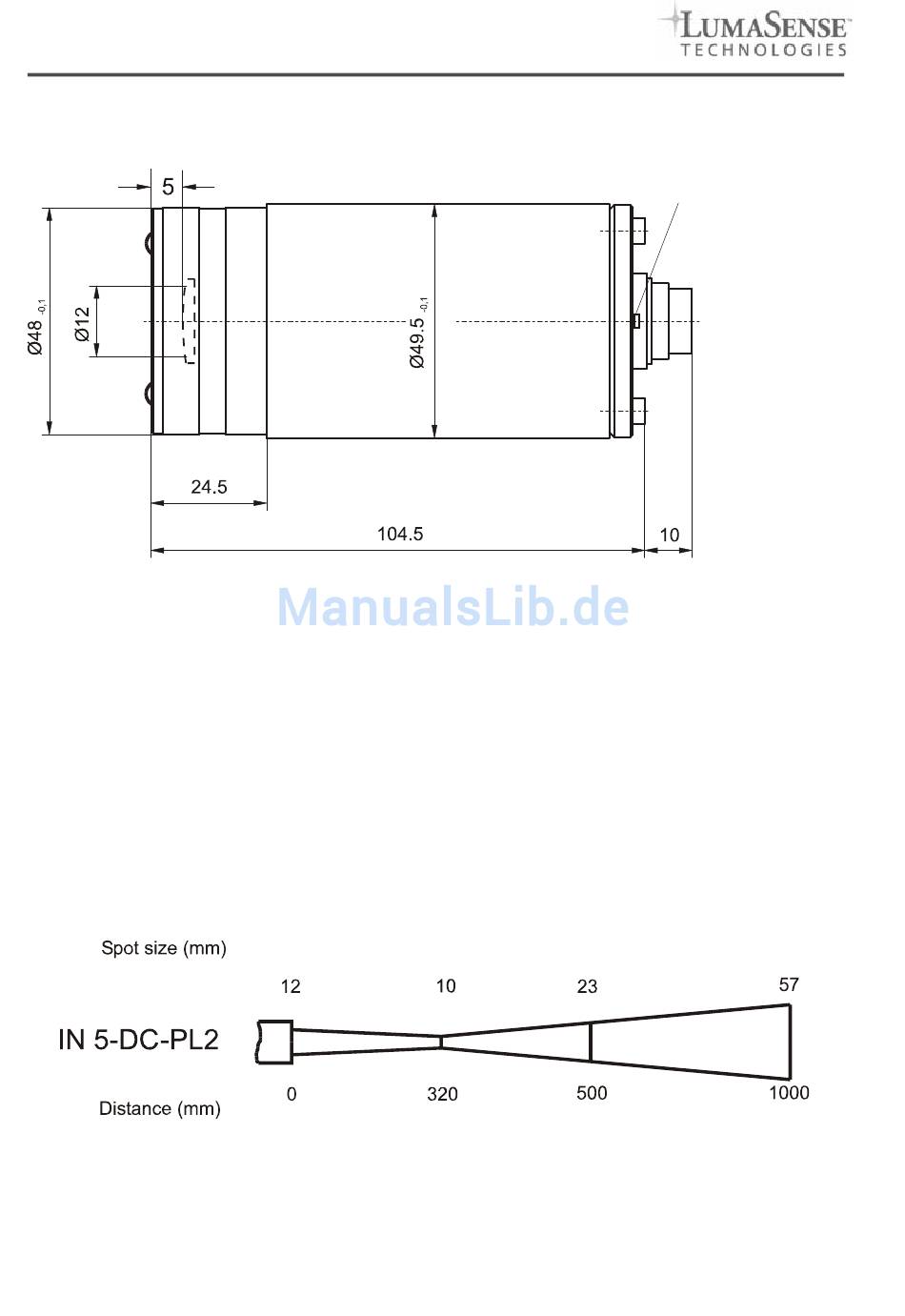

Dimensions

3

Optics

For aligning, the IN 5-DC-PL2 has an integrated laser targeting light. The tar-
geting light is switched on by a short push on the push button at the rear cover
or with an external switch (bridge Pin H to Pin K). The laser is focused at a
distance of 400 mm. After 2 minutes the targeting light is turned off automati-
cally. Operating temperatures above 50°C will switch off the laser targeting
light automatically.
6
Ext.PL
Push button for
targeting light
