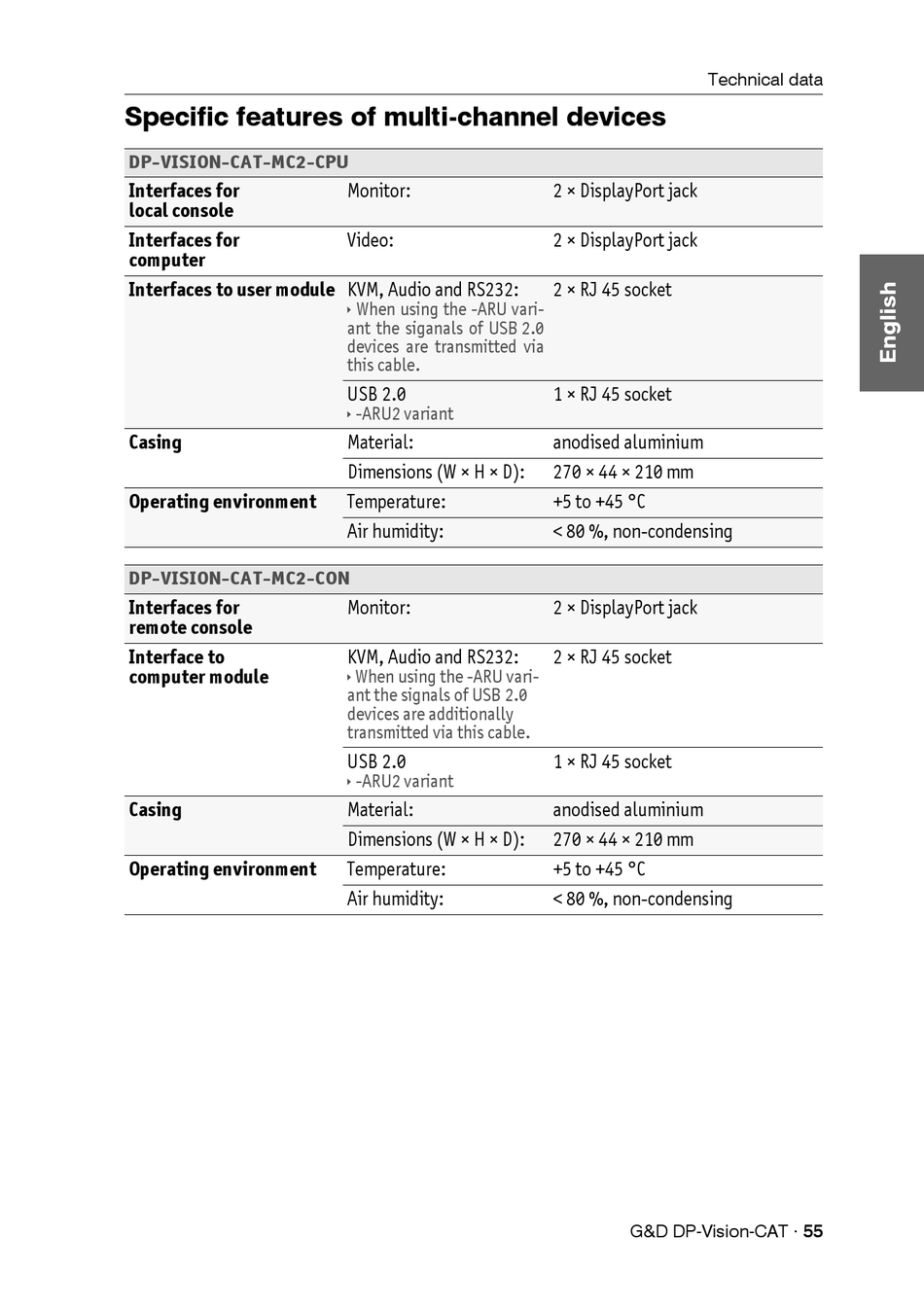

Specific features of multi-channel devices

DP-VISION-CAT-MC2-CPU
Interfaces for
local console
Interfaces for
computer
Interfaces to user module KVM, Audio and RS232:
Casing
Operating environment
DP-VISION-CAT-MC2-CON
Interfaces for
remote console
Interface to
computer module
Casing
Operating environment
Monitor:
Video:
 When using the -ARU vari-
ant the siganals of USB 2.0
devices are transmitted via
this cable.
USB 2.0
 -ARU2 variant
Material:
Dimensions (W × H × D):
Temperature:
Air humidity:
Monitor:
KVM, Audio and RS232:
 When using the -ARU vari-
ant the signals of USB 2.0
devices are additionally
transmitted via this cable.
USB 2.0
 -ARU2 variant
Material:
Dimensions (W × H × D):
Temperature:
Air humidity:
Technical data
2 × DisplayPort jack
2 × DisplayPort jack
2 × RJ 45 socket
1 × RJ 45 socket
anodised aluminium
270 × 44 × 210 mm
+5 to +45 °C
< 80 %, non-condensing
2 × DisplayPort jack
2 × RJ 45 socket
1 × RJ 45 socket
anodised aluminium
270 × 44 × 210 mm
+5 to +45 °C
< 80 %, non-condensing
G&D DP-Vision-CAT · 55
