ASSEMBLY

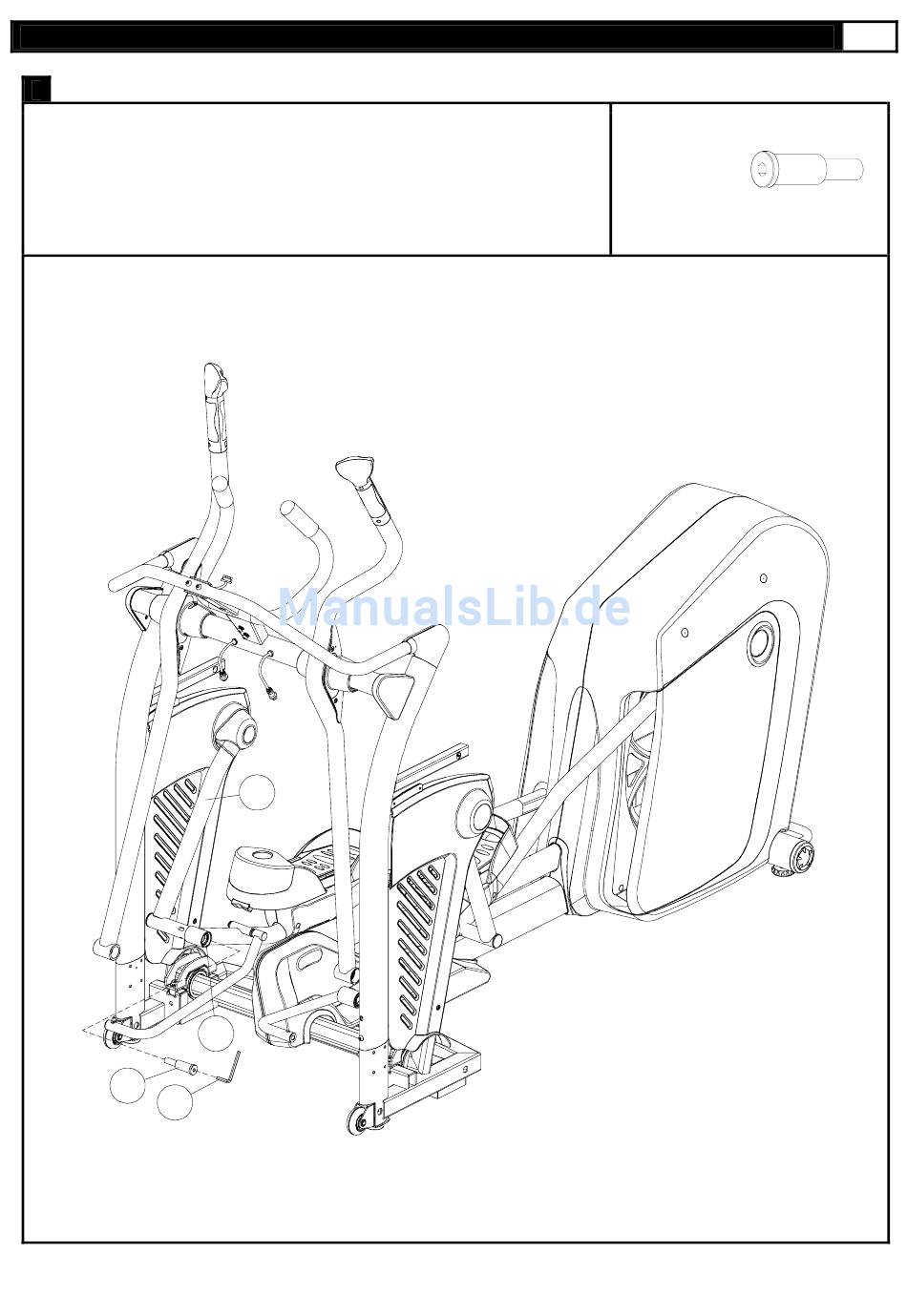

STEP 11: Connect the Pedal Arm to the Pedal Swing Arm
(A) Slide the 20 x 78-M14 X 35mm Bolt (502) through the Pedal Arm-Right
502 X2
(107) and Pedal Swing Arm (120) the secure by 8mm Al
len Key (E).
(B) Repeat the above procedure to assemble the left side.
120
107
502
E
