28 SMOOTH AGILE TRAINER
ASSEMBLY

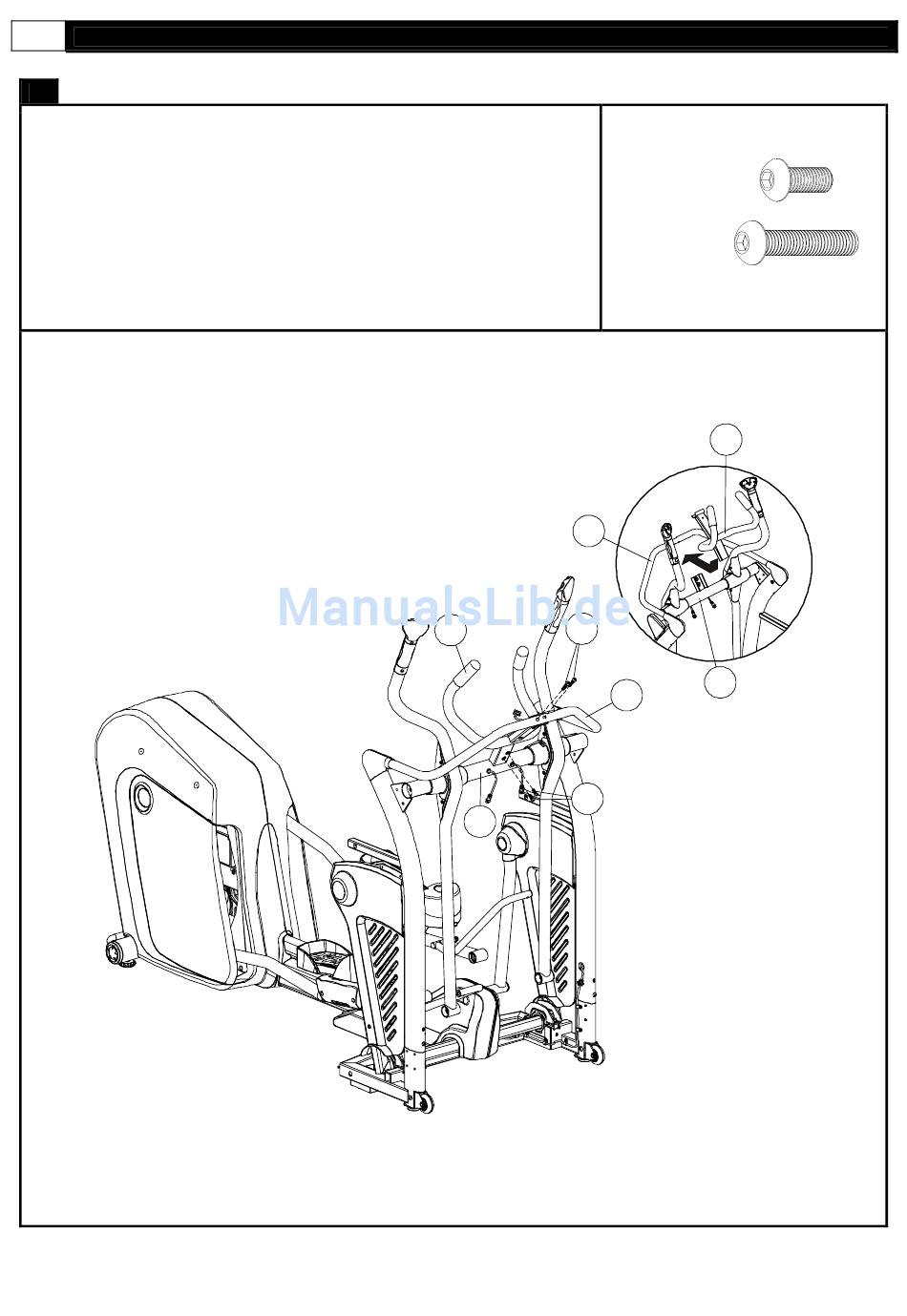

STEP 8: Assemble the Fixed Handlebar
(A) Assemble the Fixed Handlebar (101) to the Console Support Tube (103)
and Crossbar (102).
(B) Secure the Fixed Handlebar (101) to the Crossbar (102) with two
M8 x 20mm Allen Head Bolts (504).
(C) Secure the Fixed Handlebar (101) to the Console Support Tube (103)
with two M8 x 40mm Allen Head Bolts (505).
103
101 505
504
102
504 X2
505 X2
101
102
103
