ASSEMBLY

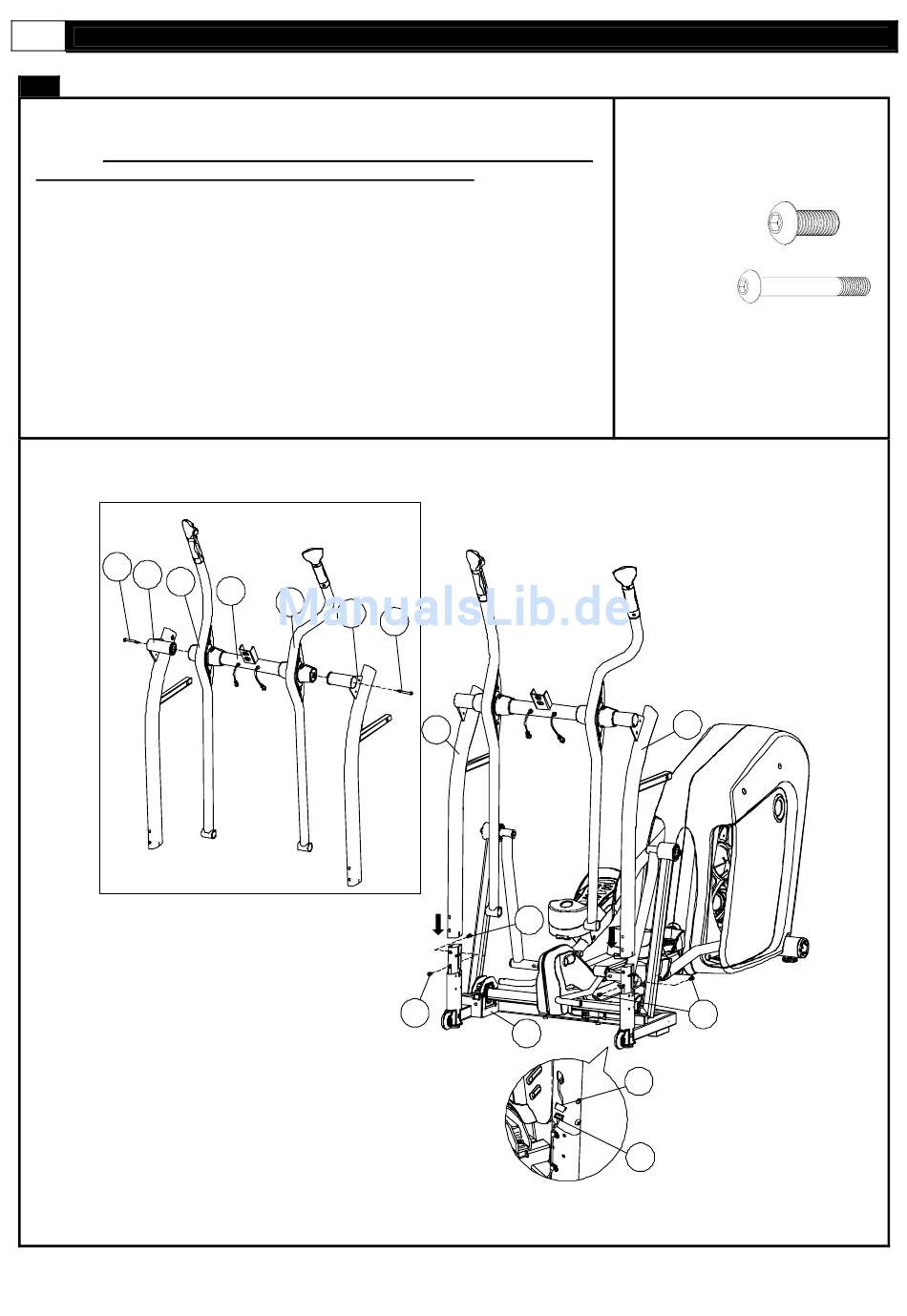

STEP 4: Assemble the Upright
NOTE: 1. DO NOT TIGHTEN THE M8 x 20mm ALLEN HEAD BOLT WHEN
YOU ASSEMBLE THE UPRIGHT TO THE BASE FRAME.
(A) Assemble the Upright-Left (110) and Upright-Right (111) to the Handlebar
assembly and secure using two M8 x 56mm Allen Head Bolts (506).
Do not completely tighten M8 x 56mm Allen Head Bolts until step C.
(B) Insert the Upright Assembly to the Base Frame (104) and secure with four
M8 x 20mm Allen Head Bolts (504).
(C) Connect the 8Pin Power Wire-Lower (618) to the 8Pin Power Wire-Middle
(617).
(D) Tighten the M8 x 56mm Allen Head Bolt (505).
506
111
109
102
108
110
506
111
504
504
104
504 X4
506 X2
110
504
617
618
