26 SMOOTH AGILE TRAINER
ASSEMBLY

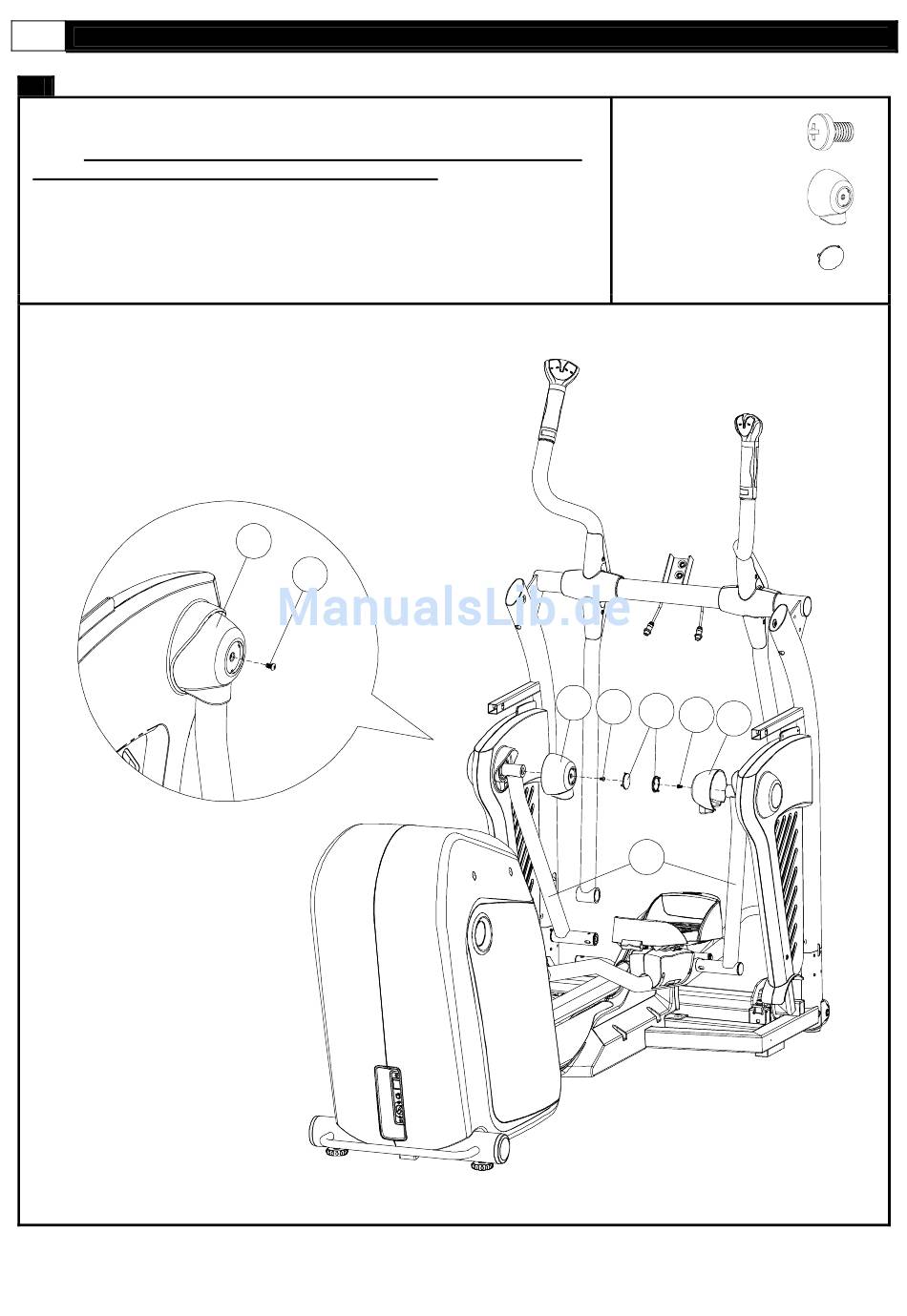

STEP 6: Assemble the Pivot Cap
NOTE: ALIGN THE 3 SNAP FIT TABS ON THE PEDAL SIDE CAPS (718)
WITH THE 3 SNAP FIT ON THE PEDAL CAPS (717).
(A) Assemble the Pivot Cap (717) to the Pedal Swing Arm (120) and secure
using the M5 x 8mm Screw (503).
(B) Press the Pedal Side Cap (718) to the Pedal Cap (717).
717
503
503
717
718
717
503
718
503
717
120
X2
X2
X2
