ASSEMBLY

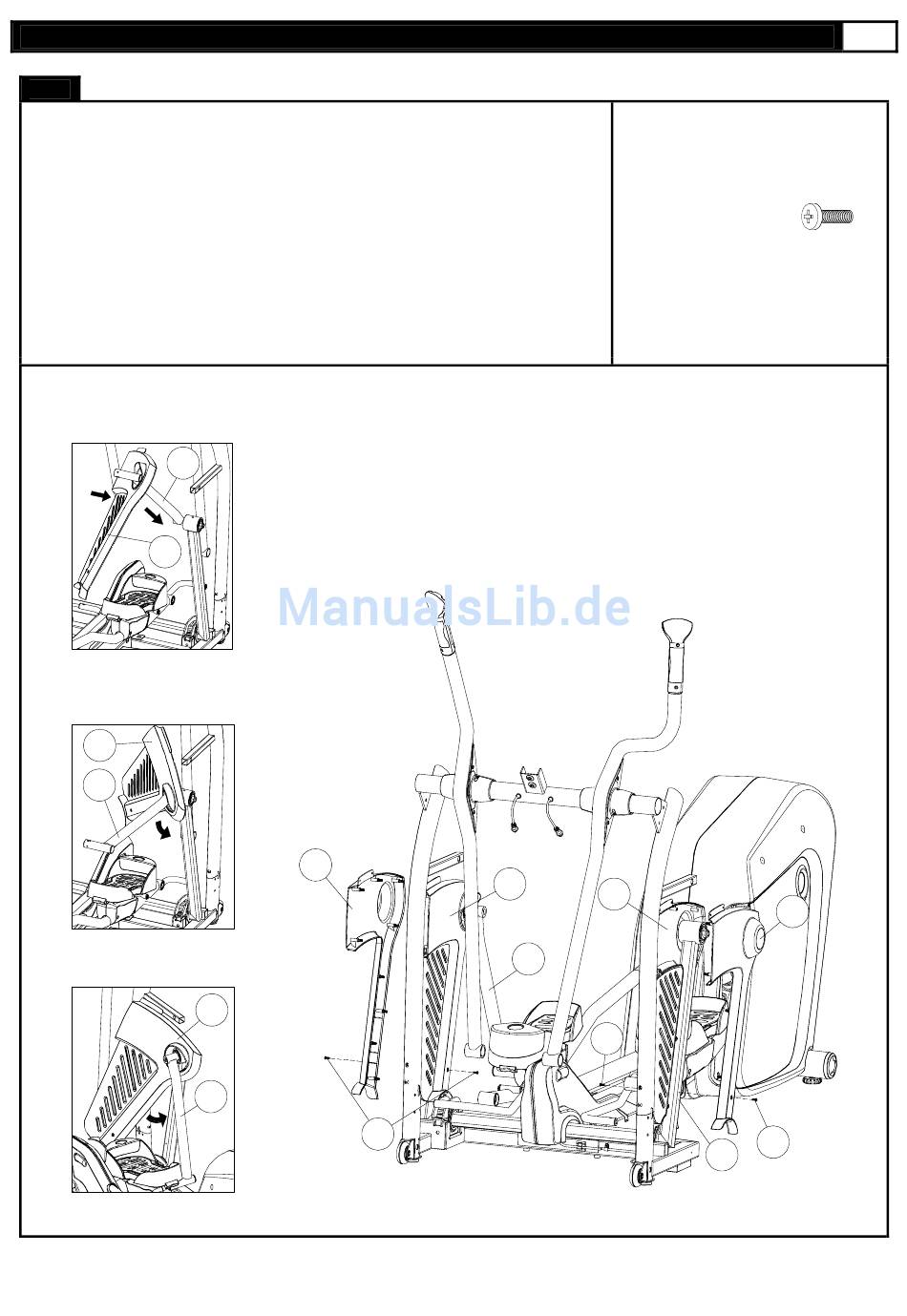

STEP 5: Attach the Pivot Arm Covers
(A) Thread the free end of the Pedal Swing Arm (120) through the hole in
the Pivot Arm Cover-RL (707) and maneuver the Pivot Arm Cover-RL
(120) to it's final upright position. See the illustrations in STEP1, STEP2,
and STEP3.
(B) Assemble the Pivot Arm Cover-RR (706) and the Pivot Arm Cover (707)
using the press-fit pins and secure to the frame using two 4 x 12mm
Screws (512).
(C) Repeat the above procedure to assemble the left side.
STEP1
120
707
STEP2
707
120
STEP3
707
120
706
512
www.smoothfitness.co.uk
512
707
705
120
512
25
X4
704
512
114
