13 channel mode
Channel:
1
2
3
4
Z-motor rotation
5
6
7
8
9
10
11
12
13

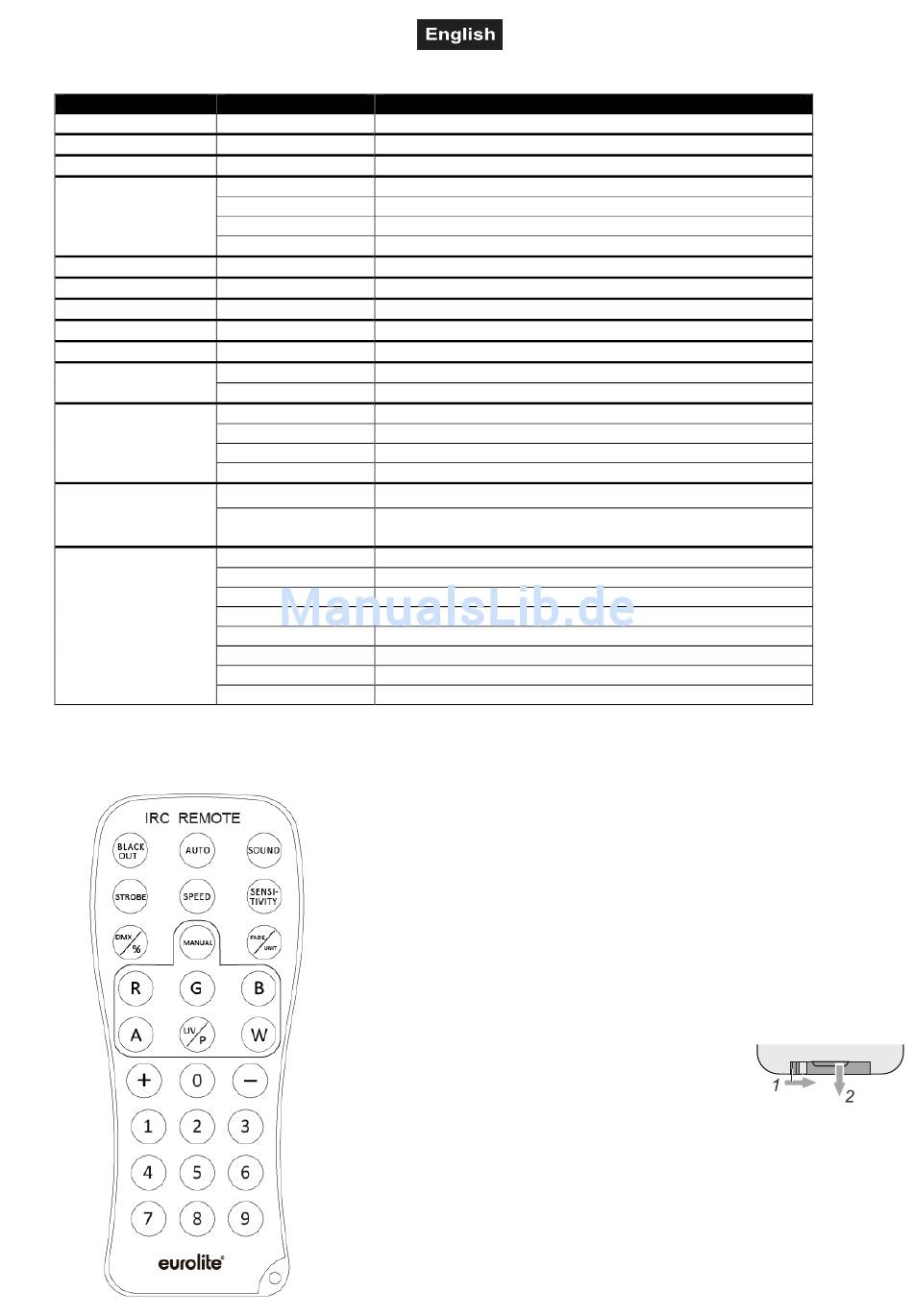

EUROLITE IR-7 remote control

Value: Function:
000 - 255 X-scan
000 - 255 Y-scan
000 - 255 Movement speed, increasing
000 - 011 Stop
012 - 127 Forward with increasing speed
128 - 139 Stop
140 - 255 Backward with increasing speed
000 - 255 Dimmer
000 - 255 Red
000 - 255 Green
000 - 255 Blue
000 - 255 White
000 - 009 No function
010 - 255 Strobe with decreasing speed
000 - 009 No function
010 - 099 LED group 1 on
100 - 199 LED group 2 on
200 - 255 LED groups 1 and 2 on
000 - 009 No function
LED groups 1 and 2:
010 - 255
Strobe with decreasing speed
000 - 069 No function
070 - 109 Blackout with Pan/Tilt
110 - 129 No function
130 - 149 Motor reset
150 - 169 No function
170 - 189 Auto mode via DMX
190 - 209 No function
210 - 255 Sound mode via DMX
1
The device must be activated for remote control. For this,
under menu item InFr, press the ENTER button to confirm
activation.
2
When actuating a button, always hold the remote control in
the direction of the sensor. There must be visual connection
between the remote control and the sensor.
3
The remote control is supplied with a battery inserted. An
insulating foil between the battery and the battery contacts
prevents the battery from being discharged during storage.
Prior to the first operation remove the foil from the battery
support on the rear side of the remote
control. Otherwise operation of the remote
control is not possible.
4
If the range of the remote control decreases
(10 meters as a maximum), replace the battery. For this
purpose, on the rear side of the remote control press the
small bar with the groove to the right and at the same time
remove the battery support. For operation, one 3 V button
cell type CR 2025 is required. When inserting, pay attention
that the positive pole of the button cell shows upwards in
the support.
26/28 00094089.DOC, Version 1.1
