4. Press both operating handles down simultaneously:
The splitting blade falls down and splits the log.
5. Release the two control handles, the splitting blade returns to
its initial position.
If you only release one control handle, then the splitting
blade remains where it is.
Special instructions for splitting logs:
Preparations:
The logs to be split should be cut to the maximum dimensions.
Ensure also that the logs are cut straight and square.
Place the log properly on the log splitter, so as not to cause any
risk of stumbling or falling to the operator.
Adjusting the stroke height
In case of shorter wood pieces the efficiency can be increased by
shortening the return of the splitting cutter.
1. Place the log on the
splitting table and press
the two control handles to
bring the splitting blade
down to approx. 2 cm
above the log.
2. Release one control handle so that the blade stays in this
position.
3. Switch the machine off and disconnect the power.
4. Release the second control handle.
5. Shorten the
Holding screw
return path at
the rod fitted to
the side by fixing
the holding
screw at the
necessary
height.

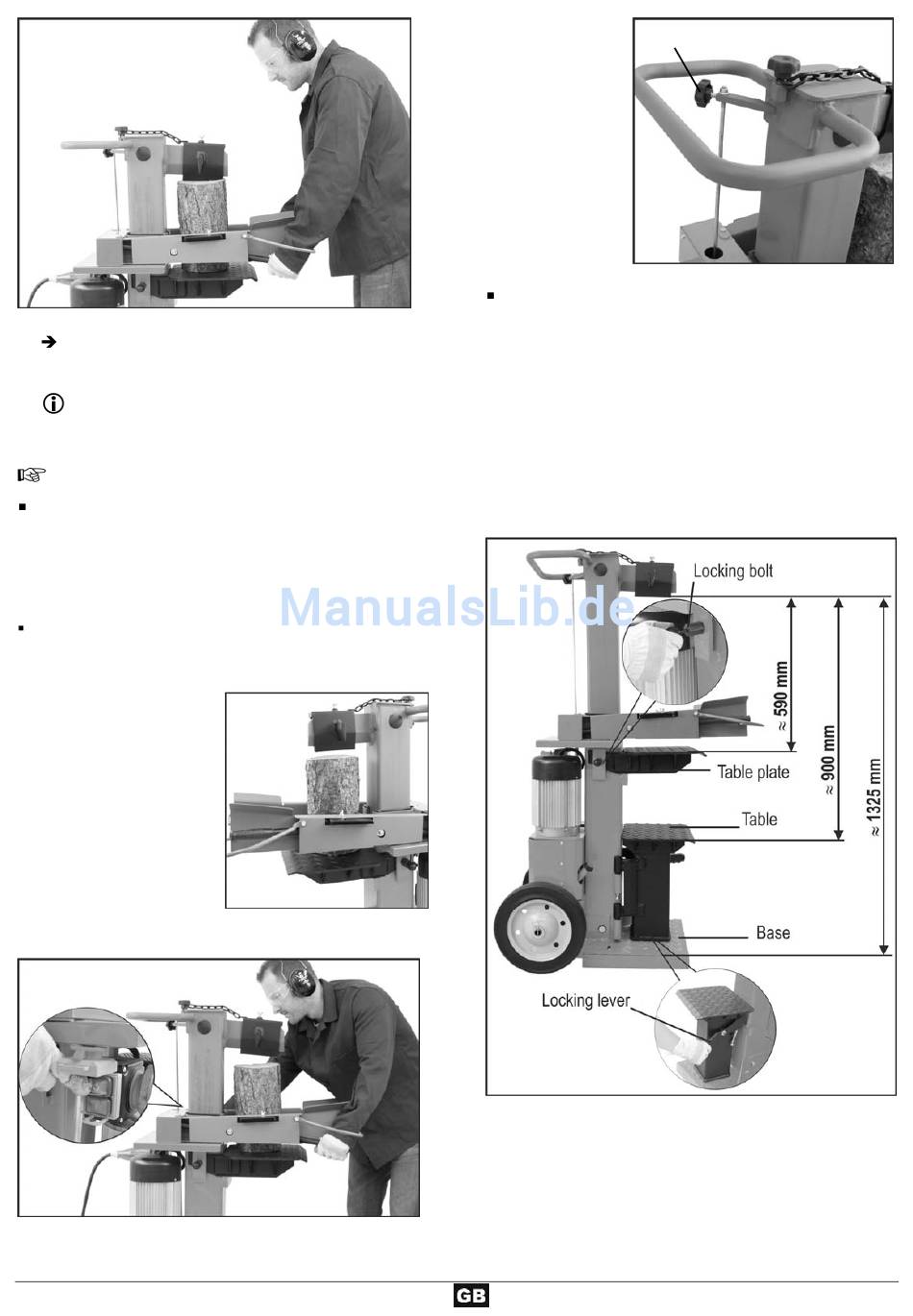

Adjusting the table height

Upper table plate position: 590 mm.
Middle table position: 900 mm.
Lower base position: 1325 cm.
1. Split logs up to 590 mm on the table plate.
Secure the table plate using the locking bolt.
(The locking bolt engages in the table plate hole.)
2. Split logs up to 900 mm on the table. Pull out the table
plate.
3. Split logs up to 1300 mm on the base. Press the locking lever
down and swing aside the table.
