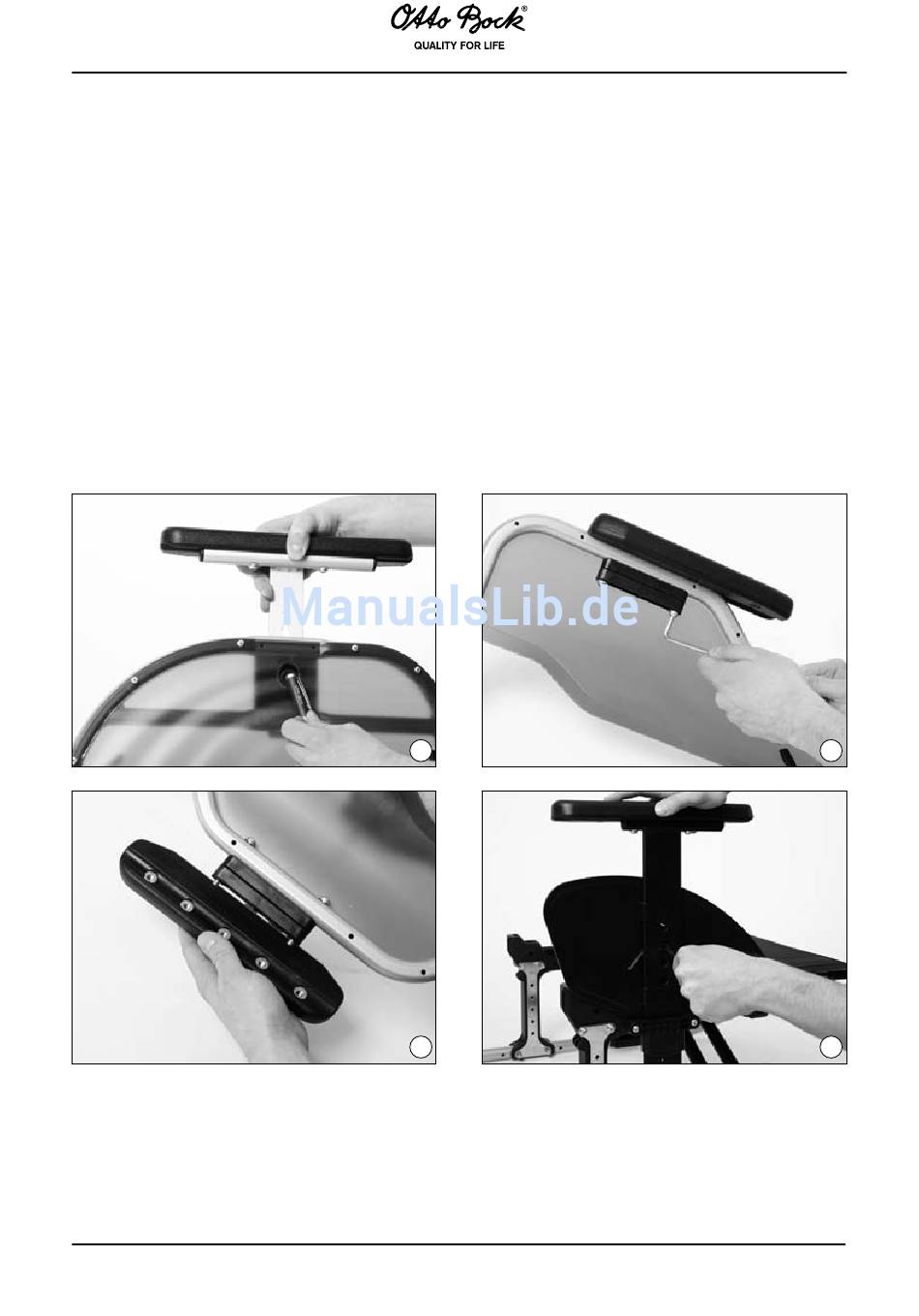

6.10 Adjusting the Height of the Armrest (Fig� 53–56)
The armrest can be adjusted in height by bringing it into different positions:
Desk side panel, height-adjustable: For height adjustment of the side panel, press the lock
button. Simultaneously, pull the armrest into the desired position (Fig. 53).
Desk side panel (standard/stepped): For height adjustment of the armrest, change the po-
sition of the spacers (Fig. 54/55). There are three possible height settings (both spacers are
positioned above/below the side panel tube or one spacer is positioned above the tube and
the other spacer below the tube). To bring the armrest into the highest position, remove the two
oval head screws completely from the tube bend. Then place the two spacers above the tube
bend between armrest and side panel tube. Re-attach the oval head screws. Make sure to firmly
retighten all screws and nuts after making adjustments.
Plug-on side panel: For height adjustment of the side panel you have to adjust the height of the
clothing protector. Press the counter-sunk lock button using a ball point pen / key / screwdriver,
etc. (Fig. 56). Move the clothing protector into the desired position.
