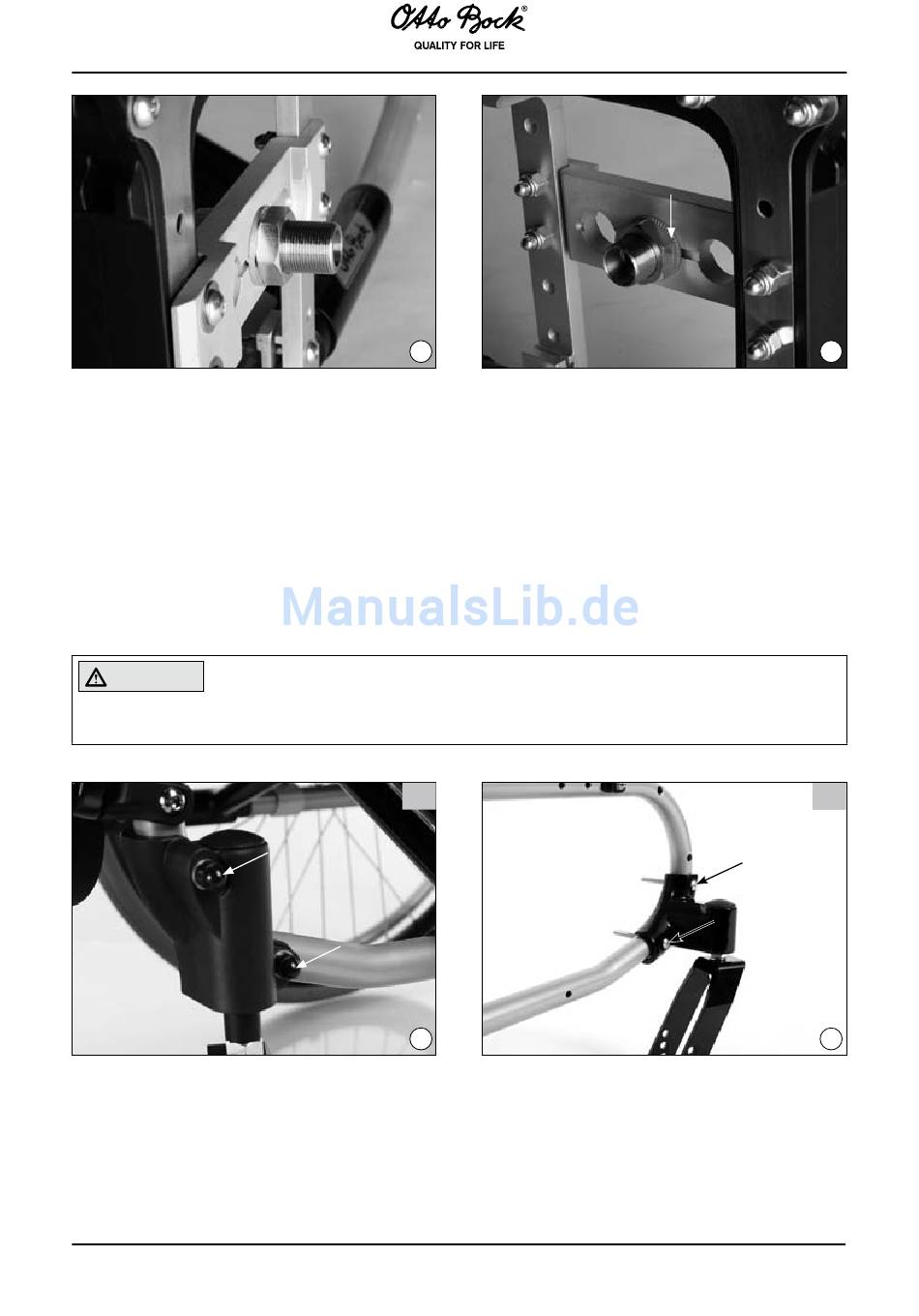

6.4 Caster Trailing Adjustment (Fig� 45)
After the rear wheels have been mounted in the appropriate position, the caster wheel journal
angle must be readjusted. The threaded axle should be as vertical as possible in relation to the
ground to ensure optimal driving behaviour of the wheelchair. The caster adapter allows for
continuous angle adjustment.
Loosen the two screws between caster adapter and frame (Fig. 45 A/B). Now you can move
the caster adapter along the frame tube. The level (included in delivery) will help you position
the threaded axle as vertically to the ground as possible. Finally, retighten all screws.
CAUTION
The correct torque for the screws is 8 Nm. The correct torque for the screws in case of mounted foot
space enlargement (only M3) is 10 Nm.
66
43
A
45
44
B
45
