6.3 Setting the Wheel Camber – Only Start M5 Comfort (Fig� 41–44)
The rear wheel adapters of the Start M5 Comfort allow for different camber angle settings of
the rear wheels (0° and 2.5°). The greater the negative camber angle of the rear wheels, the
more manoeuvrable the wheelchair becomes (Fig. 41).
The rear wheel adapter itself has a wheel camber of 0° or 2.5°, depending on the arrangement
of the wedge-shaped camber washers. The wheel camber can be changed by turning round
the mounted camber washers. Proceed as follows:
First disassemble the nuts on the rear wheel fitting.
Setting the rear wheel camber to 0°: If applicable, remove the camber washer from the inside
of the rear wheel adapter and place it against the washer on the outside of the adapter such
that the thinner side of the washer is next to the thicker side of the other washer (Fig. 42).

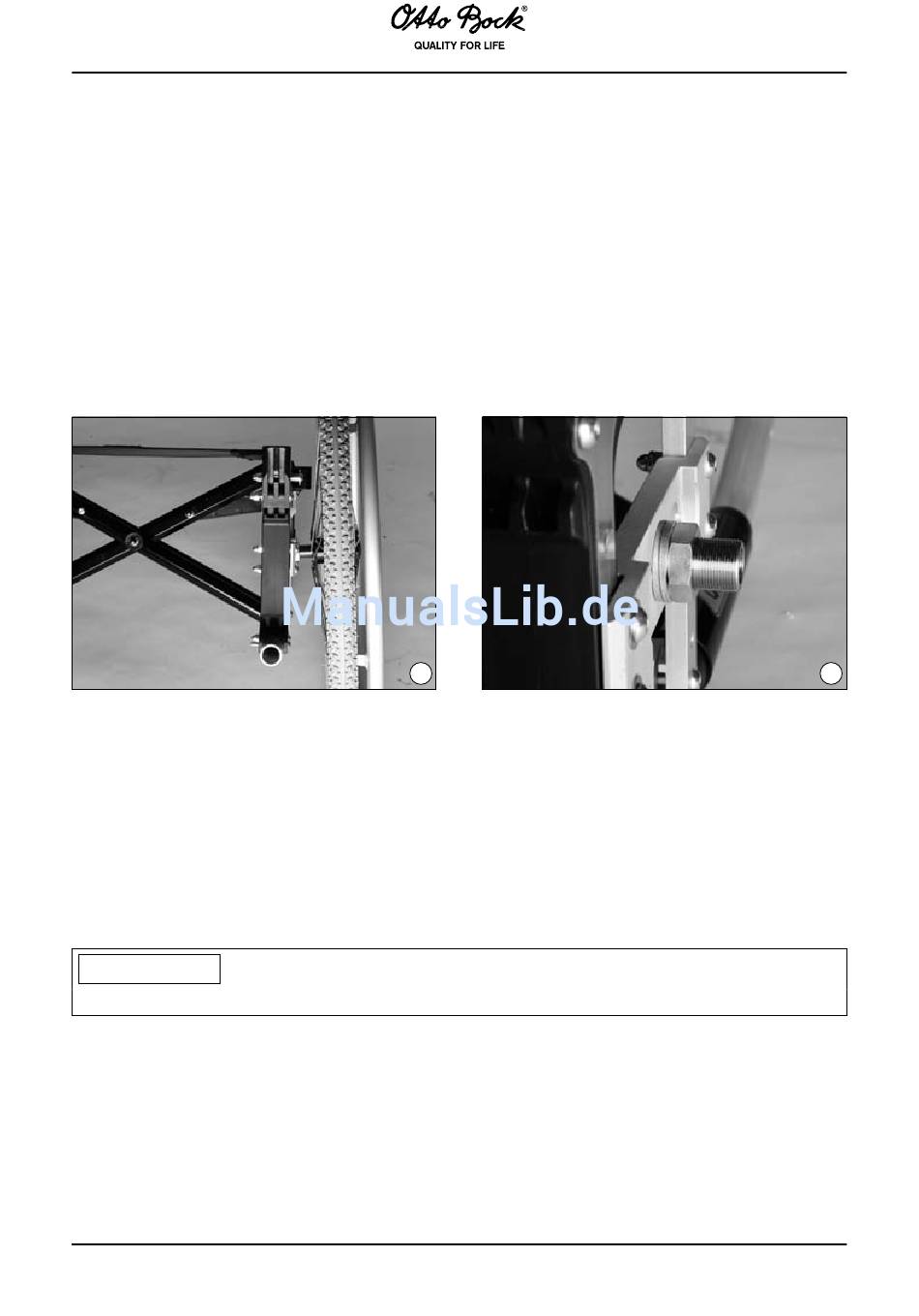

41 42
Setting the rear wheel camber to 2�5°: Position the camber washer with the thinner side point-
ing upwards into the desired engaging position (Fig. 43) on the outside of the rear wheel adapter.
Place the second camber washer with the thicker side pointing upwards into the corresponding
engaging position on the inside of the rear wheel adapter.
further proceeding: Once you have applied the retaining washer from the inside (Fig. 44, ar-
row), slightly tighten the nuts on the rear wheel fitting. Check the space between the rear wheel
and the side panel. You can adjust the space by rotating the fitting.
To finish, tighten the nuts of the rear wheel fitting.
INfORMATION
Observe the values indicated in section 6.1.
