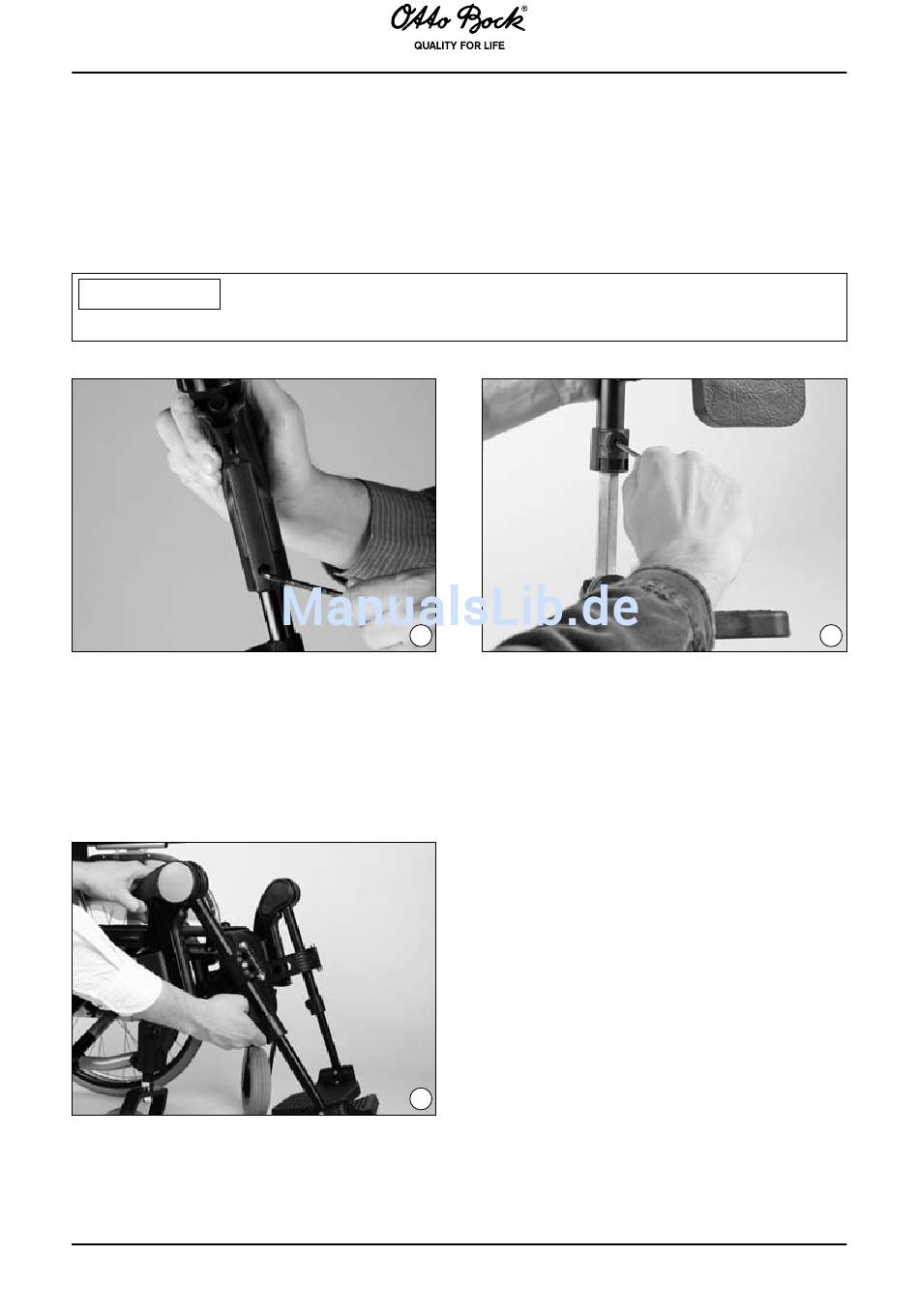

6.8 Adjusting the Lower Leg Length (Fig� 50/51)
By loosening the set screw, the footplate can be adapted to your lower leg length and to the
thickness of your seat cushion (standard footrest = Fig. 50; elevating footrest = Fig. 51).
Make sure during adjustment that the footrest bar is slid into the swivel segment at least 40 mm.
A mark on the footrest bar also indicates the minimum distance the bar must be inserted dur-
ing installation.
INfORMATION
After having made adjustments, retighten the set screw to a torque of 6 Nm.
6.9 Adjusting the Angle of the Elevating Footrest (Fig� 52)
To adjust the footrest angle, turn the release lever until it hits the stop.
While propping up the footrest bar, set the desired angle. Then carefully let the release lever
turn back. At the next free position, the footrest will snap into place.
50
52
51
69
