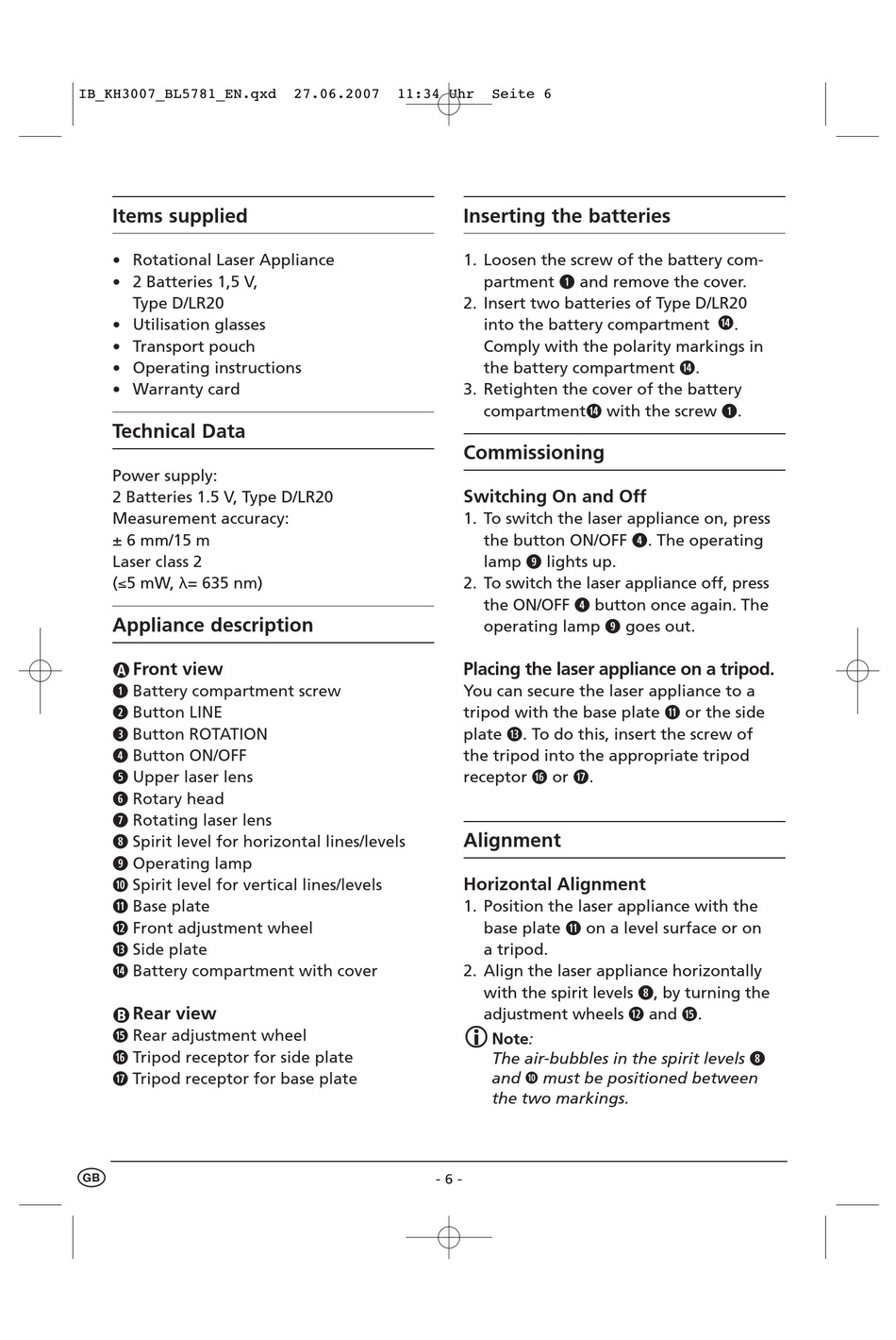

Items supplied
• Rotational Laser Appliance
• 2 Batteries 1,5 V,
Type D/LR20
• Utilisation glasses
• Transport pouch
• Operating instructions
• Warranty card
Technical Data
Power supply:
2 Batteries 1.5 V, Type D/LR20
Measurement accuracy:
± 6 mm/15 m
Laser class 2
(≤5 mW, λ= 635 nm)
Appliance description
Front view
q
Battery compartment screw
w
Button LINE
e Button ROTATION
r
Button ON/OFF
t
Upper laser lens
y
Rotary head
u
Rotating laser lens
i
Spirit level for horizontal lines/levels
o Operating lamp
a
Spirit level for vertical lines/levels
s
Base plate
d
Front adjustment wheel
f
Side plate
g Battery compartment with cover
Rear view
h
Rear adjustment wheel
j
Tripod receptor for side plate
k Tripod receptor for base plate
27.06.2007 11:34 Uhr
Inserting the batteries
1. Loosen the screw of the battery com-
2. Insert two batteries of Type D/LR20
3. Retighten the cover of the battery
Commissioning
Switching On and Off
1. To switch the laser appliance on, press
2. To switch the laser appliance off, press
Placing the laser appliance on a tripod.
You can secure the laser appliance to a
tripod with the base plate
plate
the tripod into the appropriate tripod
receptor
Alignment
Horizontal Alignment
1. Position the laser appliance with the
2. Align the laser appliance horizontally
- 6 -
Seite 6
partment q and remove the cover.
into the battery compartment
Comply with the polarity markings in
the battery compartment
compartment g with the screw
r
the button ON/OFF . The operating
lamp o lights up.
the ON/OFF r button once again. The
operating lamp o goes out.
f . To do this, insert the screw of
j or k .
base plate s on a level surface or on
a tripod.
i
with the spirit levels
adjustment wheels d and
Note:
The air-bubbles in the spirit levels
and a must be positioned between
the two markings.
g
.
g .
q .
s or the side
, by turning the
h .
i
