Installation; Minimum Clearances - EOS 46.U compact Montage- Und Gebrauchsanweisung

Delivery scope
Delivery scope includes:
1 sauna oven
1 cover protection safety grill with clamps
1 warning shield
1 wooden funnel
1 silicone hose 1 m
4 pcs. mounting screws
10 kg sauna stones

Installation

Specifications
Voltage: 400 V AC 3N 50 Hz
Power consumption: 4,5 - 7,5 kW
Height: 870 mm
Width: 920 mm
Depth: 200 mm
Stone filling: 10 kg
Leakage current: max. 0.75 mA per kW heating
capacity.
Intended use: sauna heater for use in a domestic
sauna.
The sauna heater is intended for a connection
voltage 400 V AC 3 N via a sauna control unit.

Minimum clearances

The minimum height of the sauna cabin must
be 1.90 m on the inside.
The vertical gap between the top of the heater
and the sauna ceiling must be at least 90 cm, the
horizontal gap between the heater and sauna
wall must be at least 7 cm.
The gap between the heater and partition wall,
sauna bench or other combustible materials
must be at least 2 cm.
The included safety grille must be installed
above the oven along the upper edge of the
partition wall as shown on Fig 2 and 2a.
The safety grille ensures that objects may not
accidentally fall onto the heater.
Important notice for temperature
sensor installation
Contradictory to the instruction concerning
the standard position of the sensor of the
sauna control unit, the main temperature
sensor should be mounted as shown in the
diagram Fig 2 and 2a.
Pay attention to the correct size and
position of the air supply vent and duct vent.
70
* for cabins up to 2 x 2 m
** for bigger cabins
190*
390**
200
air
intake
All dimensions in mm

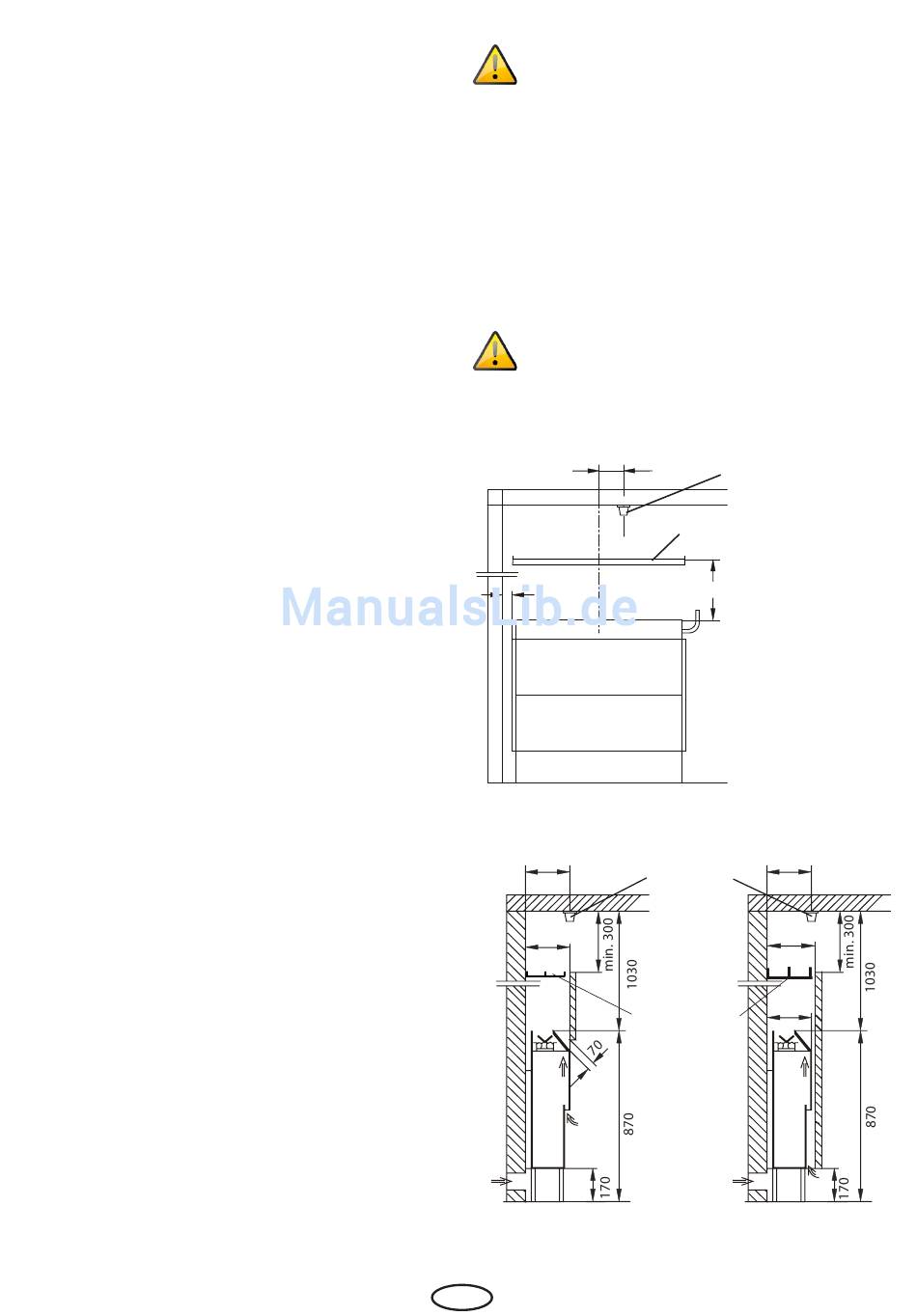

Fig. 2
GB
200
heater sensor
safety grille
730
190*
390**
temp. sensor
220
200
Cover protection
safety grill
air
intake
Fig. 1
Fig. 2a
21
