Installation
The sauna heating unit is designed for a default
supply voltage of 400V 3N ~.

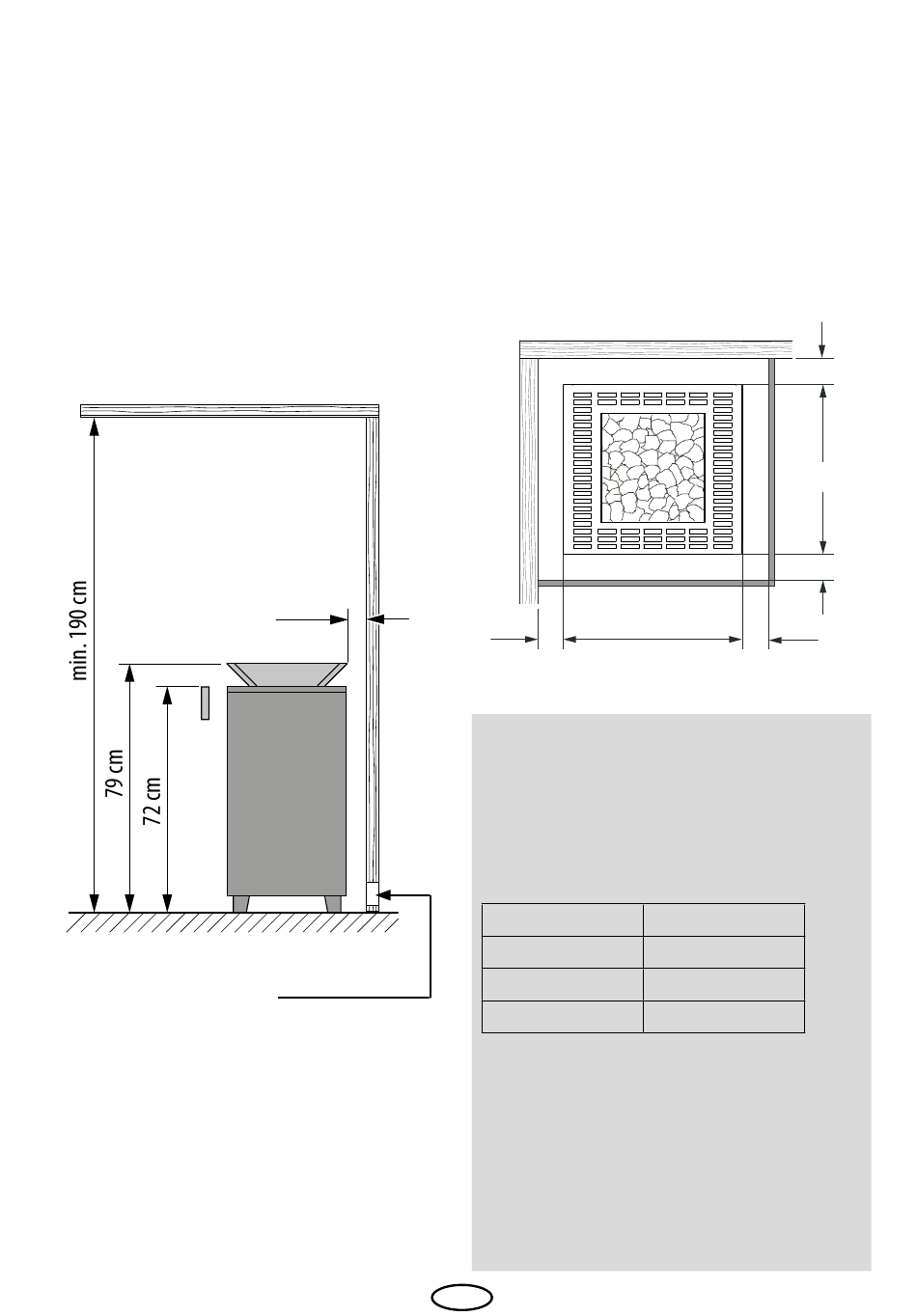

Mindestabstände
• The minimum height of the sauna cubicle is
1.90 m on the inside (Fig. 1)
cabin ceiling
Fig. 1
Optional accessories
The heater guard rail does not belong to the
scope of delivery and can to be ordered sepa-
rately as an optional equipment (page 24).
The installation is described in a separate
manual.
6 cm
Cubo Avantgarde
Ventilation in the
lower area required
• When installing the sauna heater, make sure
that the horizontal (side) distance between
the heater and the cabin wall is at least 6 cm
(Fig. 2).
• The distance from the heater grid and the
bench to other inflammable materials near
the heater must be at least 6 cm. The heater
grid must be more or less the same height as
the front of the heater.
cabin wall
stove guard
6 cm
Attention! Make sure to provide an air
intake vent below beneath the sauna
heater. The air intake vent and the exhaust
air vent should have the appropriate size
as per heater power:
9,0 kW
10,0 kW
10,5 kW
12,0 kW
Make sure there is a stable fresh air supply
through the air intake vent.
The lack of the sufficient fresh air supply
may cause overheating and lead to dam-
ages of the sauna heater. The warranty
will be void in such case.
EN
6 cm
38,5 cm
6 cm
40 cm
6 cm
35 x 6 cm
35 x 6 cm
35 x 6 cm
35 x 7 cm
Fig. 2
27
