Attach a warning shield near the water
funnel.
Mounting the water funnel
Water splash effects through the supplied wa-
ter funnel via the silicone hose and the L-shape
elbow attached to the heater.
The connection may be on the left or on the
right hand side. Depending on the connection
side you may need to turn the water distri-
bution gutter inside heater around, so that
this gutter, so that it declines from the water
connection point to the opposite end.
To do this loosen two fixation screws on both
ends of the gutter, take it out of the heater,
turn it around, place it back into position and
secure it again with the fixation screws.
Insert the elbow (angled tube piece) into the
hole above the gutter on the side wall of the
heater. Make sure it sits tightly.
Mount the funnel at the suitable place to the
sauna wall or partition wall with 2 screws.
Pay attention that the funnel should be placed
well above the gutter level.
Connect the funnel and the connector with the
silicone tube. The tube should decline to the
connector, the contact with the heater must
be avoided.
22
stone basket
ATTENTION
The infusion occurs retarded. Pour the water
with a ladle in small portions into the funnel.
The water will flow down to the sauna rocks in
the oven by the silicone hose and will be evenly
distributed over the rocks thanks to the special
Fig. 3
water gutter inside the heater.
The uprising hot air will distribute the steam
across the sauna cabin, creating the famous
"steam shock" effect.
Remember that the sauna rocks must heat up
again after each infusion in order to produce an
intensive steam.
Pay attention that only a limited amount of
water may be evaporated at a time. Therefore,
wait approximately 8 to 10 minutes for the next
water splash.
ATTENTION
Make sure to install the supplied safety grill
above the sauna heater as shown on previous
page - see fig. 1, fig. 2 and fig. 2a.
Pay attention to safety gaps. Risk of fire!
GB

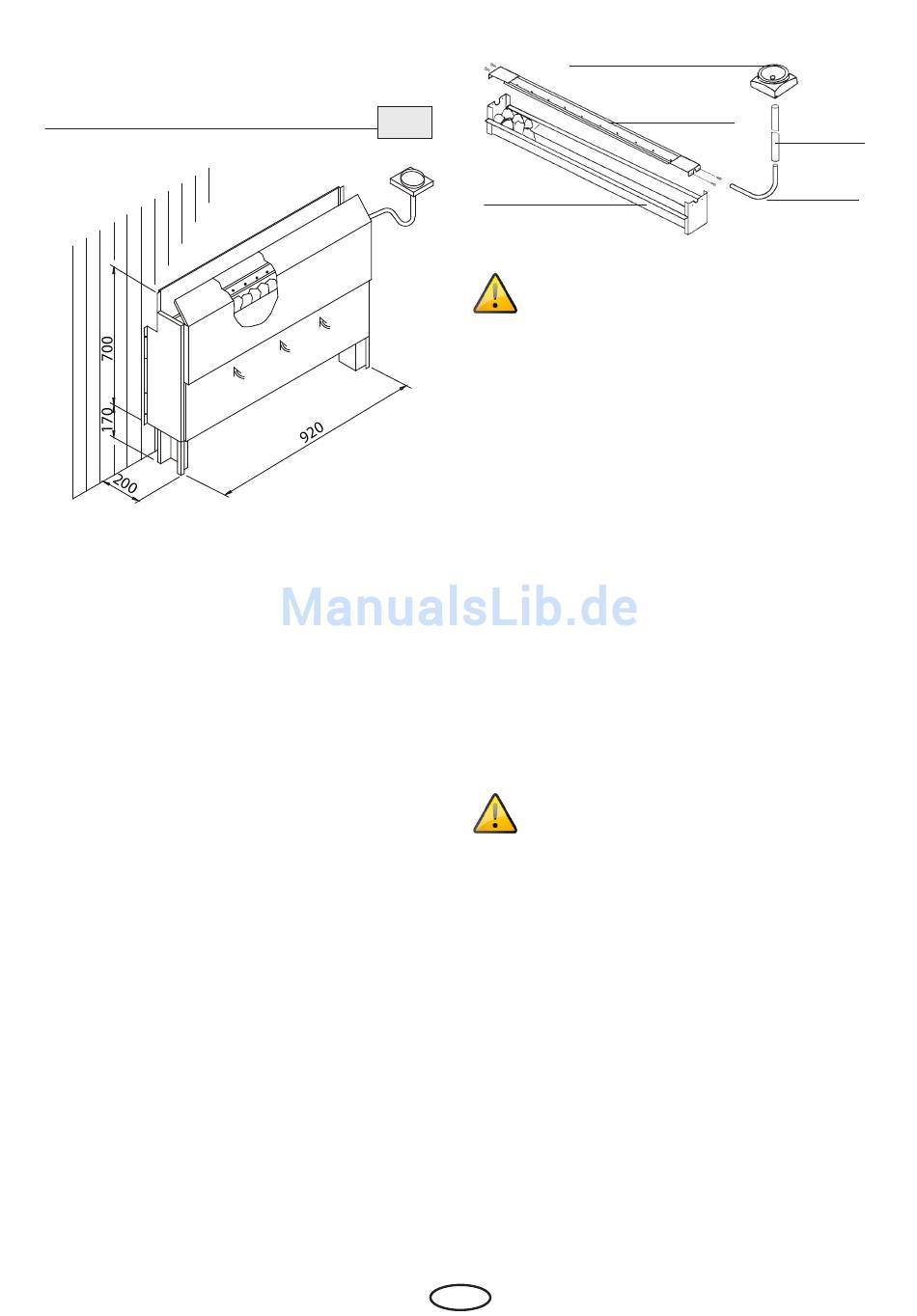

water funnel
