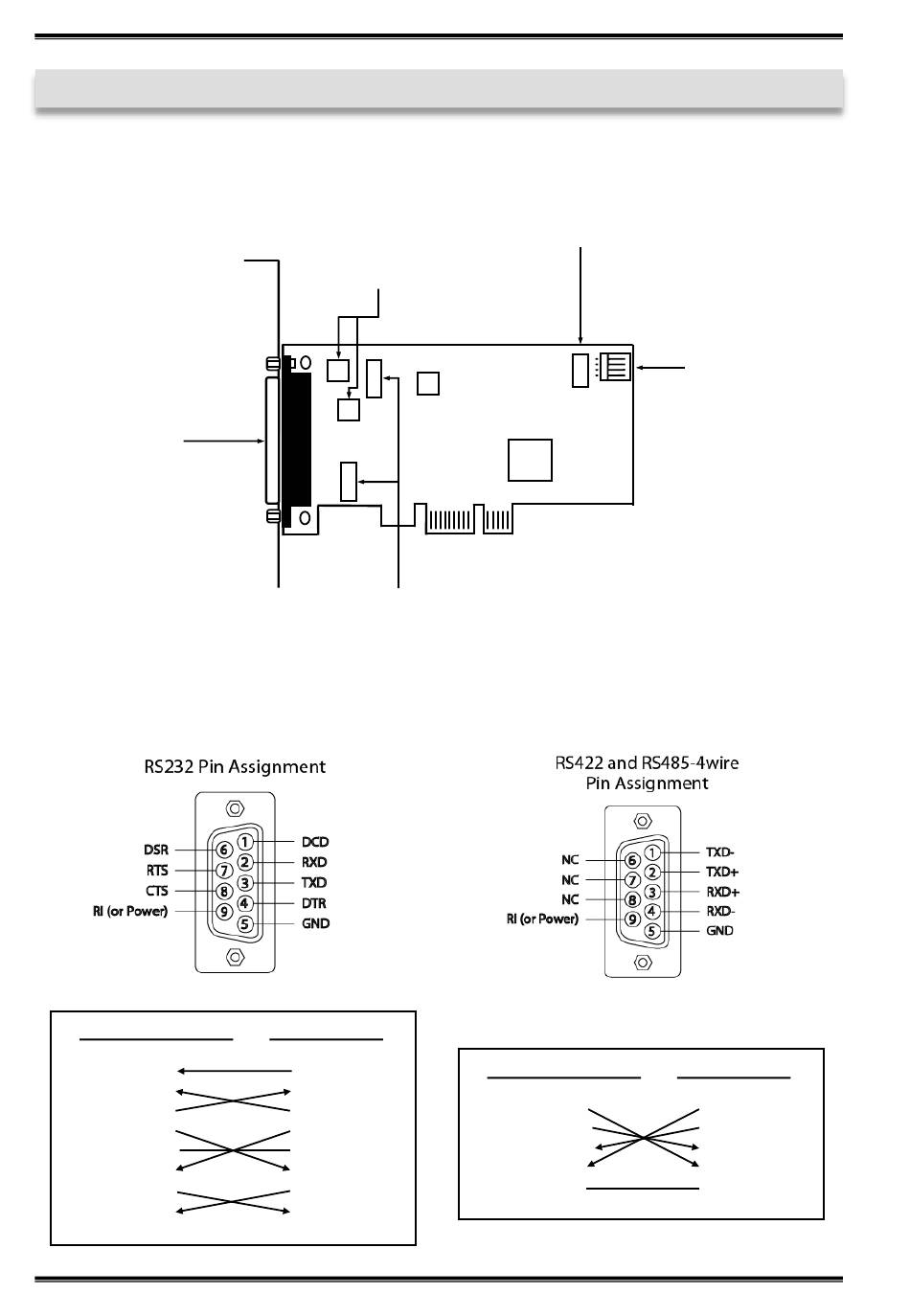

3. Layout and Connections

3.1 Layout

S1-S2:
25 Pin connector
for octopus cable
with 2 x 9 Pin
serial connector

3.2 Connections

DB9 (EX-45362IS)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
S1_PWR-2_PWR:
Power to 9 Pin
connector On / Off
1
1
2
2
S1_MODE-S2_MODE:
Mode & Terminator Switch
DB9 (Device)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
12
JP1: Select the power over
Power Supply or PCIe Bus
DB9 (EX-45362IS)
1 TXD-
2 TXD+
3 RXD+
4 RXD-
5 GND
EX-45362IS
J2: Connector for
Power Supply
DB9 (Device)
1 TCD-
2 TXD+
3 RXD+
4 RXD-
5 GND
