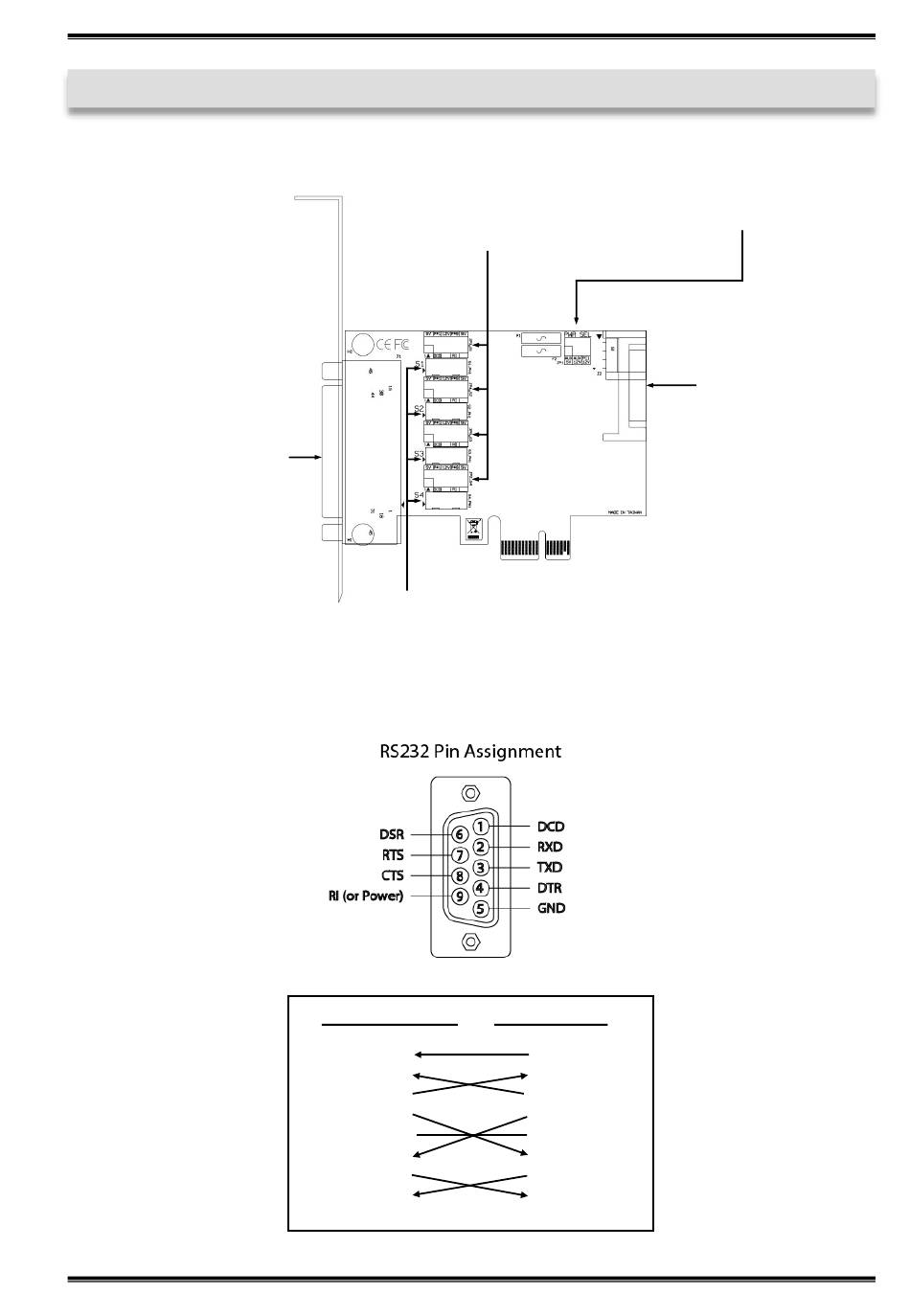

3. Layout and Connections

3.1 Layout

S1-S4:
44 pin connector to
4 x 9Pin serial connectors

3.2 Connections

© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
S1-S4_PWR:
Power to Pin 1
or Pin 9 On/Off
S1-S4-PH:
Internal serial headers
DB9 (EX-44354) DB9 (Device)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
11
JP1: Select the power over Power
Supply or PCI-Express Bus
J3: Connector for PC
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
