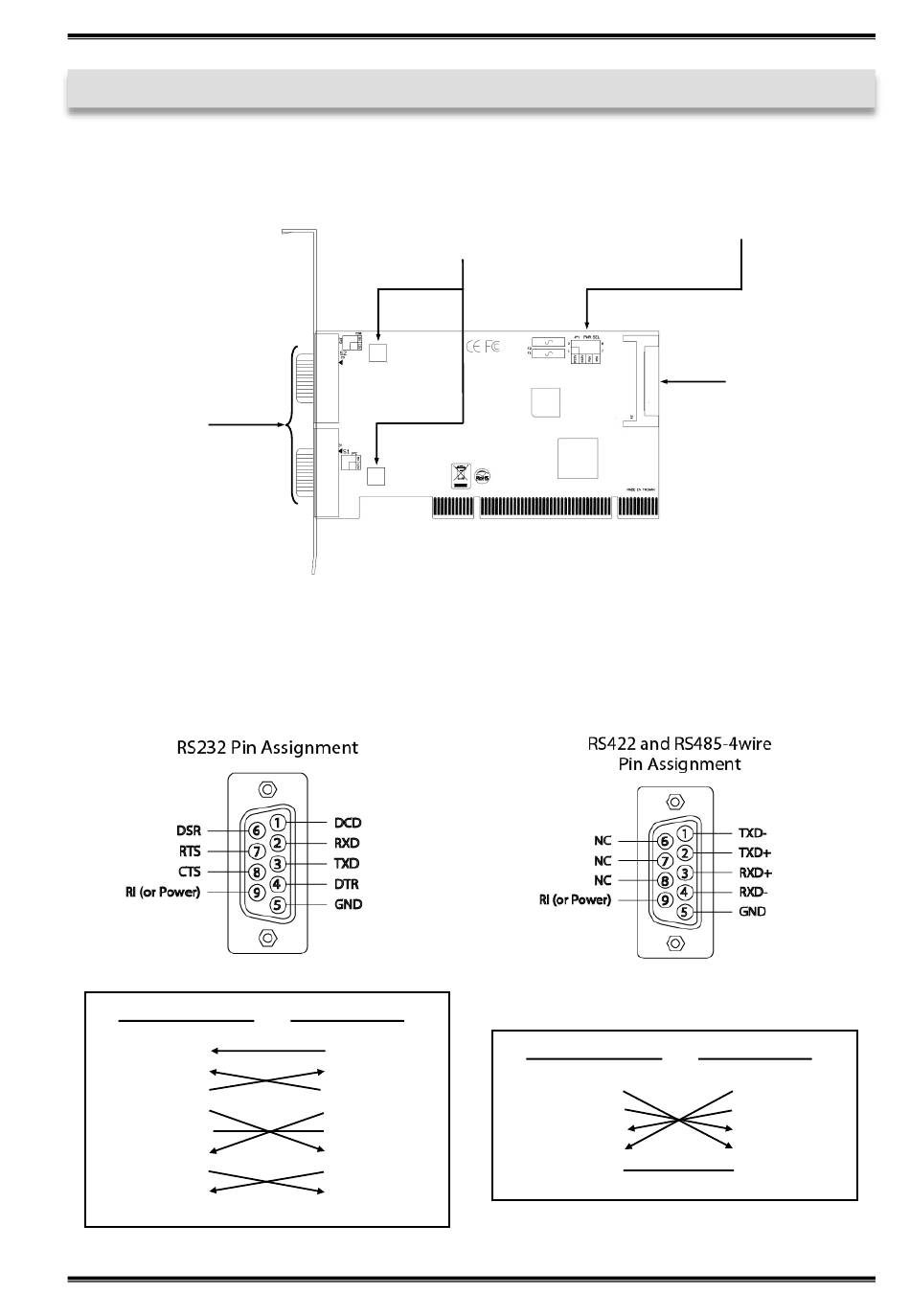

3. Layout and Connections

3.1 Layout

S1 & S2:
9 Pin Male
Serial Connector

3.2 Connections

DB9 (EX-42032)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
JP2 & JP3:
5V or 12V to Pin 9
of the Serial Connector
DB9 (Device)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
13
JP1: Jumper for the Power Source
(Power Supply or PCI Bus)
DB9 (EX-42032)
1 TXD-
2 TXD+
3 RXD+
4 RXD-
5 GND
English
J4: Connector for
Power Supply
DB9 (Device)
1 TCD-
2 TXD+
3 RXD+
4 RXD-
5 GND
