Installation instructions, only for experts

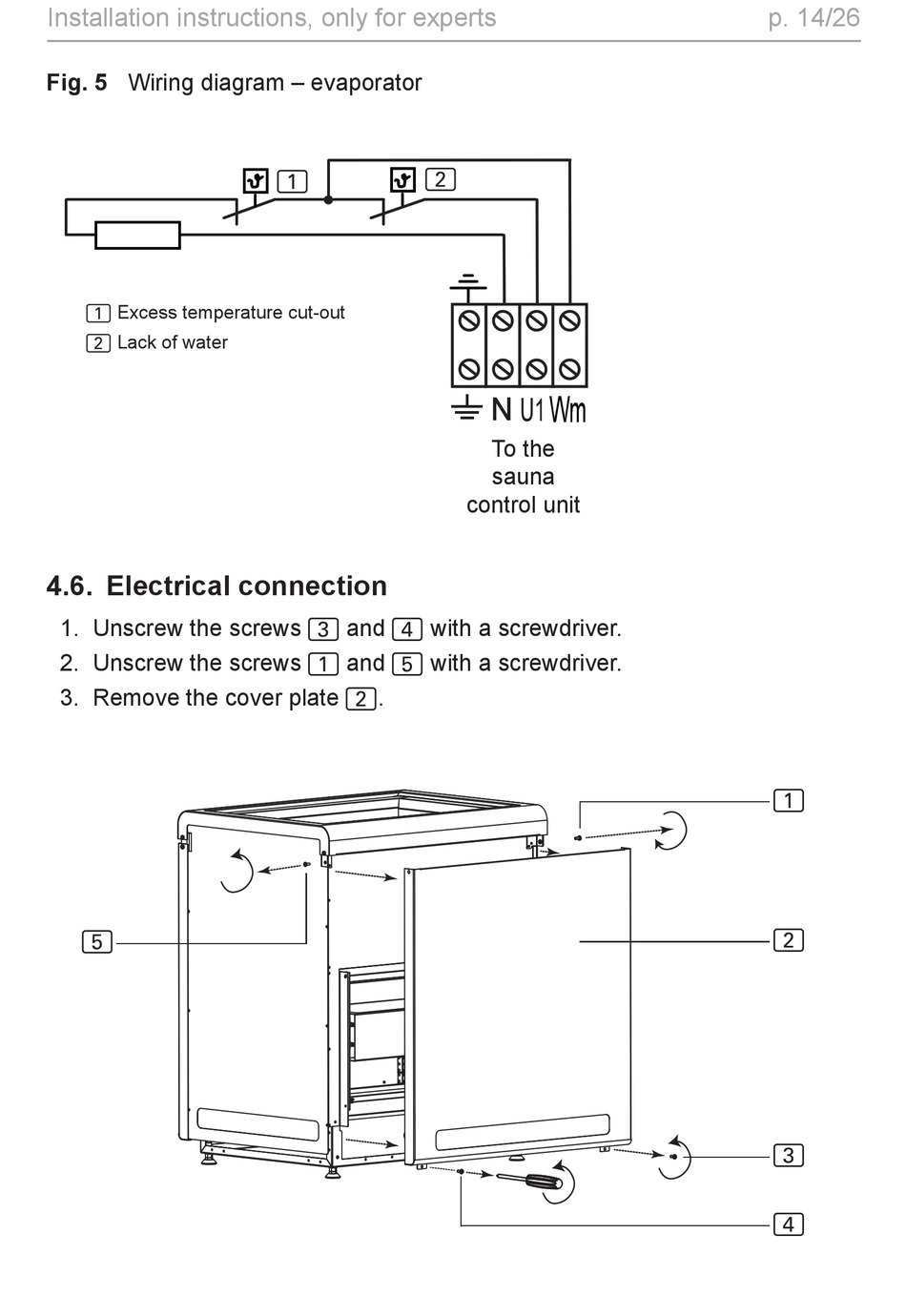

Fig. 5 Wiring diagram – evaporator
1 Excess temperature cut-out
2 Lack of water

4.6. Electrical connection

1. Unscrew the screws 3 and 4 with a screwdriver.
2. Unscrew the screws 1 and 5 with a screwdriver.
3. Remove the cover plate 2.
5
2
1
N
U1
To the
sauna
control unit
p. 14/26
1
2
3
4
