The room thermostat transfers commands to the actuator
mounted on the heater in a cyclic time pattern with a cycle
time between 120 and 184 seconds. The actuator confirms the
transferred radio command and controls the heat transfer feed
accordingly.
Defining a preset temperature or managing the time program
in the room thermostats can also be done comfortably with
a graphic interface for making temperature changes with the
HomeMatic center. Controlling continues to be performed self-
sufficiently by the room thermostat in the respective room.
Teaching one or more shutter contacts or window rotary handle
sensors to the room thermostat, the window position (open/
closed) can be evaluated and integrated into the control algo-
rithm.

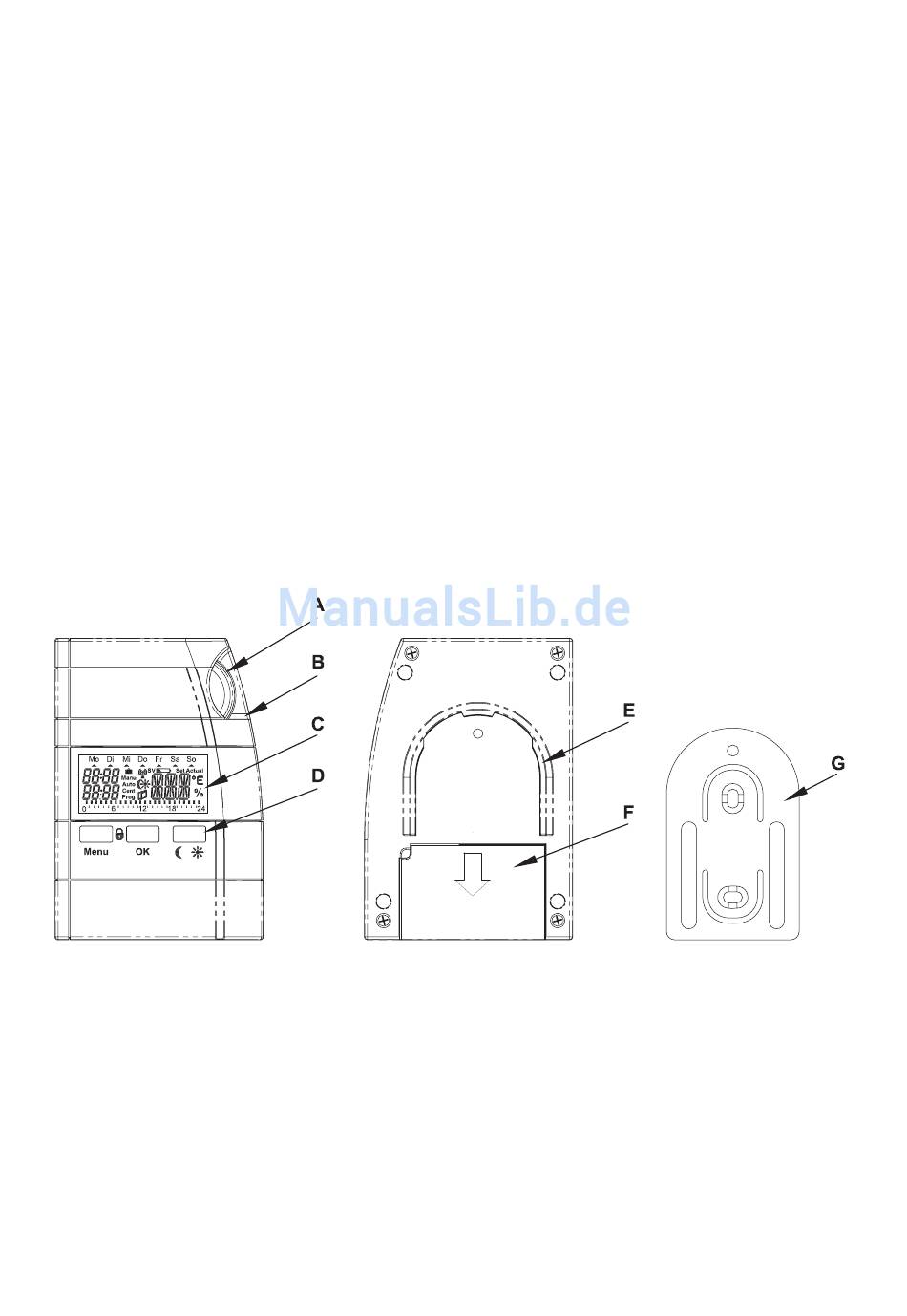

(A) Setting dial (for data entry)
(B) Device LED
(C) Display
(D) Control buttons (Menu, OK, Day-/Night switch)
(E) Wall holder mount
(F) Battery compartment
(G) Wall holder
