6.2

Installation

6.2.1

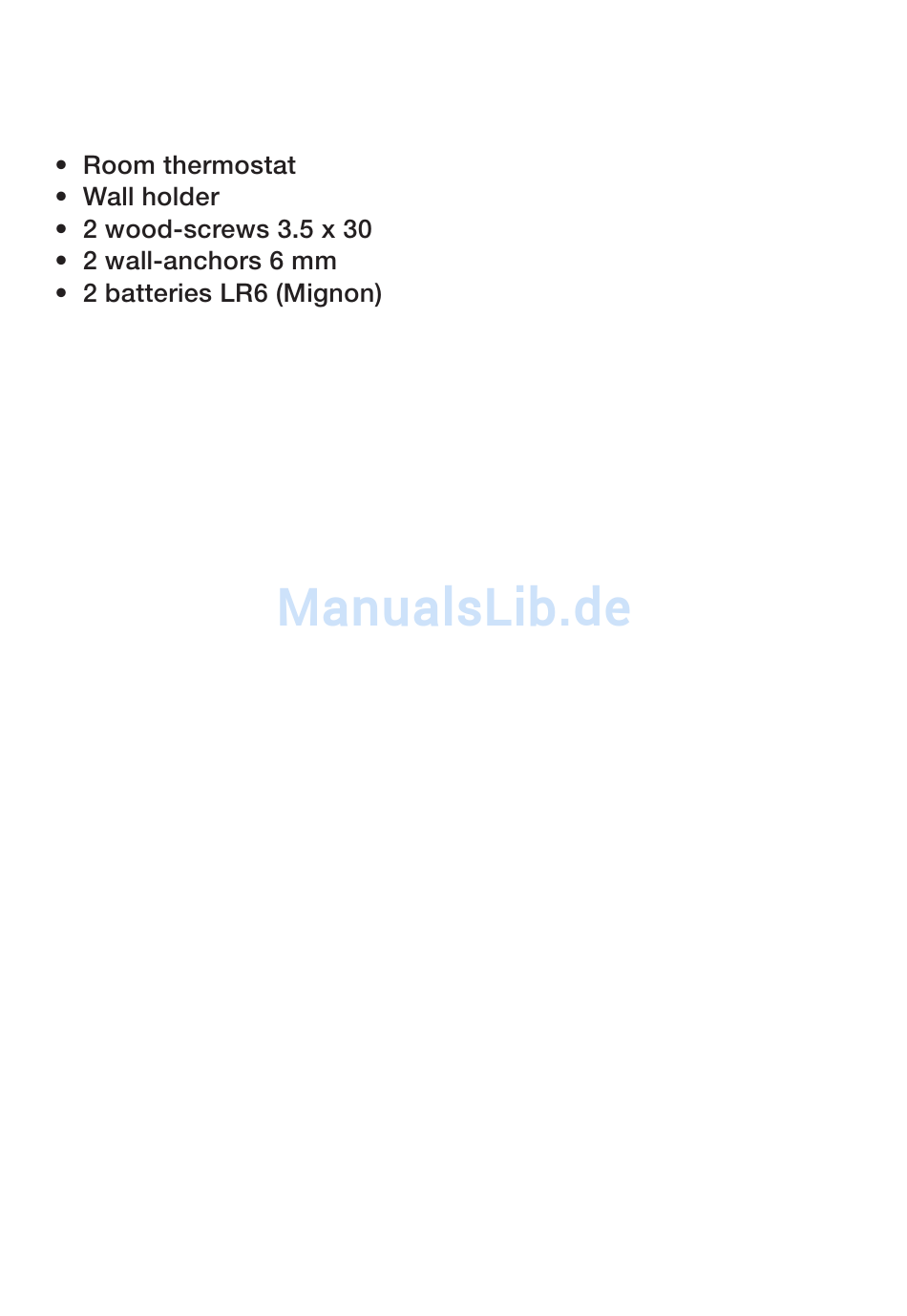

Scope of delivery

6.2.2

Mounting the wall holder

Mark the bore holes using the wall holder for mounting the room
thermostats on the wall. Position the wall holder with the semi-
circle formed side to the top and the side with the small hemi-
spherical formed indentation in the top part to the front. Mark a
position in the middle of the elongated holes for the screws.
Use a 6 mm drill bit to drill the fastening holes and use the
provided wall-anchors and screws for fastening. Before you
fully tighten the screws for the wall holder, you can use a level
to make the final alignment adjustments and then tighten the
screws snuggly.
40
