Steps to Take
1.
Only for the operation without Power over Ethernet: Remove the bridge
plug from the corresponding jack marked with
telephone.
2.
Only for the operation without Power over Ethernet: Insert the RJ-45 con-
nector of the power supply into the jack labelled with
of the telephone.
Do not set up the connection to the 230 V mains supply before the tele-
phone is actually commissioned.
3.
If operated with two or three key extension modules: Insert the RJ-45 con-
nector of the power supply into the jack labelled with
of the key extension module.
Do not set up the connection to the 230 V mains supply before the tele-
phone is actually commissioned.

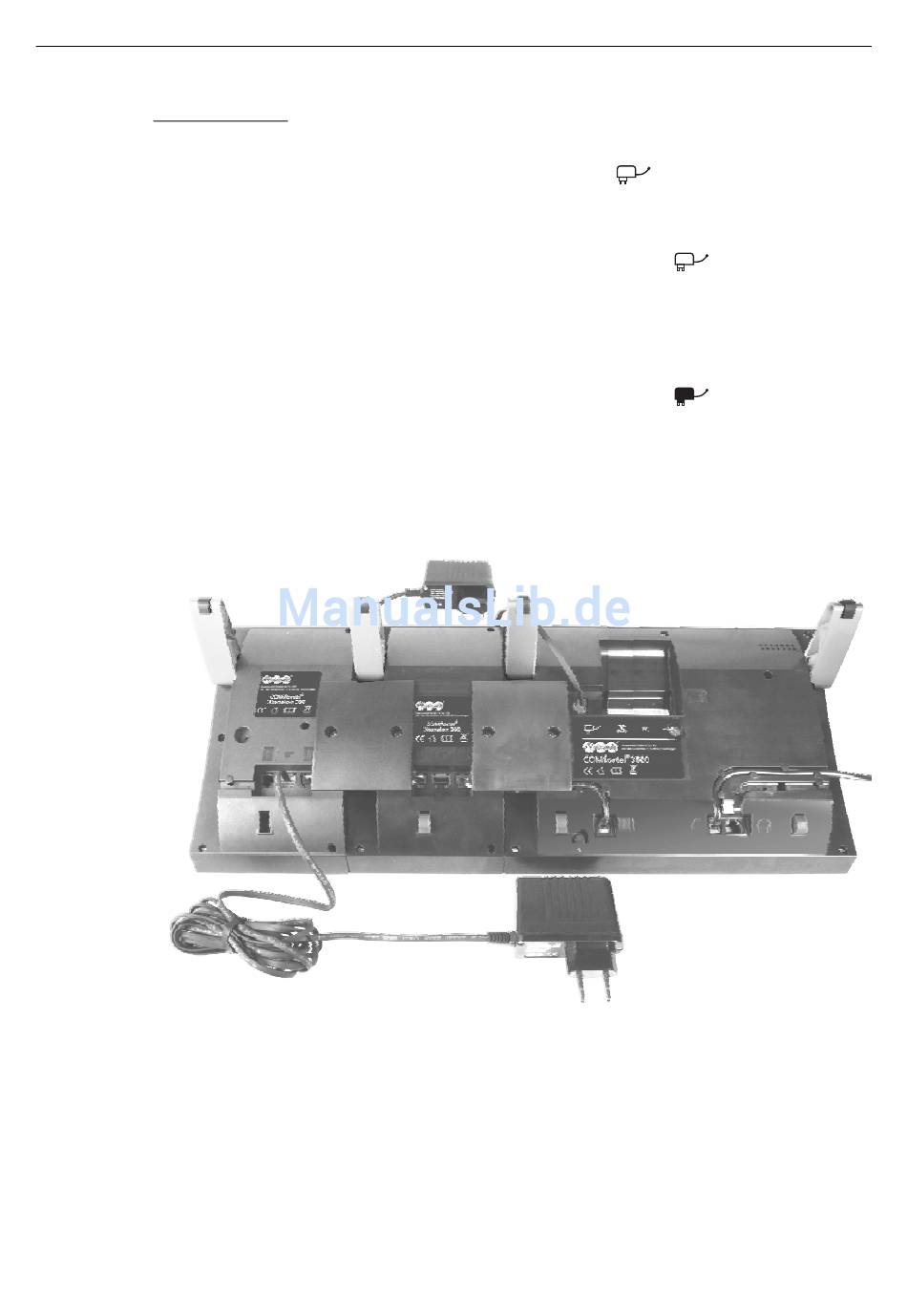

Fig. 8: Connecting the power supply plugs
