Fig. 4 Hook Height Control; Fig. 5 Glass Elements Fixing; Fig. 6 Control Panel - Igloo GASTROLINE CUBE Bedienungsanleitung

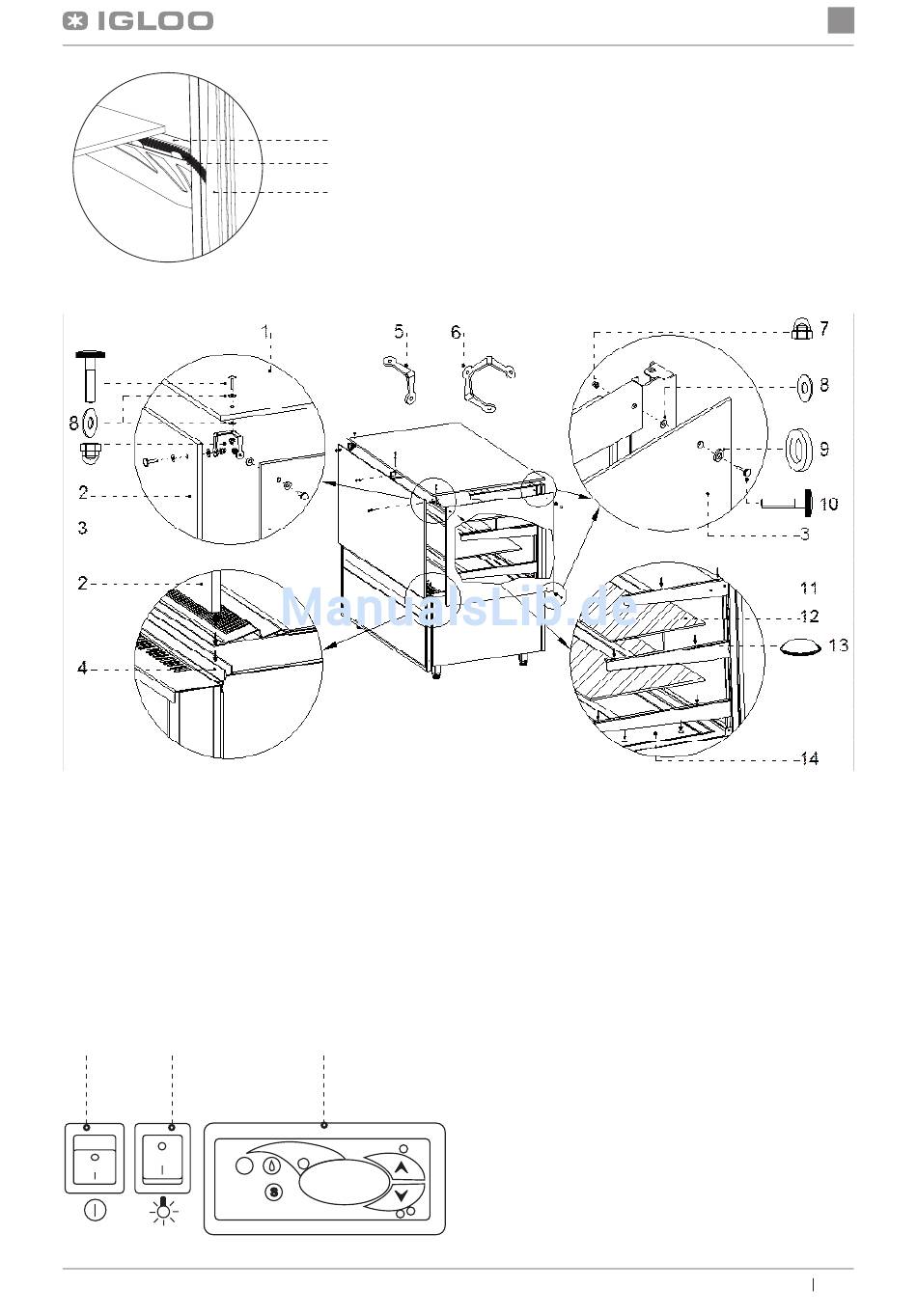

Fig. 5 Glass elements fixing

1 – Upper glass shelf
2 – Front glass pane
3 – Glass side
4 – Front glass pane grip
5 – Two sided angle for mounting of glass panes (to G.
Cube 1.3 – connecting the middle part of the front
glass pane with the upper glass shelf)
6 – Three-sided angle for mounting of glass panes (for
connecting the front glass pane with the glass side)
1 2
www.igloo.pl

Fig. 4 Hook height control

1 – Hook
1
2 – Pipe protecting the lamp conduit
3 – PVC profile concealing the vertical rack post
2
3
When changing the height position of the hook, draw the PVC profile
aside slightly and pull the protective pipe to the desired position. Next
remove the hook from the rack and place it in the suitable position and
at the suitable angle.
7 – Acorn nut of the screw
8 – Silicon pad
9 – Plasticizer pad
10 – Screw
11 – Inner rack
12 – Display glass shelves (of the rack)
13 – Bumper pads
14 – Inner surface
3

Fig. 6 Control panel

1 – Main switch (turns on/off the refrigerating unit)
2 – Lighting breaker switch
3 – Thermostat panel (temperature control)
(details concerning operation can be found in
Chapter No. 7 page 21 or 22)
User manual GASTROLINE CUBE
en
15
