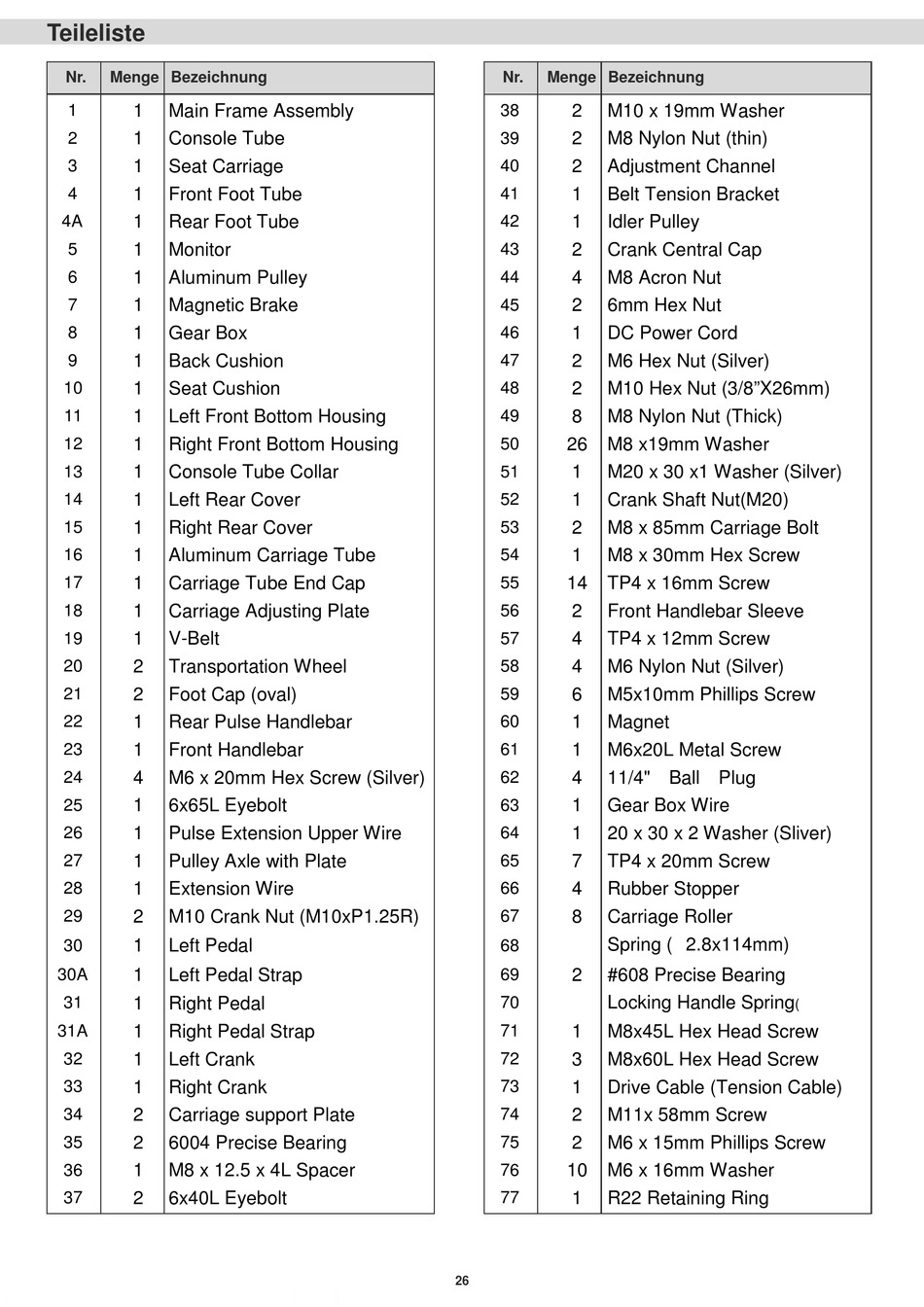

Teileliste
Nr.
Menge Bezeichnung
1
1
Main Frame Assembly
2
1
Console Tube
3
1
Seat Carriage
4
1
Front Foot Tube
4A
1
Rear Foot Tube
5
1
Monitor
6
1
Aluminum Pulley
7
1
Magnetic Brake
8
1
Gear Box
9
1
Back Cushion
10
1
Seat Cushion
11
1
Left Front Bottom Housing
1
Right Front Bottom Housing
12
13
1
Console Tube Collar
1
Left Rear Cover
14
15
1
Right Rear Cover
16
1
Aluminum Carriage Tube
17
1
Carriage Tube End Cap
18
1
Carriage Adjusting Plate
1
V-Belt
19
20
2
Transportation Wheel
2
Foot Cap (oval)
21
22
1
Rear Pulse Handlebar
23
1
Front Handlebar
24
4
M6 x 20mm Hex Screw (Silver)
25
1
6x65L Eyebolt
26
1
Pulse Extension Upper Wire
27
1
Pulley Axle with Plate
1
Extension Wire
28
29
2
M10 Crank Nut (M10xP1.25R)
30
1
Left Pedal
30A
1
Left Pedal Strap
31
1
Right Pedal
31A
1
Right Pedal Strap
32
1
Left Crank
33
1
Right Crank
34
2
Carriage support Plate
2
6004 Precise Bearing
35
36
1
M8 x 12.5 x 4L Spacer
2
6x40L Eyebolt
37
Nr.
Menge Bezeichnung
38
2
M10 x 19mm Washer
39
2
M8 Nylon Nut (thin)
40
2
Adjustment Channel
41
1
Belt Tension Bracket
42
1
Idler Pulley
43
2
Crank Central Cap
44
4
M8 Acron Nut
45
2
6mm Hex Nut
46
1
DC Power Cord
47
2
M6 Hex Nut (Silver)
48
2
M10 Hex Nut (3/8"X26mm)
49
8
M8 Nylon Nut (Thick)
26
M8 x19mm Washer
50
51
1
M20 x 30 x1 Washer (Silver)
1
Crank Shaft Nut(M20)
52
53
2
M8 x 85mm Carriage Bolt
54
1
M8 x 30mm Hex Screw
55
14
TP4 x 16mm Screw
56
2
Front Handlebar Sleeve
4
TP4 x 12mm Screw
57
58
4
M6 Nylon Nut (Silver)
6
M5x10mm Phillips Screw
59
60
1
Magnet
61
1
M6x20L Metal Screw
62
4
11/4" Ball Plug
63
1
Gear Box Wire
64
1
20 x 30 x 2 Washer (Sliver)
65
7
TP4 x 20mm Screw
4
Rubber Stopper
66
67
8
Carriage Roller
Spring (ψ2.8x114mm )
68
69
2
#608 Precise Bearing
70
Locking Handle Spring
71
1
M8x45L Hex Head Screw
72
3
M8x60L Hex Head Screw
73
1
Drive Cable (Tension Cable)
74
2
M11x 58mm Screw
2
M6 x 15mm Phillips Screw
75
76
10
M6 x 16mm Washer
1
R22 Retaining Ring
77
26
(
