Teileliste - Maxxus BX 7.0 R Bedienungsanleitung

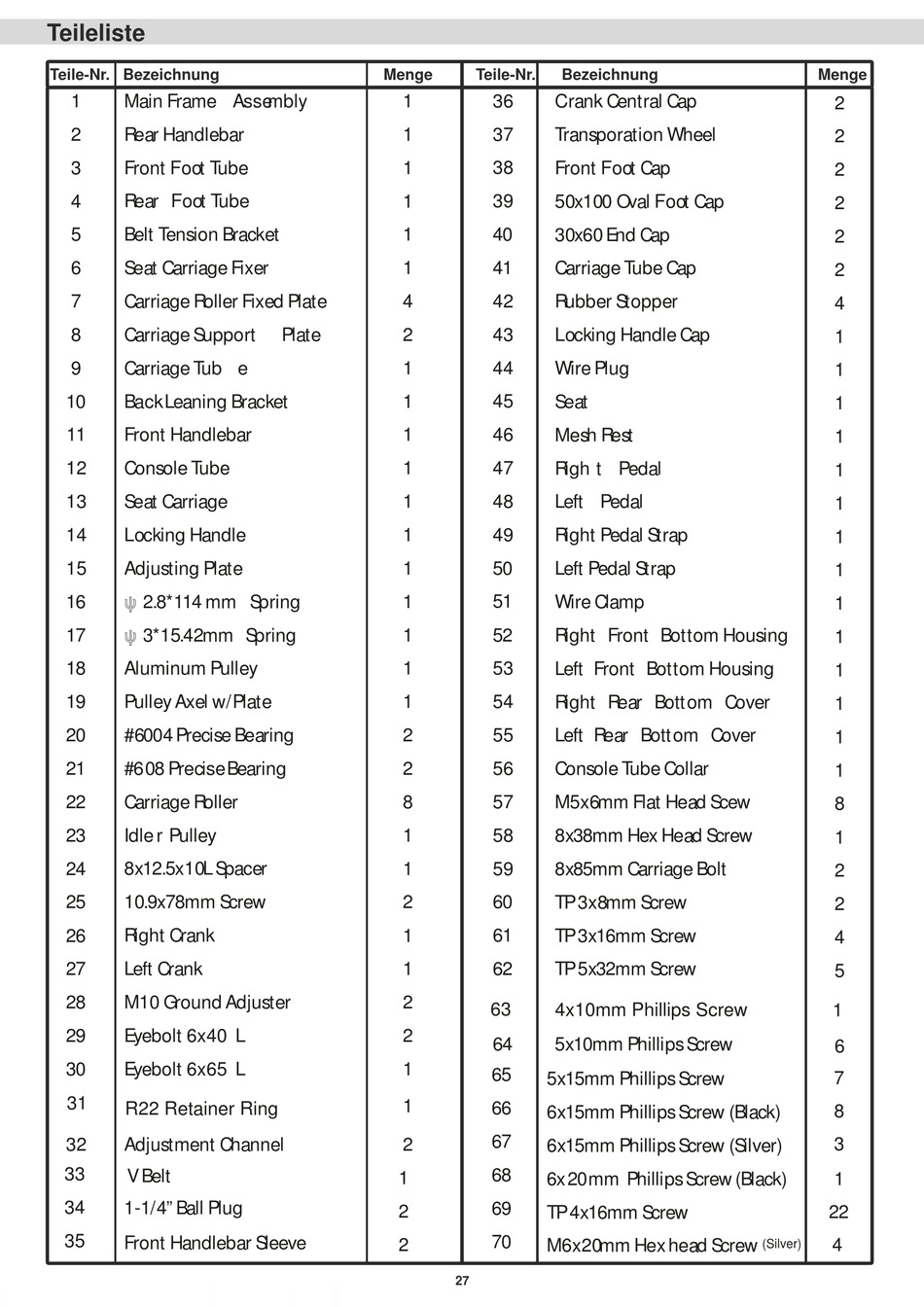

Teileliste

Teile-Nr. Bezeichnung
1 Main Frame Asse mbly
2 Rear Handlebar
3 Front Foot Tube
4 Rear Foot Tube
5 Belt Tension Bracket
6 Seat Carriage Fixer
7 Carriage Roller Fixed Plate
8 Carriage Support
9 Carriage Tub e
10 Back Leaning Bracket
11 Front Handlebar
12 Console Tube
13 Seat Carriage
14 Locking Handle
15 Adjusting Plate
16 ψ 2.8*114 mm Spring
17 ψ 3*15.42mm Spring
18 Aluminum Pulley
19 Pulley Axel w/Plate
20 #6004 Precise Bearing
21 #608 Precise Bearing
22 Carriage Roller
23 I dle r Pulley
24 8x12.5x10L Spacer
25 10.9x78mm Screw
26 Right Crank
27 Left Crank
28 M10 Ground Adjuster
29 Eyebolt 6x40 L
30 Eyebolt 6x65 L
31
R22 Retainer Ring
32 Adjustment Channel
33
V Belt
34
1-1/4" Ball Plug
35
Front Handlebar Sleeve
Menge
1
1
1
1
1
1
4
Plate 2
1
1
1
1
1
1
1
1
1
1
1
2
2
8
1
1
2
1
1
2
2
1
1
2
1
2
2
27
Teile-Nr. Bezeichnung
36 Crank Central Cap
37 Transporation Wheel
38
Front Foot Cap
39 50x100 Oval Foot Cap
40 30x60 End Cap
41
Carriage Tube Cap
42 Rubber Stopper
43 Locking Handle Cap
44 Wire Plug
45 Seat
46 Mesh Rest
47 Righ t Pedal
48 Left Pedal
49 Right Pedal Strap
50 Left Pedal Strap
51
Wire Clamp
52 Right Front Bottom Housing
53 Left Front Bottom Housing
54
Right Rear Bott om Cover
55 Left Rear Bott om Cover
56 Console Tube Collar
57 M5x6mm Flat Head Scew
58 8x38mm Hex Head Screw
59 8x85mm Carriage Bolt
60 TP 3x8mm Screw
61 TP 3x16mm Screw
62 TP 5x32mm Screw
63 4x10mm Phillips Screw
64
5x10mm Phillips Screw
65
5x15mm Phillips Screw
66
6x15mm Phillips Screw (Black)
67
6x15mm Phillips Screw (Silver)
68
6x 20mm Phillips Screw (Black)
69
TP 4x16mm Screw
70
M6x20mm Hex head Screw
Menge
2
2
2
2
2
2
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
8
1
2
2
4
5
1
6
7
8
3
1
22
4
(Silver)
