Matrix 310.550.320 Originalbetriebsanleitung Seite 53

4.3 Combined gasoline grass trimmer, pole saw, brush cutter: brush cutter
INJURY WARNING: Always wear protective gloves when working on or around cutting
tools.
Part 3:
15
11
28
15
A8

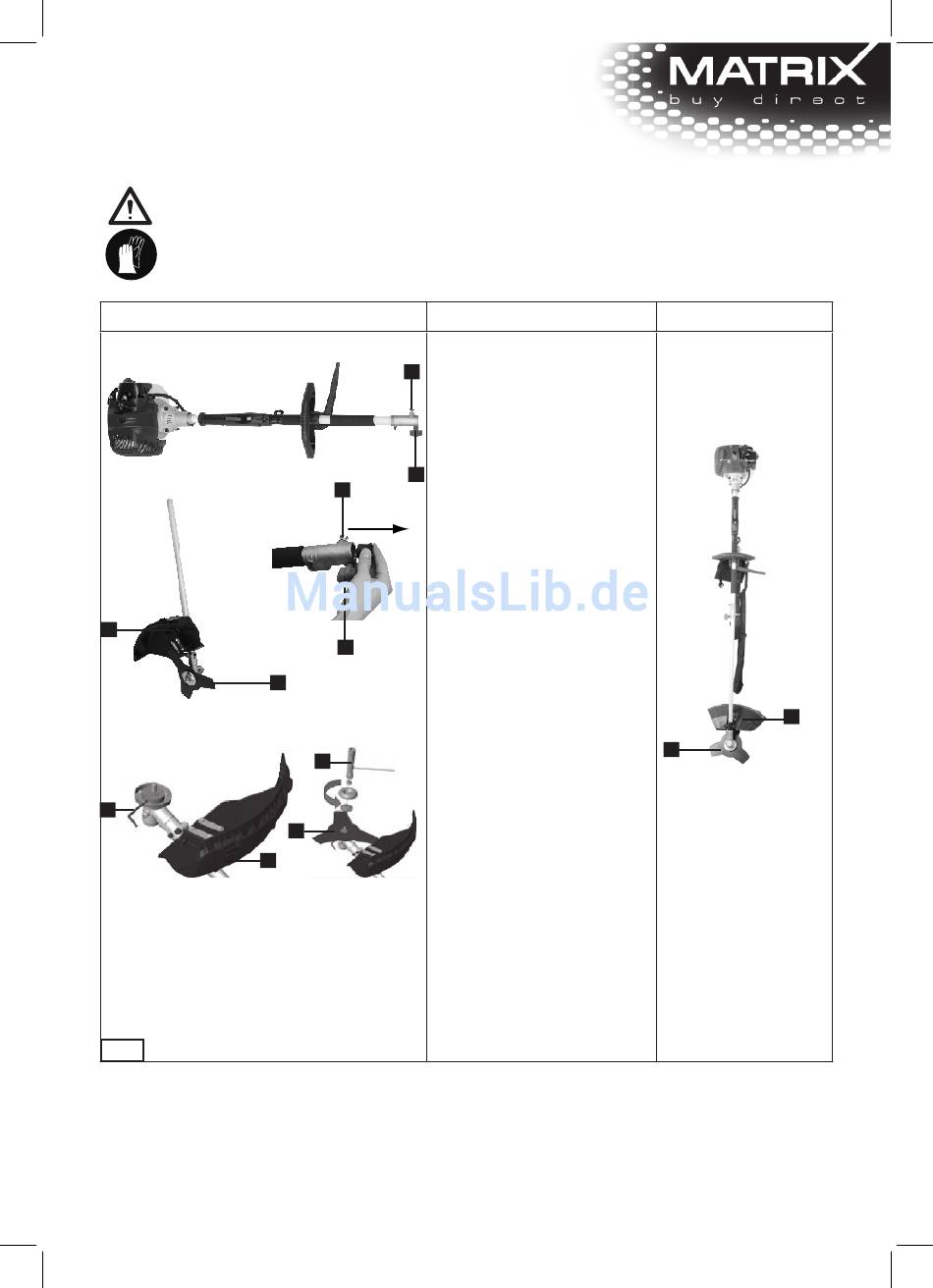

Mounting:
To use the petrol cutting blade
as an engine powered trimmer,
26
the proper guard and cutting
blade must be attached.
- Attach the cutter protection
(15) with the 4 screws on the
holder on the shaft (if not
10
already fitted). The protective
26
cover with knife should not be
attached to the cutting guard.
- Install as shown in Figures 1-6
meter (11).
- Use a screwdriver, or the
supplied Allen key (28) to fix
the shaft of the petrol cutting
blade at the intended location
10
by a locknut.
- Turn the line spool (18) in a
clockwise direction from the
shaft (if already installed).
- keep the support flange (17)
29
on the shaft.
- Place the brush cutting blade
(11) to the support flange.
- Mount the clamping flange
11
(13) and the retaining plate (16)
(note orientation) on the brush
cutter (11).
15
11
53
