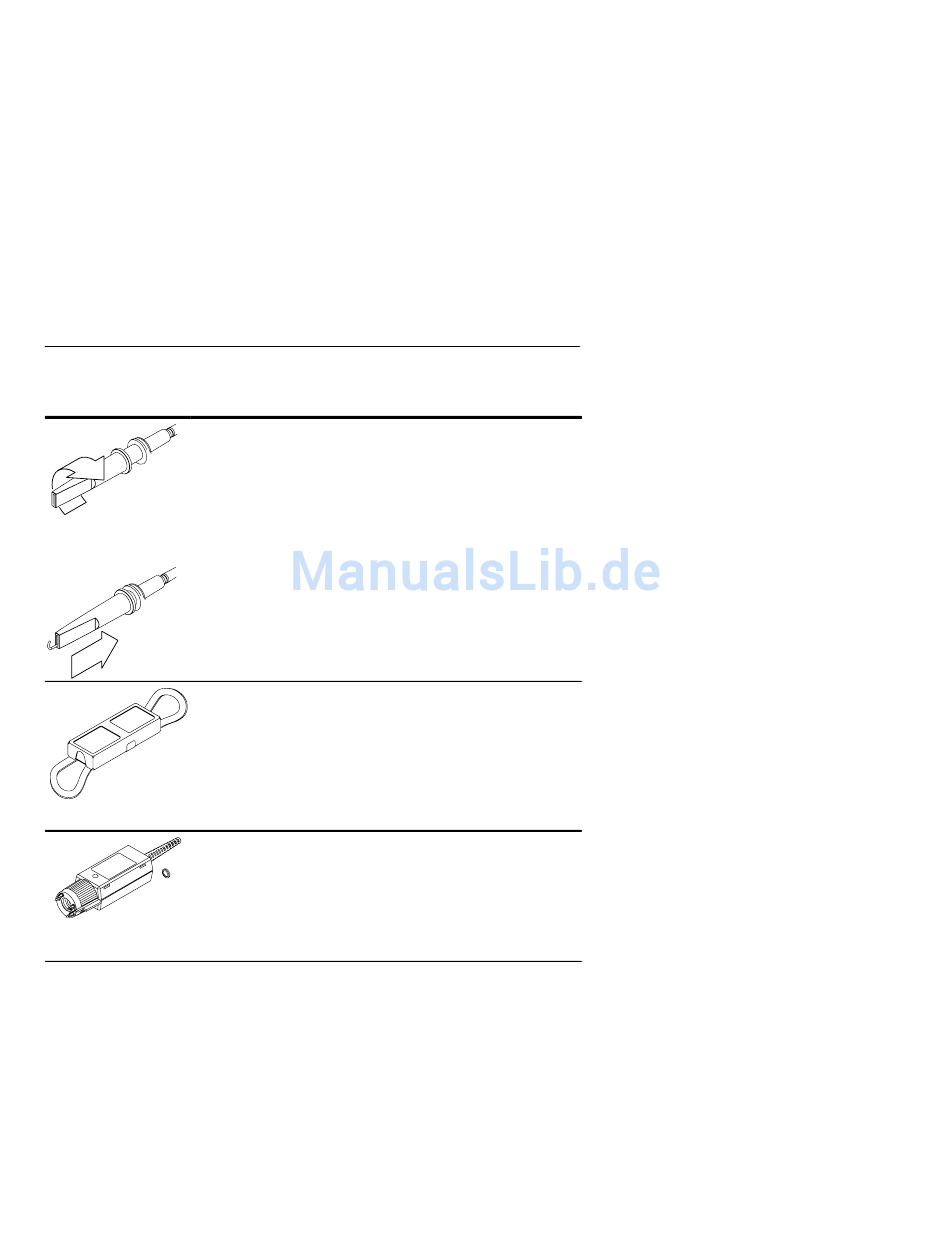

Large Hook Tip.
with larger components such as the bolt terminals and
bus bars typically found in power distribution equip-
ment. The hook tip is rated for the maximum input
voltage of the P5210 probe.
Install the large hook tip by sliding it over the body of
the probe and screwing it onto the threaded probe tip.
To use the tip, hold the probe body and pull the tip shield
back. Hook the tip onto the circuit and release the shield.
Soft Case.
you to hang the probe near the point of measurement.
Install or remove the case by opening the access flaps
on the back.
When not in use, coil the leads and secure them with
the strap on the back. Use one of the loops to hang the
probe on a storage hook or utility belt.
Color Marker Bands.
probe, the bands enable you to quickly distinguish
between probes and the channels they are connected to.
To use the marker bands, attach one band near the
probe head and the matching band near the compensa-
tion box.
For a complete list of replaceable accessories and part ordering
information, refer to the service manual that accompanies this
product.
P5210 Instructions
Use the large hook tip when working
The soft case protects the probe and allows
When you are using more than one
Getting Started
9
