4
Data Receiver IntelliPower
Confirm one junction box is installed per Data Receiver IntelliPower.
Confirmez qu'un boîtier de connexion par Data Receiver IntelliPower est installé.
Stellen Sie sicher, dass pro Data Receiver IntelliPower eine Abzweigdose installiert ist.
Confirme que se ha instalado una caja de conexiones por cada Data Receiver IntelliPower.
Verificare che sia installata una scatola di giunzione per Data Receiver IntelliPower.
Controleer of per Data Receiver IntelliPower één kabeldoos is geïnstalleerd.
Data Receiver IntelliPower 1 台につき、 ジャンクションボックスが 1 個設置されていることを確認し
ます。
确认每个 Data Receiver IntelliPower 均已安装一个接线盒。
1.75 in
(44.5 mm)
3.5 in
(89 mm)
Total wiring volume: 27 cu in
2.6 in
4.6 in
(116 mm)

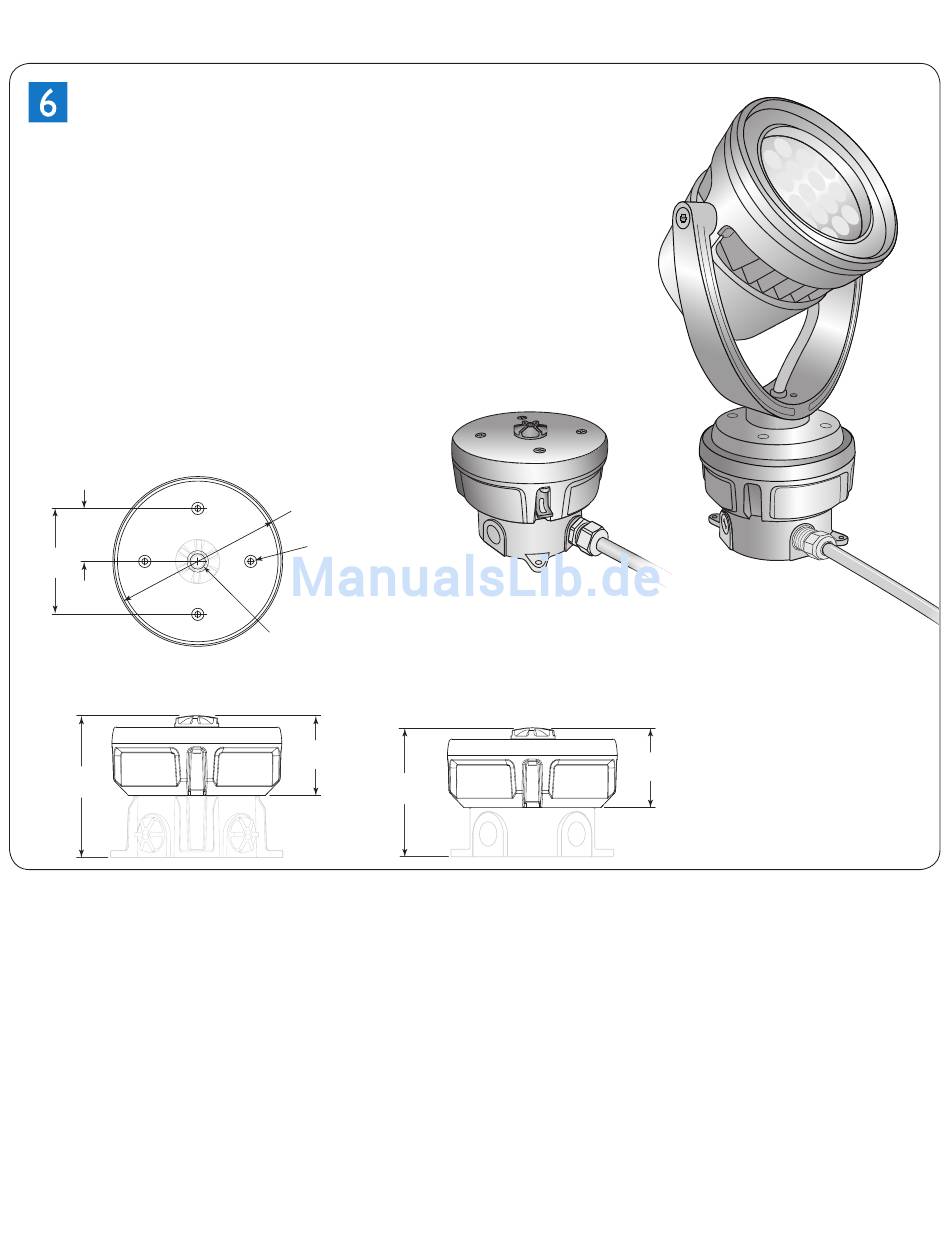

Installation Instructions
Ø 5.6 in
(142 mm)
Ø .16 in
(4 mm)
Clearance hole for
8-32 or 10-24 Screws.
Standard 4 hole
junction box hole pattern
Ø .512 in
(13 mm)
Clearance hole for
fixture cable pass through
2.6 in
(65 mm)
4.2 in
(106 mm)
Philips Color Kinetics
Wiring Compartment
Total wiring volume: approx. 23 cu in
(varies depending on junction box used)
Example standard
US 4 in round
junction box
1.75 in
(44.5 mm)
3.5 in
(89 mm)
Total wiring volume: 27 cu in
2.6 in
(65 mm)
4.6 in
(116 mm)
Ø 5.6 in
(142 mm)
Ø .16 in
(4 mm)
Clearance hole f
8-32 or 10-24 Scre
Standard 4 hol
junction box hole p
Ø .512 in
(13 mm)
Clearance hole for
fixture cable pass through
2.6 in
(65 mm)
Philips Color Kinet
Wiring Compartme
