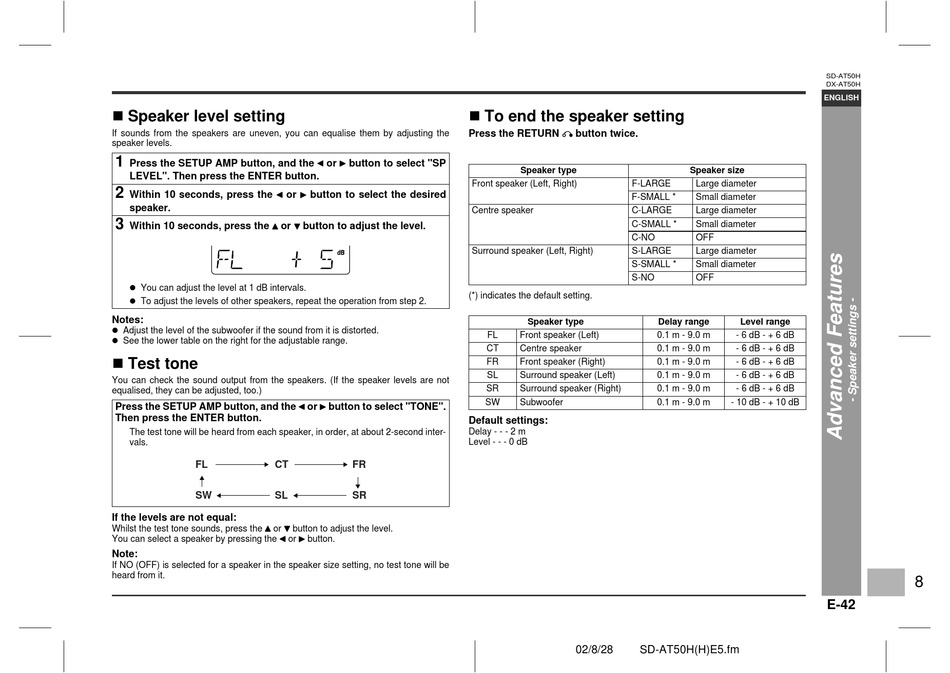

! Speaker level setting
If sounds from the speakers are uneven, you can equalise them by adjusting the
speaker levels.
1
Press the SETUP AMP button, and the
LEVEL". Then press the ENTER button.
2
Within 10 seconds, press the or
speaker.
3
Within 10 seconds, press the or
" You can adjust the level at 1 dB intervals.
" To adjust the levels of other speakers, repeat the operation from step 2.
Notes:
" Adjust the level of the subwoofer if the sound from it is distorted.
" See the lower table on the right for the adjustable range.
! Test tone
You can check the sound output from the speakers. (If the speaker levels are not
equalised, they can be adjusted, too.)
Press the SETUP AMP button, and the
Then press the ENTER button.
The test tone will be heard from each speaker, in order, at about 2-second inter-
vals.
FL CT
SW SL
If the levels are not equal:
Whilst the test tone sounds, press the or
You can select a speaker by pressing the or
Note:
If NO (OFF) is selected for a speaker in the speaker size setting, no test tone will be
heard from it.
! To end the speaker setting
Press the RETURN
or button to select "SP
Front speaker (Left, Right)
button to select the desired
Centre speaker
button to adjust the level.
Surround speaker (Left, Right)
(*) indicates the default setting.
or button to select "TONE".
Default settings:
Delay - - - 2 m
Level - - - 0 dB
FR
SR
button to adjust the level.
button.
button twice.
Speaker type
F-LARGE
F-SMALL *
C-LARGE
C-SMALL *
C-NO
S-LARGE
S-SMALL *
S-NO
Speaker type Delay range
FL Front speaker (Left) 0.1 m - 9.0 m
CT Centre speaker 0.1 m - 9.0 m
FR Front speaker (Right) 0.1 m - 9.0 m
SL Surround speaker (Left) 0.1 m - 9.0 m
SR Surround speaker (Right) 0.1 m - 9.0 m
SW Subwoofer 0.1 m - 9.0 m
02/8/28 SD-AT50H(H)E5.fm
SD-AT50H
DX-AT50H
ENGLISH
Speaker size
Large diameter
Small diameter
Large diameter
Small diameter
OFF
Large diameter
Small diameter
OFF
Level range
- 6 dB - + 6 dB
- 6 dB - + 6 dB
- 6 dB - + 6 dB
- 6 dB - + 6 dB
- 6 dB - + 6 dB
- 10 dB - + 10 dB
E-42
